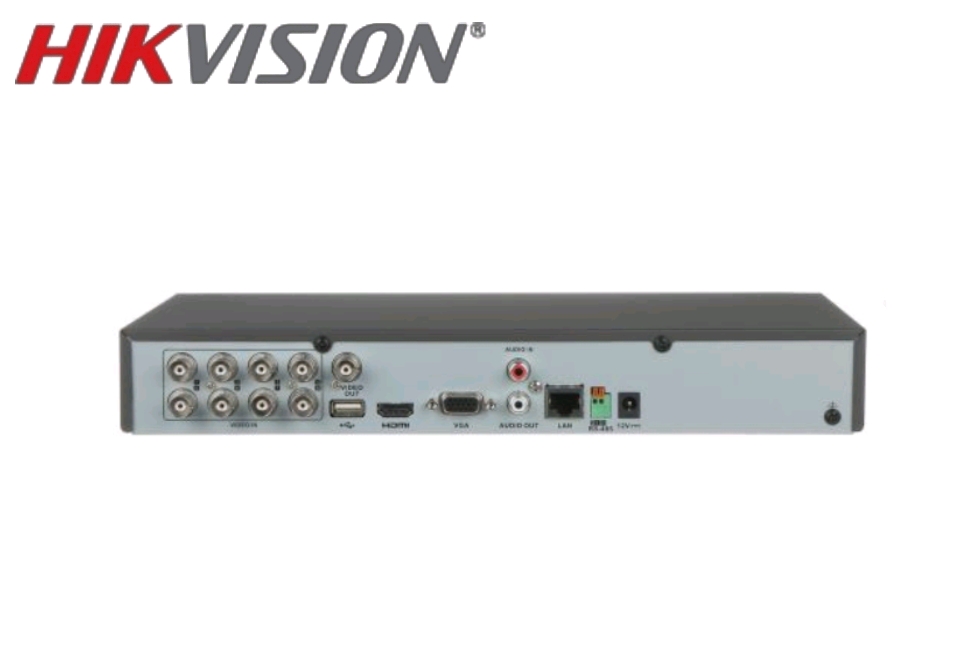

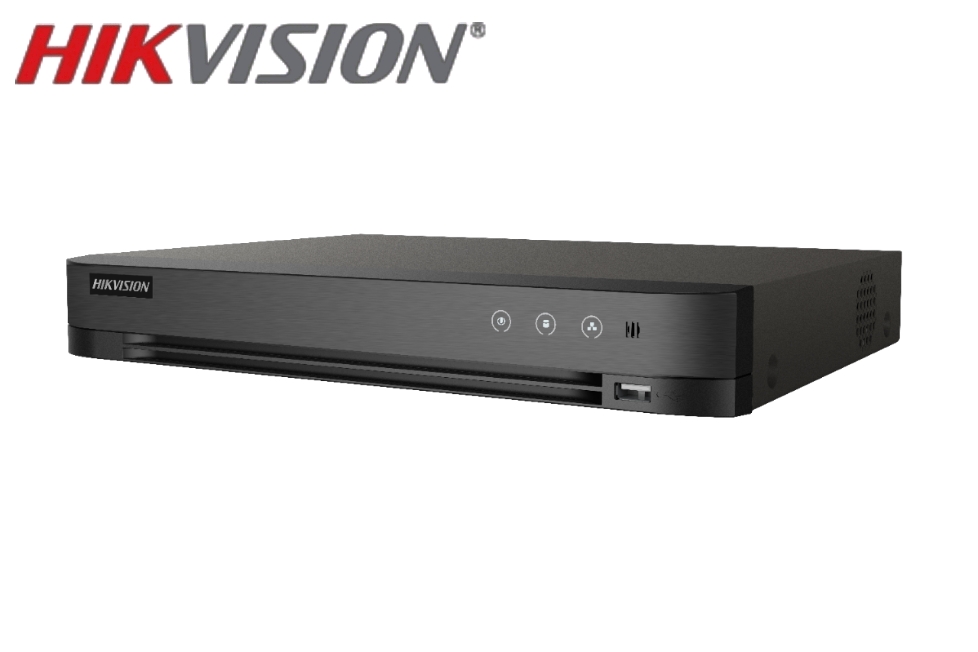

HIKVISION 8CH TURBO HD 4MP DVR DS-7208HQHI-M1/S ACUSENS
Add to Wishlist- AcuSense Technology
- H.265 video compression
- Support Turbo HD video input
- High definition real-time recording
- Easy event search during playback
- HDMI output at up to 4K resolution
- Live-view from smart device or Internet
- Two-way audio
| • | Recording Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N) Video Bitrate32 Kbps to 6 Mbps Dual-Stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps |
|---|---|
| • | Video And Audio IP Video Input 2-ch (up to 10-ch) Up to 6 MP resolution Enhanced IP mode on: 4-ch (up to 12-ch), each up to 4 Mbps Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input8-ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output CVBS Input PAL/NTSC CVBS Output 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480 Synchronous Playback8-ch HDTVI Input 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS-7216HQHI-M1/S. AHD Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps HDCVI Input4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps Audio Output1-ch, RCA (Linear, 1 K?) Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)?8-ch via coaxial cable Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input) |
| • | Network Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connection64 Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface |
| • | Auxiliary Interface SATA1 SATA interface Capacity Up to 10 TB capacity for each disk Serial InterfaceRS-485 (half-duplex) USB Interface2 × USB 2.0 Alarm In/Out N/A |
| • | General Power Supply12 VDC Consumption? 18 W Working Temperature-10 °C to +55 °C (+14 °F to +131 °F) Working Humidity10% to 90% Dimension (W × D × H)315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) ? 1.78 kg (3.9 lb) |
first last –
Wow great product
