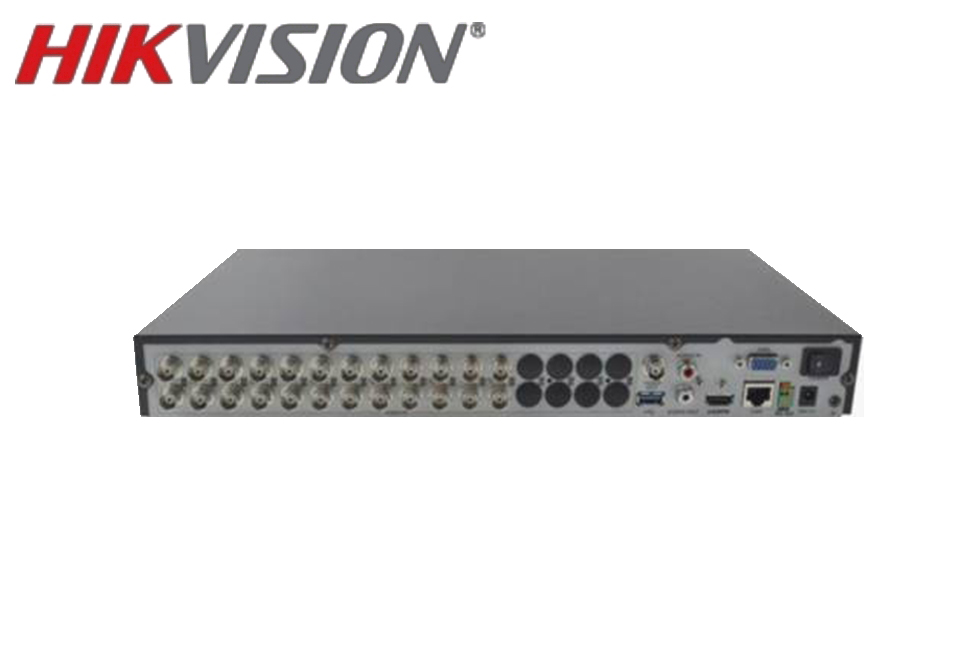

HIKVISION 24CH TURBO HD 2MP DVR DS-7224HGHI-K2
Add to Wishlist- 24 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p lite @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 18 network cameras can be connected

• | Recording • Encoding Resolution Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N) • Video Bit Rate32 Kbps to 4 Mbps • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264 • Dual Stream Support • Stream Type Video, Video & Audio • Audio Compression G.711u • Audio Bit Rate 64 Kbps |
---|---|
• | Video And Audio • Audio Input 1-ch, RCA (2.0 Vp-p, 1 K?) • Audio Output 1-ch, RCA (Linear, 1 K?) • Synchronous Playback 16-ch • IP Video Input 2-ch (up to 18-ch);Up to 5 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras • HDTVI Input 1080p25, 1080p30, 720p25, 720p30 • HDCVI Input 1080p25, 1080p30, 720p25, 720p30 • CVBS Input PAL/NTSC • Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input) • Analog Video Input 24-ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection • AHD Input 1080p25, 1080p30, 720p25, 720p30 • CVBS Output 1-ch, BNC (1.0 Vp-p, 75 ?) • HDMI/VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;HDMI/VGA simultaneous output |
• | Network • Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF • Remote Connections128 • Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
• | Auxiliary Interface • Capacity Up to 10 TB capacity for each disk • Serial Interface N/A • USB Interface 1 × USB 2.0? 1 × USB 3.0 • Alarm In/Out N/A • SATA2 SATA interface |
• | General • Consumption(Without HDD)? 10 W • Working Humidity10% to 90% • Power Supply12 VDC • Working Temperature-10 °C to +55 °C (+14 °F to +131 °F) • Dimensions(W × D × H)380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch) • Weights (Without HDD)? 2.2 kg (4.9 lb) |
