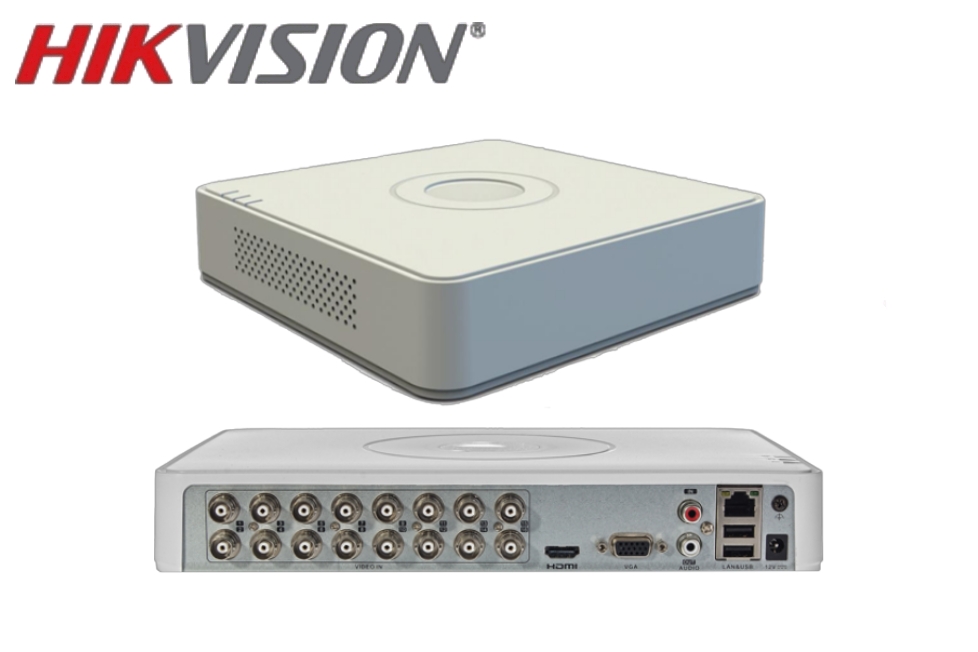

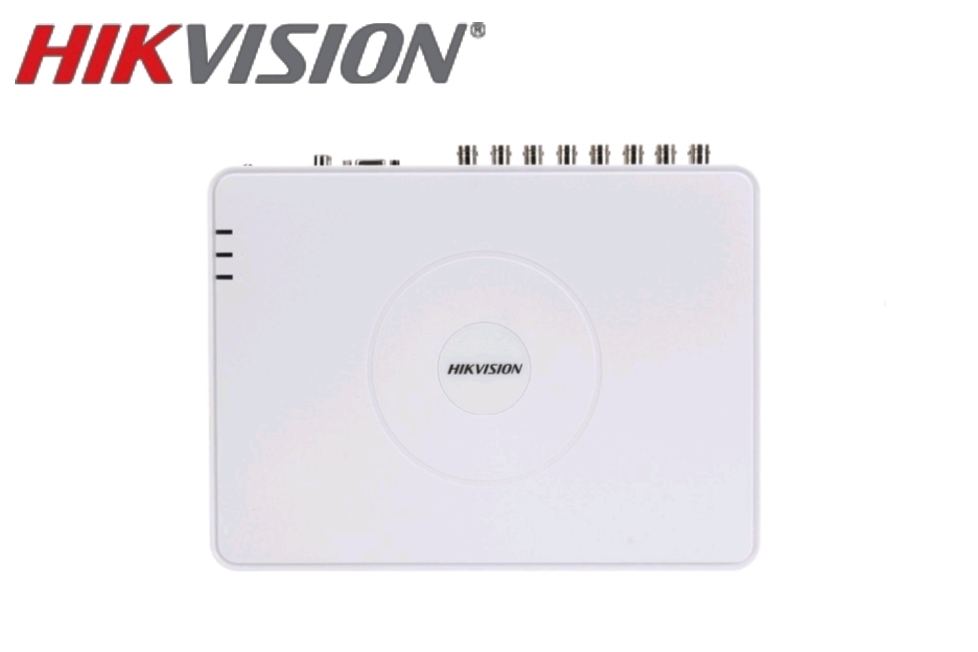

HIKVISION 16CH TURBO HD 2MP DVR DS-7116HGHI-K1
Add to Wishlist- 16 channels and 1 HDD mini size DVR
- H.265 Pro+ / H.265 Pro video compression
- Encoding ability up to 1080p lite @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 18 network cameras can be connected
| • | Recording Encoding Resolution1080p lite/720p/VGA/WD1/4CIF/CIF Video Bit Rate32 Kbps to 4 Mbps Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Dual Stream Support Stream Type Video, Video & Audio Audio CompressionG.711u Audio Bit Rate64 Kbps |
|---|---|
| • | Video And Audio Audio Input1-ch RCA (2.0 Vp-p, 1 K?), and 16-ch via coaxial cable Audio Output1-ch, RCA (Linear, 1 K?) Synchronous Playback16-ch IP Video Input2-ch (up to 18-ch);Up to 5MP resolution; Support H.265+/H.265/H.264+/H.264 IP cameras HDTVI Input1080p25, 1080p30, 720p25, 720p30 HDCVI Input1080p25, 1080p30, 720p25, 720p30 CVBS Input PAL/NTSC Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input) Analog Video Input16-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection AHD Input1080p25, 1080p30, 720p25, 720p30 CVBS Output N/A HDMI/VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| • | Network Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Remote Connections128 Network Interface1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| • | Auxiliary Interface Capacity Up to 10 TB capacity for each disk Serial Interface N/A USB Interface Rear panel: 2 × USB 2.0 Alarm In/Out N/A SATA1 SATA interface |
| • | General Consumption(Without HDD)? 7 W Working Humidity10% to 90% Power Supply12 VDC, 1.6 A Working Temperature-10 °C to +55 °C (+14 °F to +131 °F) Dimensions(W × D × H)285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch) Weights (Without HDD)? 1.8 kg (4.0 lb) |
