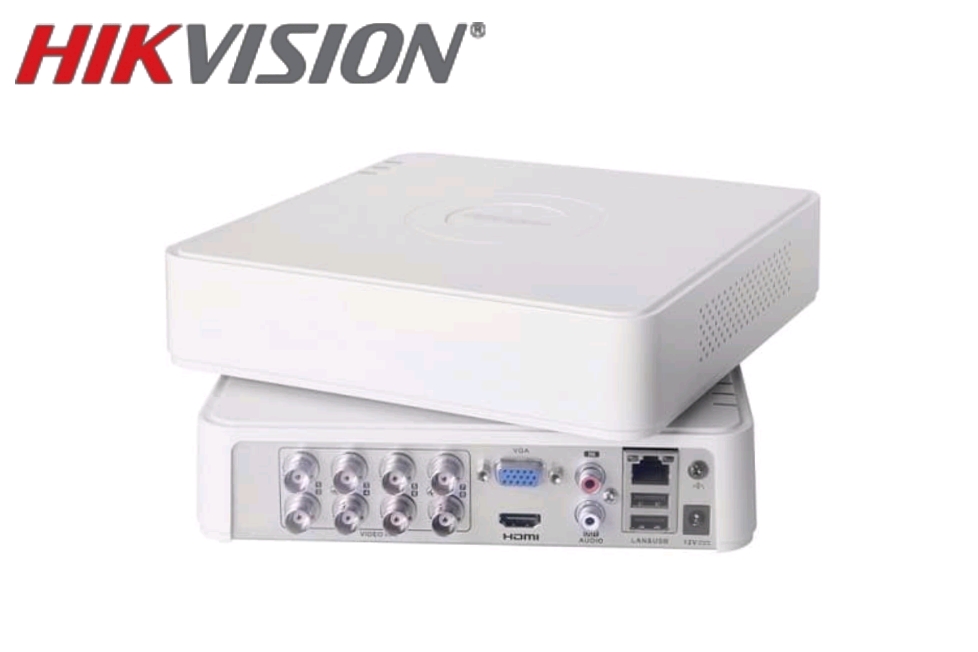

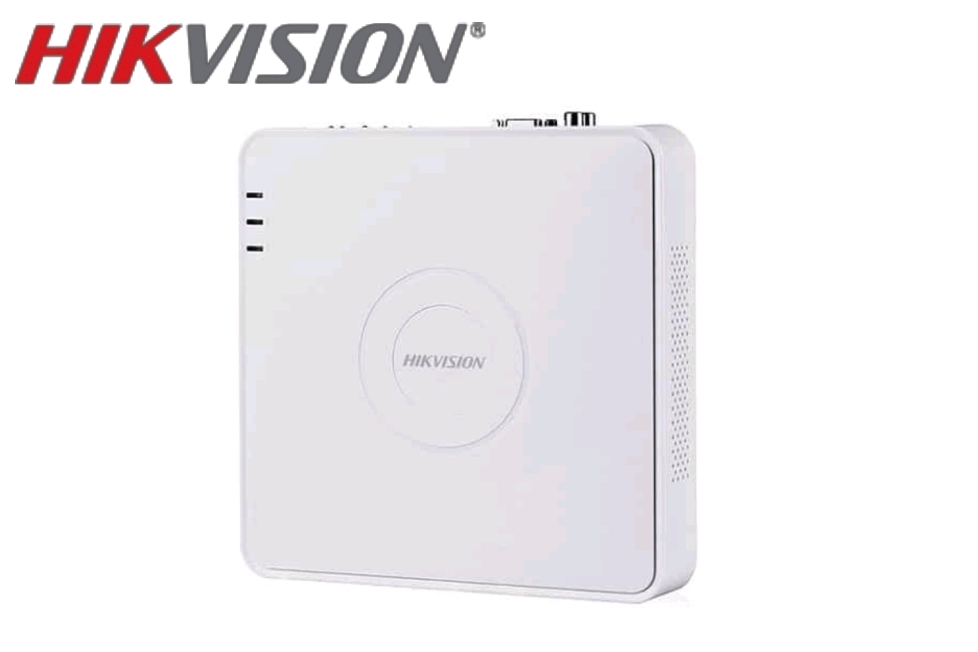

HIKVISION 8CH TURBO HD 4MP DVR DS-7108HQHI-K1
Add to Wishlist- 8 channels and 1 HDD mini size DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 12 network cameras can be connected
| • | Recording Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution When 1080p Lite mode is not enabled: ,4 MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF;, When 1080p Lite mode is enabled: ,4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF Frame Rate Main stream: When 1080p Lite mode not enabled: ,For 4 MP stream access:,4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) ,For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps,For 1080p stream access: ,1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled: ,4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF@12fps; CIF@25fps (P)/30fps (N) Video Bit Rate 32 Kbps to 6 Mbps Dual Stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bit Rate 64 Kbps |
|---|---|
| • | Video And Audio IP Video Input4-ch (up to 12-ch) Up to 6 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input8-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI Input1080p25, 1080p30, 720p25, 720p30 CVBS Input Support Audio Input1-ch, RCA (2.0 Vp-p, 1 K?) Audio Output1-ch, RCA (Linear, 1 K?) Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input) Synchronous Playback8-ch HDTVI Input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60,*: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1. VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| • | Network Remote Connections64 Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network Interface1, RJ45 10M/101M self-adaptive Ethernet interface |
| • | Auxiliary Interface SATA1 SATA interface Capacity Up to 6 TB capacity for each disk Alarm In/Out N/A USB Interface Real panel: 2 × USB 2.0 |
| • | General Power Supply12 VDC Consumption (Without HDD)? 12 W Working Temperature-10 °C to +55 °C (+14 °F to +131 °F) Working Humidity10% to 90% Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) Weights (Without HDD)? 1 kg (2.2 lb) |
