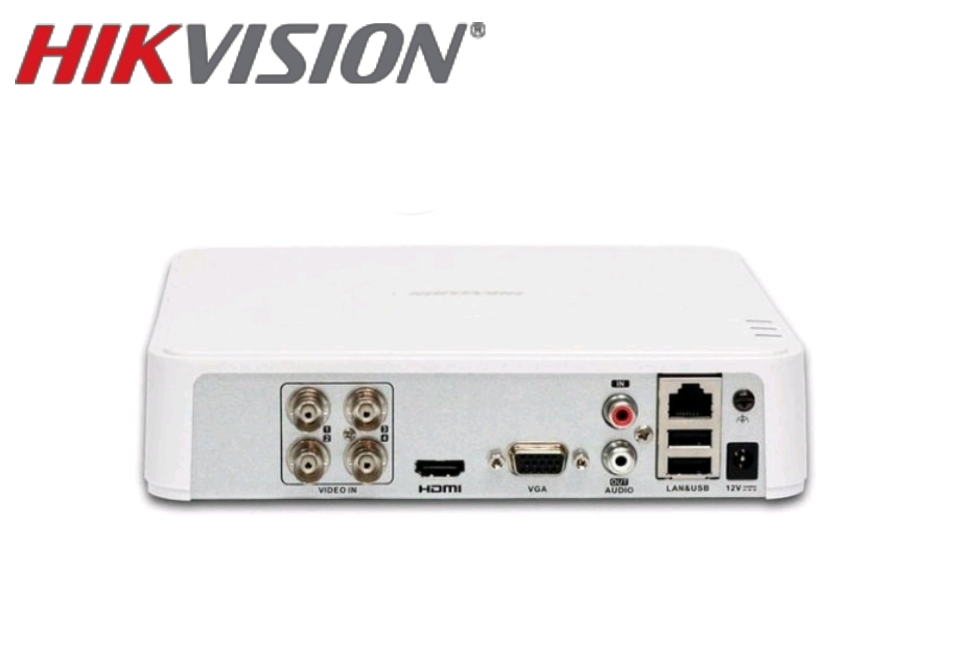

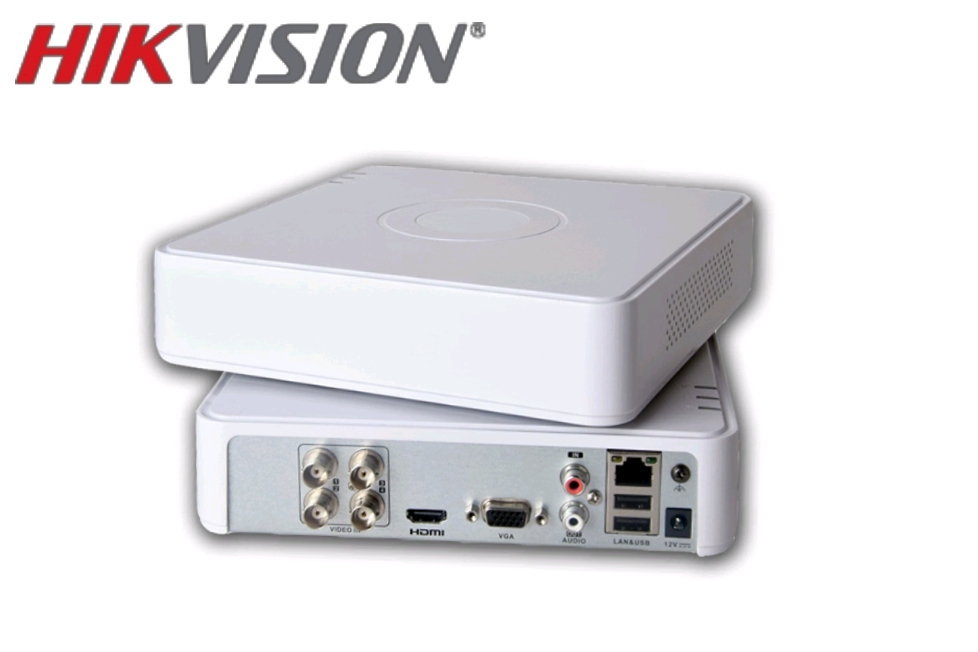

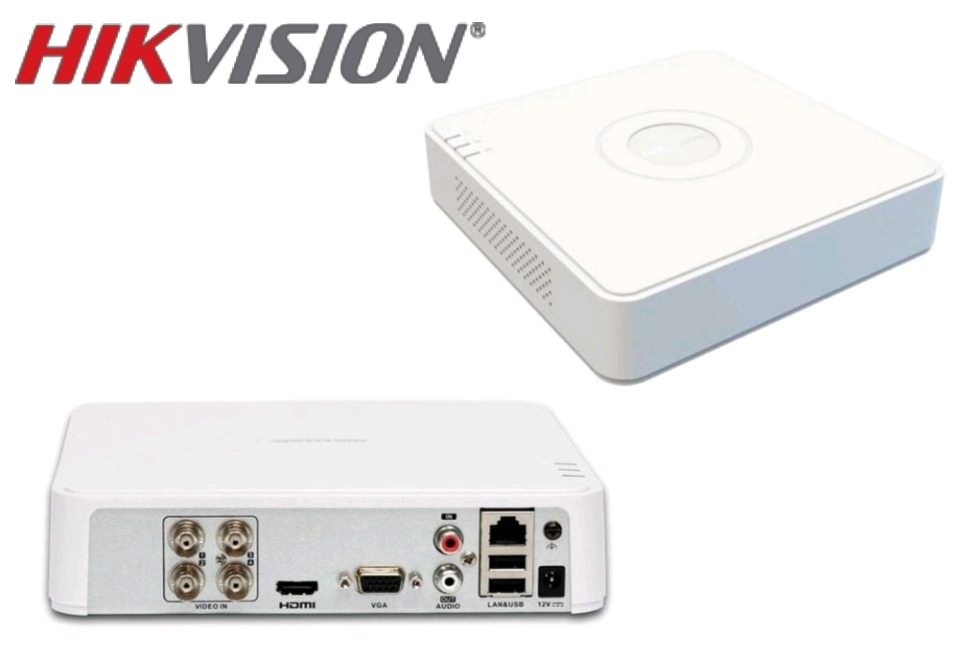

HIKVISION 4CH TURBO 2MP DVR DS-7104HGHI-F1
Add to Wishlist- 4 channels and 1 HDD mini size DVR
- H.264+ / H.264 video compression
- Encoding ability up to 1080p lite @ 25/30 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 5 network cameras can be connected;
| • | Recording Video CompressionH.264+/H.264 Encoding Resolution When 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF Frame Rate Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: 2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N) Video Bit Rate 32 Kbps to 4 Mbps Dual Stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bit Rate 64 Kbps |
|---|---|
| • | Video And Audio IP Video Input Up to 4-ch Up to 960p resolution Support H.264+/H.264 IP cameras Analog Video Input4-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection Turbo HD Input1080p25, 1080p30, 720p25, 720p30 AHD Input1080p25, 1080p30, 720p25, 720p30 HDCVI Input1080p25, 1080p30, 720p25, 720p30 CVBS Input Support Audio Input1-ch, RCA (2.0 Vp-p, 1 K?) Audio Output1-ch, RCA (Linear, 1 K?) Two-Way Audio Reuse the first audio input Synchronous Playback4-ch VGA/HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| • | Network Remote Connections32 Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface |
| • | Auxiliary Interface SATASATA Capacity Up to 6 TB capacity for each disk Alarm In/Out N/A USB Interface Rear panel: 2 × USB 2.0 |
| • | General Power Supply12 VDC Consumption (Without HDD)? 8 W Working Temperature-10 °C to 55 °C (14 °F to 131 °F) Working Humidity10% to 90% Dimensions (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) Weights (Without HDD)? 0.8 kg (1.8 lb) |
