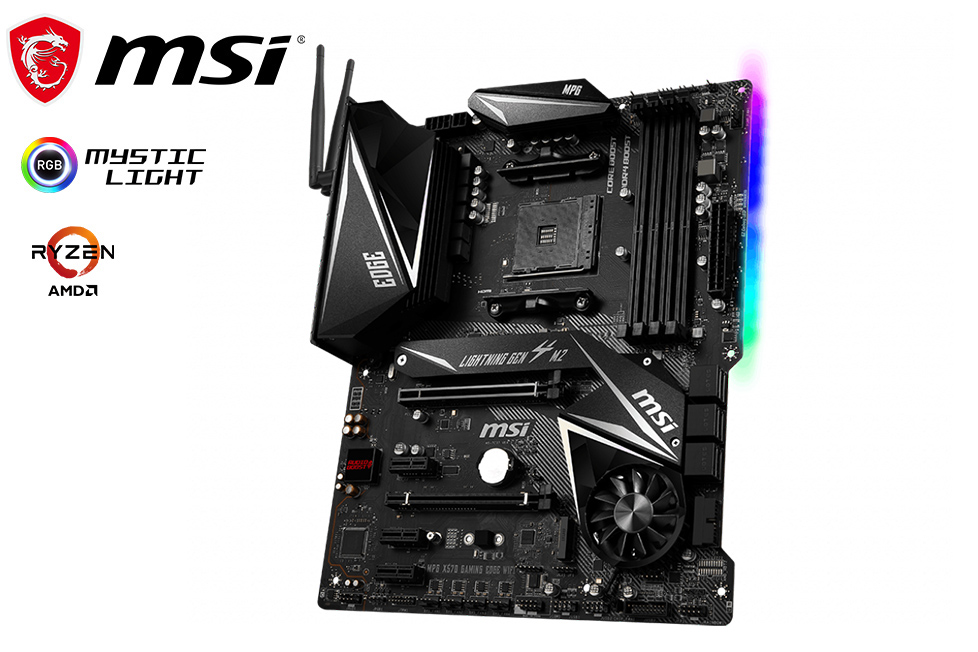

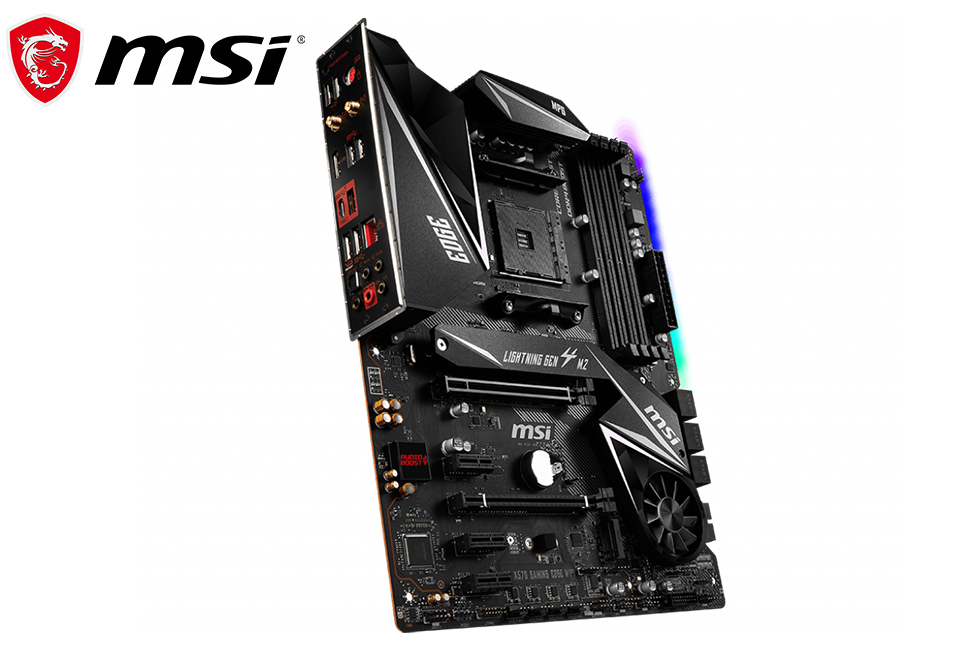

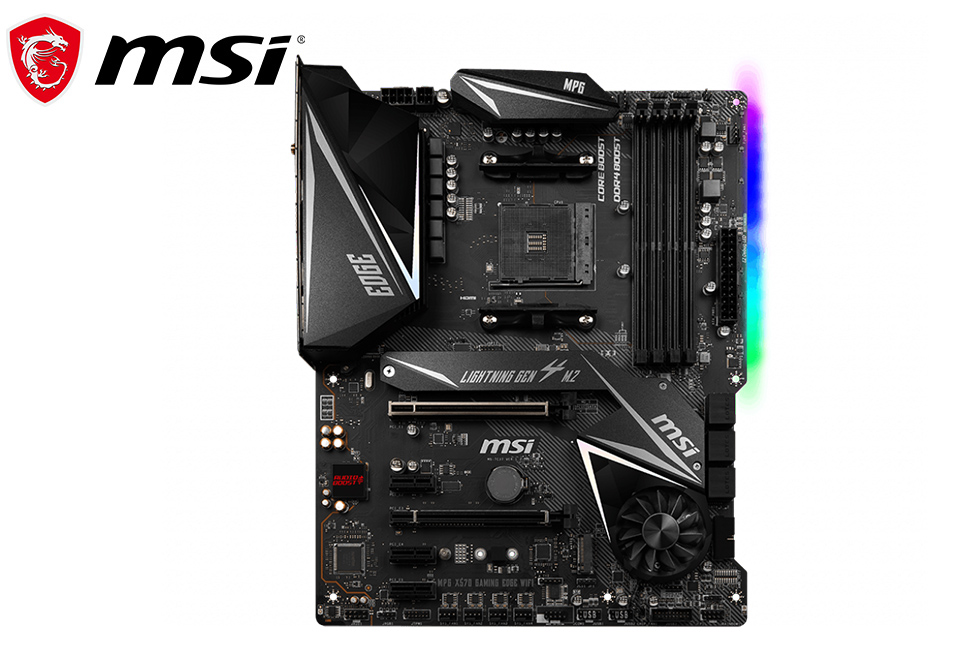

MSI MPG X570 GAMING EDGE WIFI MOTHER BOARD
Add to Wishlist- Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket
- Supports DDR4 Memory, up to 4400+(OC) MHz
- Lightning Fast Game experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.
- Set Core Power Free: Extended Heatsink Design, Core Boost, Digital PWM IC, 8+4 pin CPU power connector, Game Boost, DDR4 Boost
- MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip.
- AUDIO BOOST 4 with NAHIMIC 3: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE, AMBIENT LINK with user friendly user interface.

• | Frozr Heatsink Design Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers. |
---|---|
• | Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. |
• | Pre-installed I/O Shielding Better EMI protection and more convenience for installation |
• | Audio Boost 4 Isolated audio with a high quality audio processor for the most immersive gaming experience. |
• | Flash BIOS Button Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card. |
• | Core Boost With premium layout and fully digital power design to support more cores and provide better performance. |
• | M.2 Shield FROZR Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. |
• | Lightning Gen4 Solution The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed. |
Description
MSI MPG X570 GAMING EDGE WIFI MOTHER BOARD
General
Product Code | |
---|---|
Brand | |
Model | |
Color |
Technical Specs
• | Model Name MPG X570 GAMING EDGE WIFI |
---|---|
• | CPU Support Supports 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors |
• | CPU Socket Socket AM4 |
• | Chipset AMD® X570 Chipset |
• | Graphics Interface 2 x PCI-E 4.0 x16 slots Supports 2-Way AMD® CrossFire™ Technology |
• | Display Interface HDMI – Requires Processor Graphics |
• | Memory Support 4 DIMMs, Dual Channel DDR4 2666 MHz |
• | Expansion Slots 3x PCIe 3.0 x1 slots |
• | Storage 1 x Lightning M.2 slot (Gen4 x4) + 1 x Turbo M.2 slot (Gen3 x4) 6 x SATA 6Gb/s |

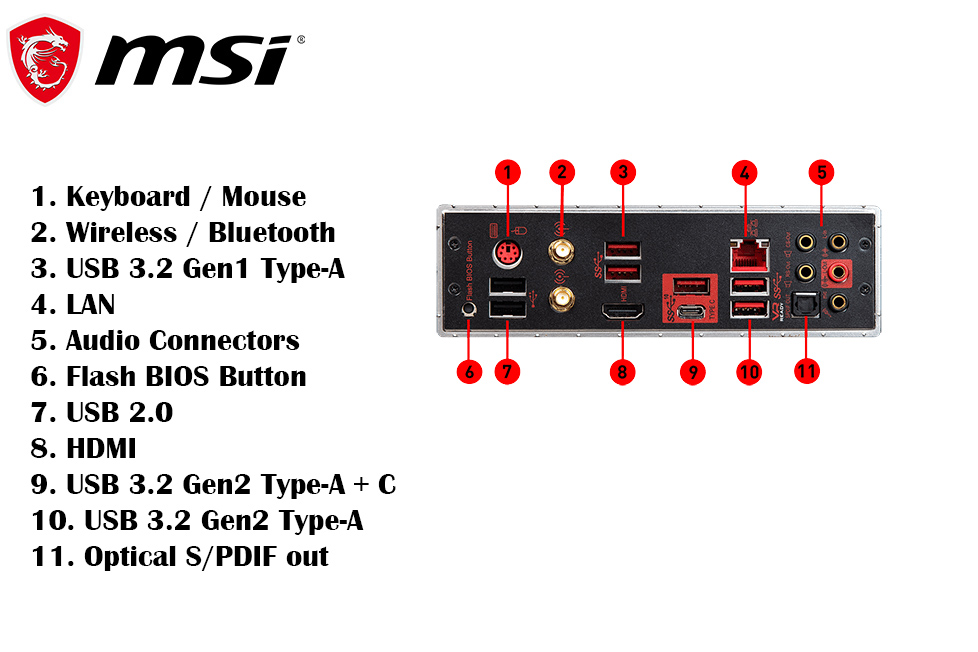

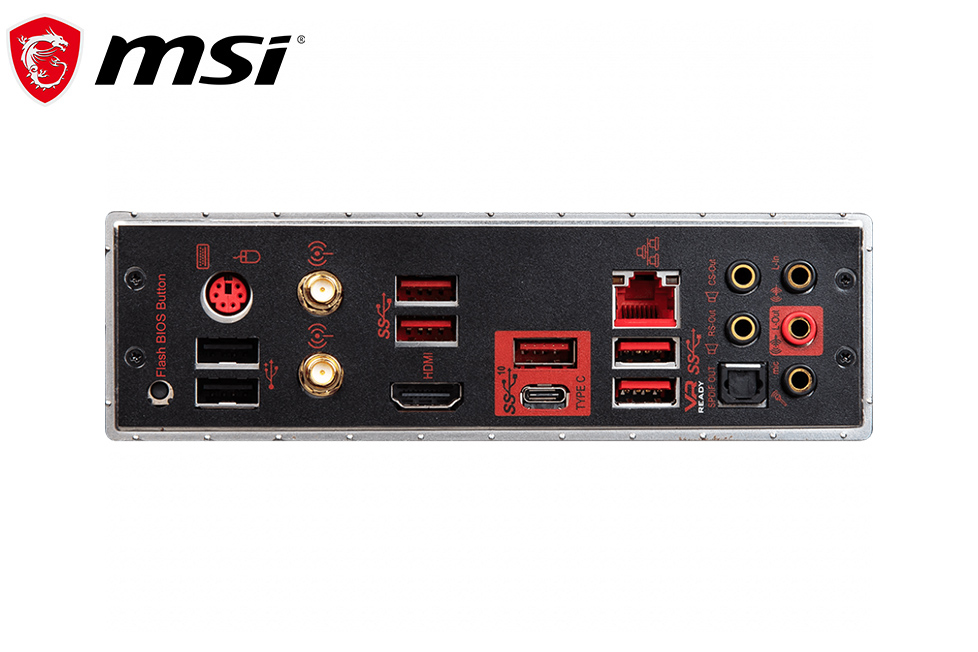

• | USB Ports 4 x USB 3.2(Gen2, 3A+1C) + 6 x USB 3.2(Gen1) + 6 x USB 2.0 |
• | LAN Realtek® RTL8111H Gigabit LAN |
• | Wireless / BT Intel® Wireless-AC 3168, Bluetooth 4.2 |
• | Audio 8-Channel(7.1) HD Audio with Audio Boost 4 |
