MSI B365M PRO VDH MOTHER BOARD
Add to Wishlist- Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
- Supports DDR4 Memory, up to 2666 MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
- Audio Boost: Reward your ears with studio grade sound quality.
- EZ Debug LED: Easiest way to troubleshoot.
- X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.

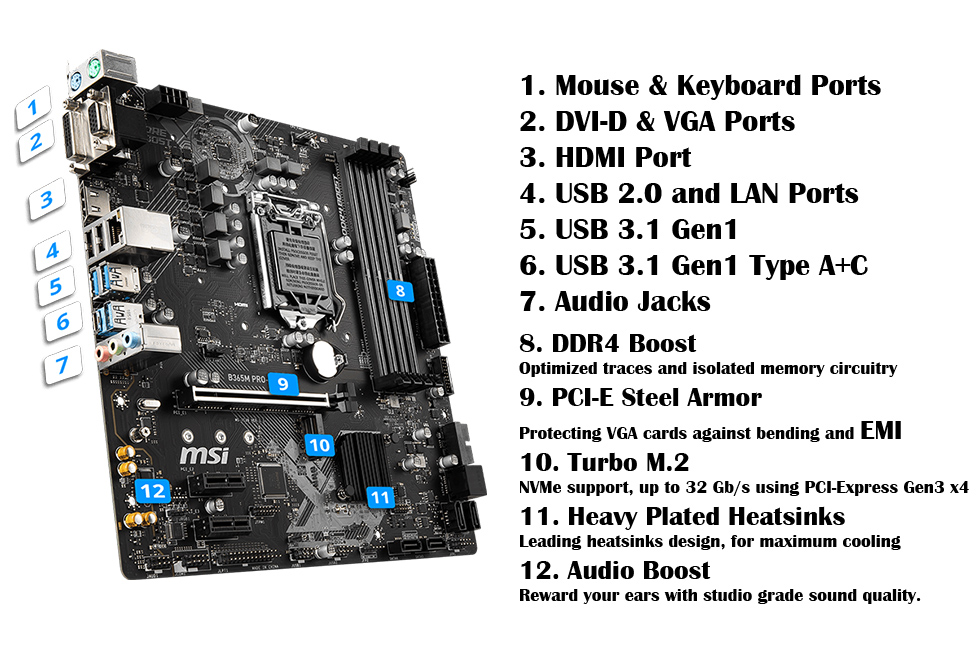

| • | DDR4 Boost Advanced technology to deliver pure data signals for the best gaming performance and stability. |
|---|---|
| • | Audio Boost Reward your ears with studio grade sound quality for the most immersive audio experience. |
| • | EZ Debug LED Easiest way to troubleshoot. |
| • | Turbo M.2 Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs. |
| • | PCI-E Steel Armor Protecting VGA cards against bending and EMI |
| • | Core Boost With premium layout and optimized power design to support more cores and provide better performance. |
| • | Mystic Light Extension Control additional RGB strips or other RGB components added your system with Mystic Light APP and mobile device. |
Description

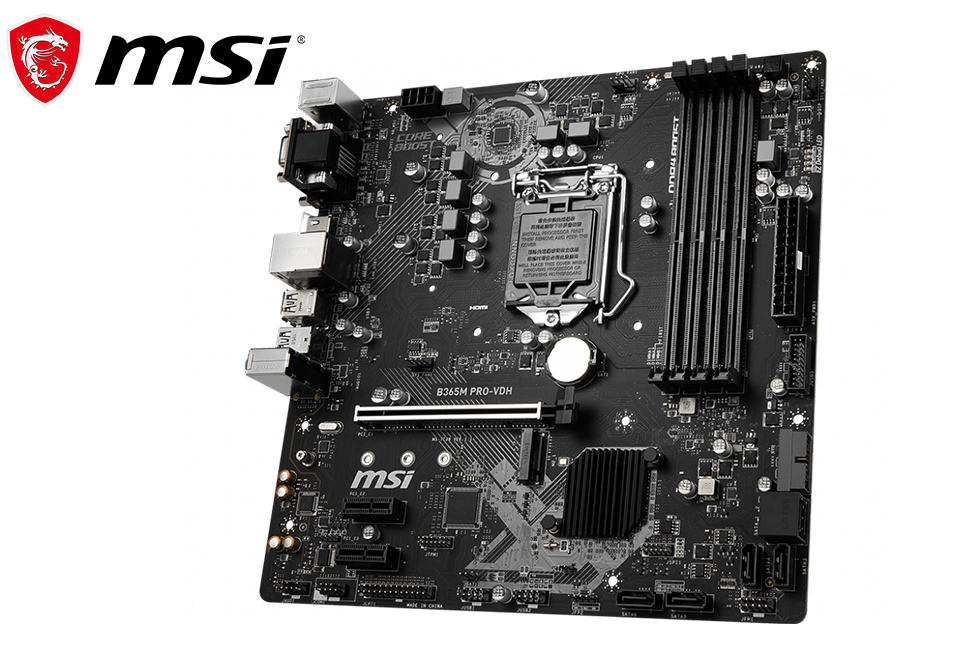

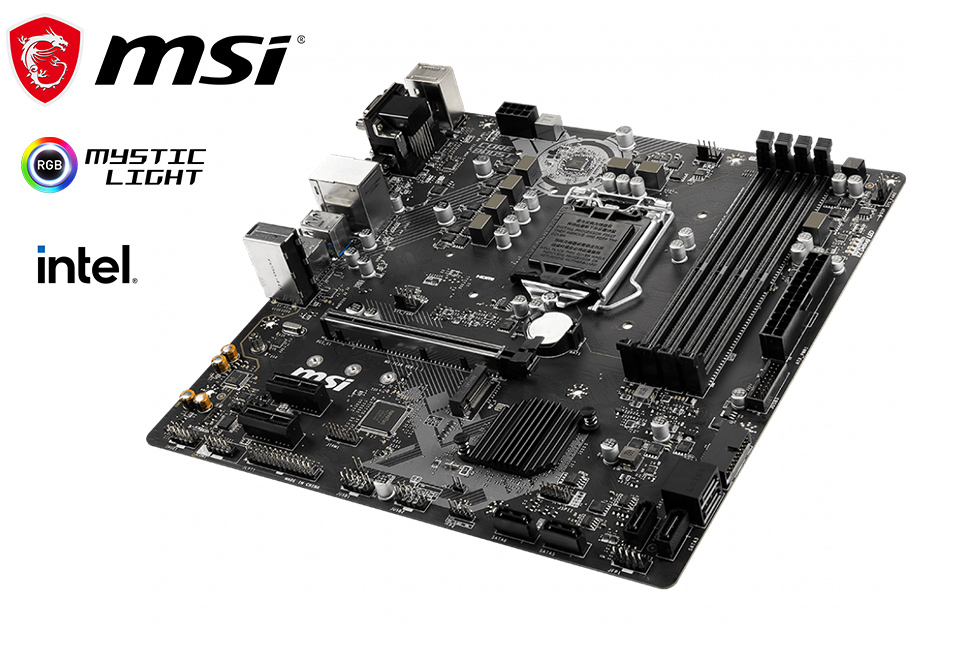

MSI B365M PRO VDH MOTHER BOARD
General
| Product Code | |
|---|---|
| Brand | |
| Model | |
| Color |
Technical Specs
| • | Model Name B365M PRO-VDH |
|---|---|
| • | CPU Support Supports 9th/8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors |
| • | CPU Socket LGA 1151 |
| • | Chipset Intel® B365 Chipset |
| • | Graphics Interface 1 x PCI-E 3.0 x16 slot |

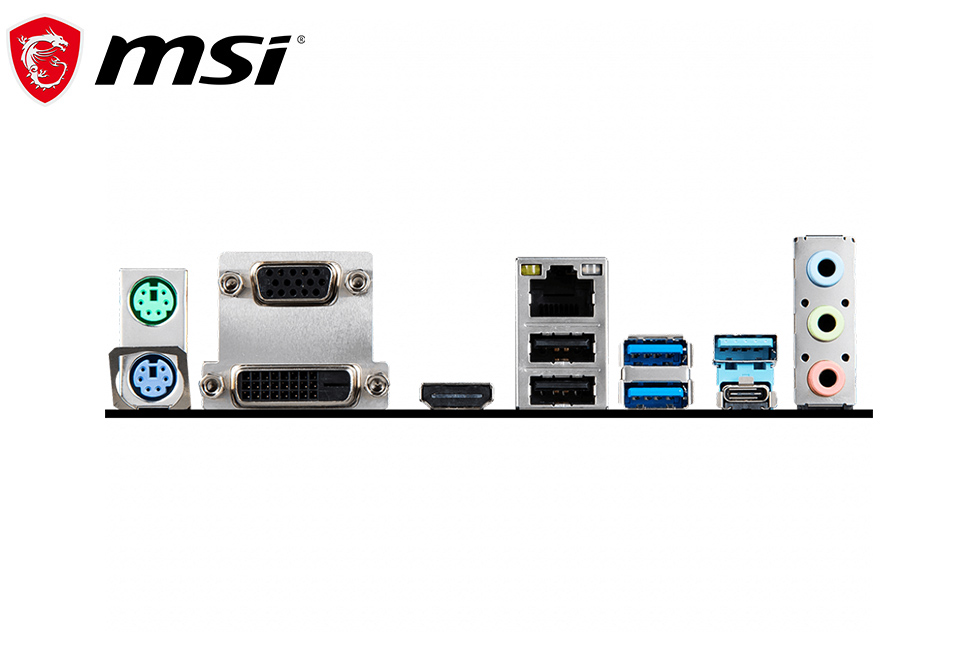

| • | Display Interface HDMI, VGA, DVI-D– Requires Processor Graphics |
| • | Memory Support 4 DIMMs, Dual Channel DDR4 2666 MHz |
| • | Expansion Slots 2 x PCI-E 3.0 x1 slots |
| • | Storage 1 x Turbo M.2 slot, supports Intel® Optane™ Technology 6 x SATA 6Gb/s |
| • | USB ports 8 x USB 3.1(Gen1) + 6 x USB 2.0 |
| • | LAN Realtek® 8111H Gigabit LAN |
| • | Audio 8-Channel(7.1) HD Audio with Audio Boost |
