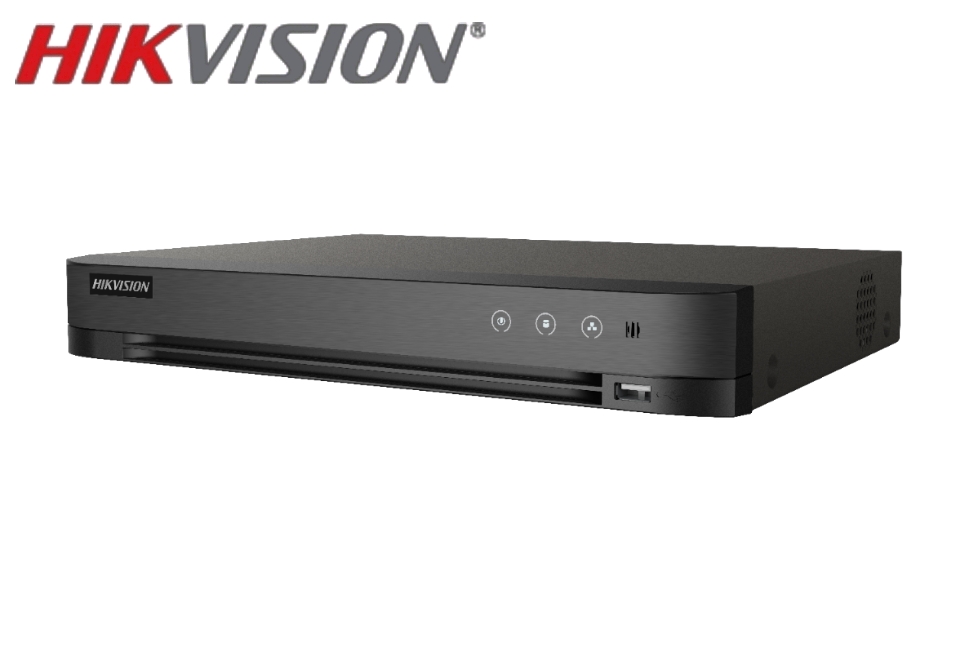

HIKVISION 32CH TURBO HD 2MP DVR DS-7232HGHI-K2
Add to Wishlist- 32 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 1080p lite @ 15 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 18 network cameras can be connected

• | Recording Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution 1080p lite/720p/VGA/WD1/4CIF/CIF Frame Rate Main stream: For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For 720p stream access: 720p/WD1/4CIF/VGA@15fps; CIF@25fps (P)/30fps (N) For standard definition stream access: WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: For 1080p and 720p stream access: CIF/QVGA@15fps For standard definition stream access: CIF/QVGA@25fps (P)/30fps (N) Video Bitrate 32 Kbps to 4 Mbps Dual-Stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps |
---|---|

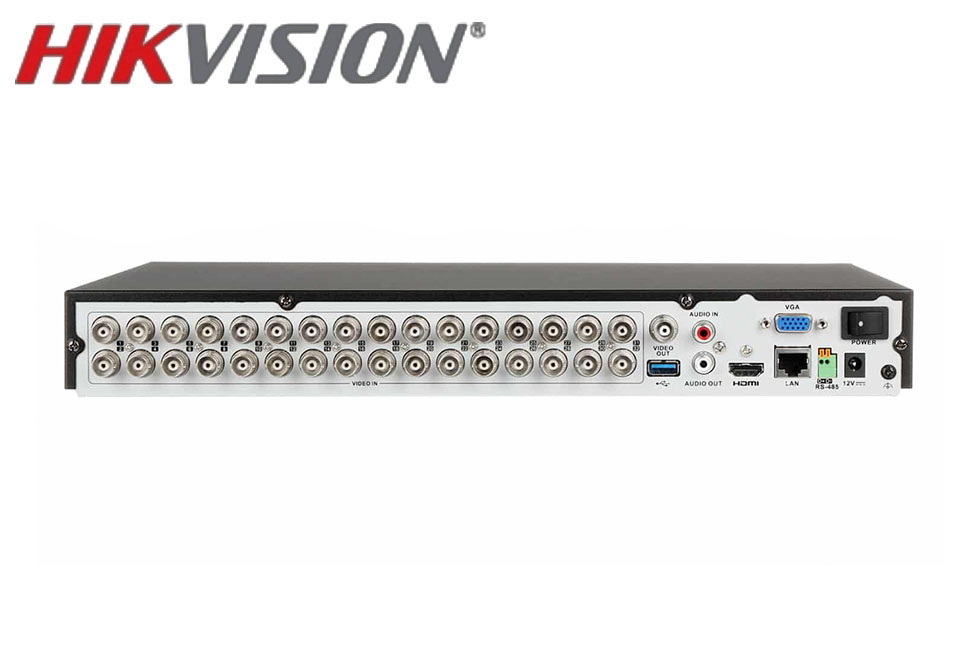

• | Video And Audio IP Video Input 2-ch (up to 18-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input 32-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection HDTVI Input 1080p25, 1080p30, 720p25, 720p30 AHD Input 1080p25, 1080p30, 720p25, 720p30 HDCVI Input 1080p25, 1080p30, 720p25, 720p30 CVBS Input PAL/NTSC HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz CVBS Output 1-ch, BNC (1.0 Vp-p, 75 ?) Audio Input 1-ch, RCA (2.0 Vp-p, 1 K?) Audio Output 1-ch, RCA (Linear, 1 K?) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input) Synchronous Playback 16-ch |
• | Network Remote Connection 128 Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
• | Auxiliary Interface SATA 2, SATA interface Capacity Up to 10 TB capacity for each disk USB Interface Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
• | General Power Supply 12 VDC, 3.2 A Consumption ? 18 W Working Temperature -10 °C to 55 °C (14 °F to 131 °F) Working Humidity 10% to 90% Dimension (W × D × H) 380 × 320 × 48 mm (10.2 × 8.7 × 1.8 inch) ? 2.2 kg (4.9 lb) |
