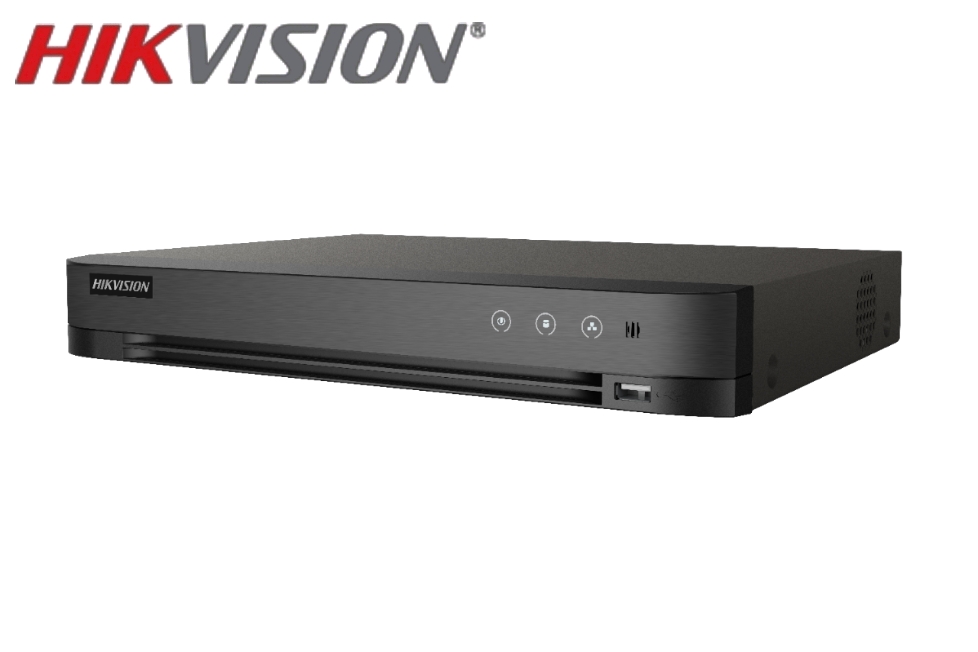

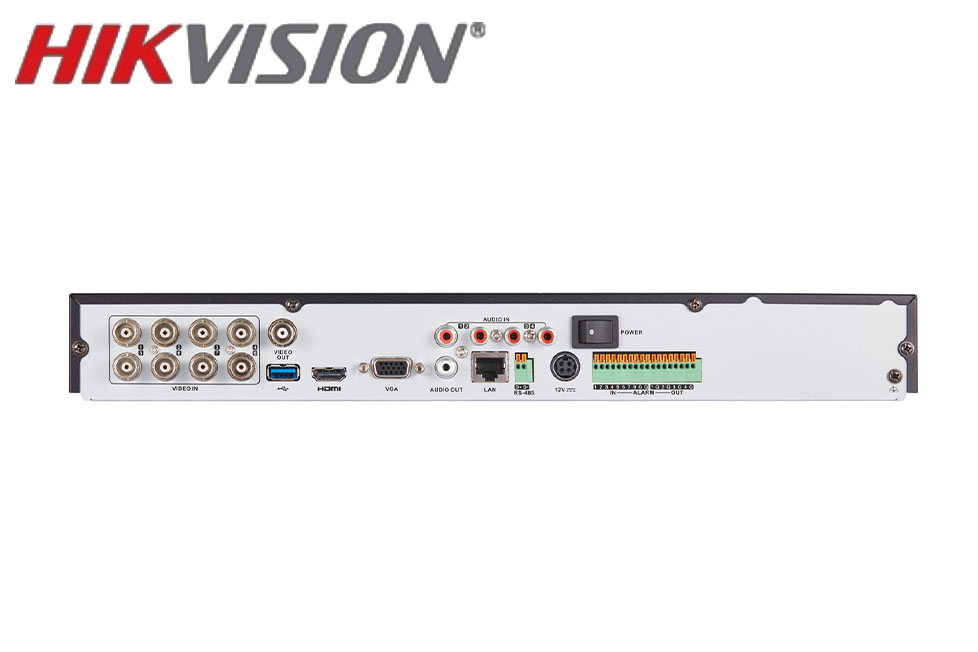

HIKVISION 8CH TURBO HD 8MP DVR DS-7208HUHI-K2
Add to Wishlist- 8 channels and 2 HDDs 1U DVR
- Efficient H.265 pro+ compression technology
- Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Up to 16 network cameras can be connected
| • | Recording Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution 8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF Frame Rate Main stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N), Video Bit Rate 32 Kbps to 10 Mbps Dual Stream Support Stream Type Video, Video & Audio Audio Compression G.711u Audio Bit Rate 64 Kbps |
|---|---|
| • | Video And Audio IP Video Input 8-ch (up to 16-ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input 8-chBNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection AHD Input 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 HDCVI Input 4 MP, 1080p25, 1080p30, 720p25, 720p30 CVBS Input PAL/NTSC Audio Input 4-ch, RCA (2.0 Vp-p, 1 K?) Audio Output 1-ch, RCA (Linear, 1 K?) Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input) Synchronous Playback 8-ch HDTVI Input 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 VGA/HDMI Output VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz ,HDMI: 1-ch, 4K (3840 × 2160)/30Hz, ,2K (2560 × 1440)/60Hz,,1920 × 1080/60Hz, 1280 × 1024/60Hz, ,1280 × 720/60Hz, 1024 × 768/60Hz CVBS Output 1-ch, BNC (1.0 Vp-p, 75 ?), |
| • | Network Remote Connections 64 Network Protocols TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF Network Interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| • | Auxiliary Interface SATA 2 SATA interfaces Capacity Up to 10 TB capacity for each disk Alarm In/Out 8/4 USB Interface Front panel: 1 × USB 2.0, Rear panel: 1 × USB 3.0 Serial InterfaceRS-485 (half-duplex) |
| • | General Power Supply 12 VDC Working Temperature -10 °C to +55 °C (+14 °F to +131 °F) Working Humidity 10% to 90% Dimensions (W × D × H) 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch) Consumption (Without HDD) ? 20 W Weights (Without HDD) ? 1.78 kg (3.9 lb) |
