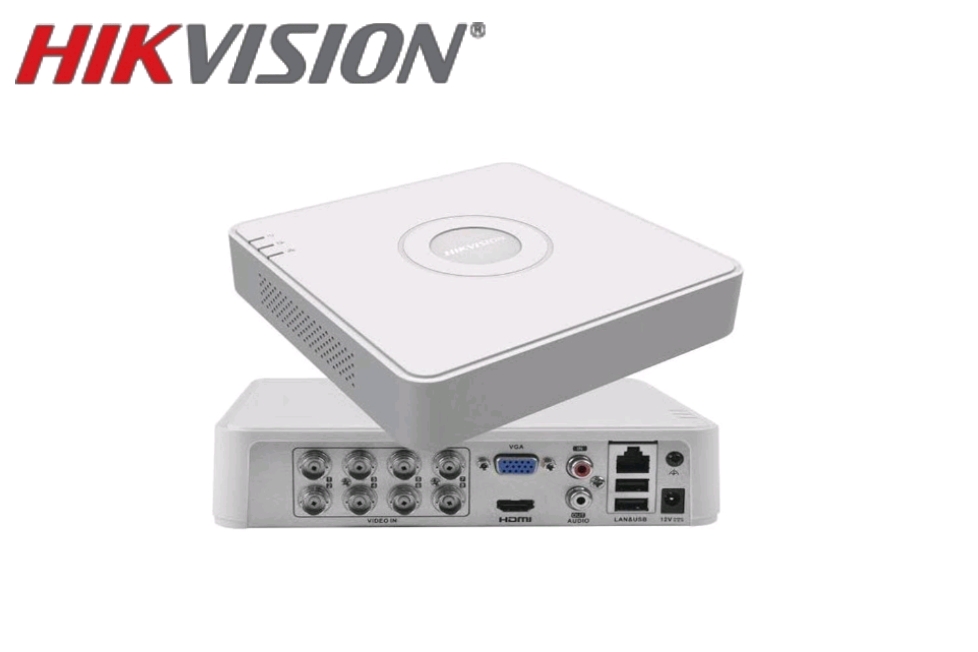

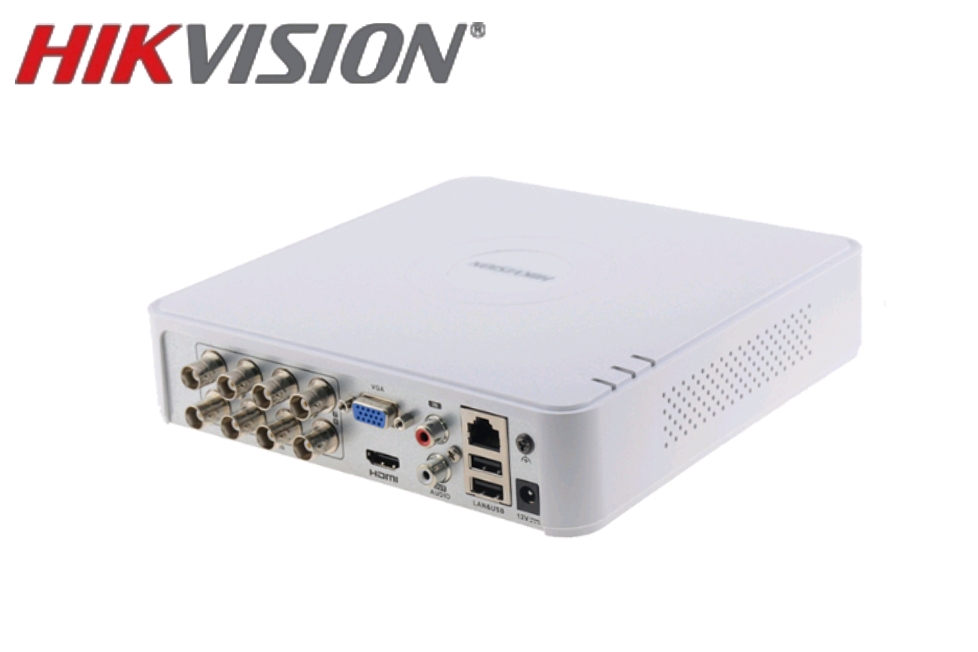

HIKVISION 8CH TURBO HD 2MP DVR DS-7108HGHI-K1
Add to Wishlist- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/AHD/CVI/CVBS/IP video input
- Audio via coaxial cable
- Up to 10-ch IP camera input (up to 5 MP)
- Encoding ability up to 1080p lite @ 25/30 fps
- Max. 1200 m for 720p HDTVI signal
| • | Recording Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 Encoding Resolution When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF Frame Rate Main stream: When 1080p Lite mode not enabled: For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps; For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 1080p Lite/HD 720p Lite/WD1/4CIF/VGA/CIF@15 fps Sub-stream: CIF/QVGA@25 fps (P)/30 fps (N) Video Bitrate 32 Kbps to 4 Mbps Stream Type Video, Video & Audio Audio Compression G.711u Audio Bitrate 64 Kbps |
|---|---|
| • | Video And Audio IP Video Input 2-ch (up to 10-ch) Up to 5 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras Analog Video Input 8-ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection AHD Input 1080p25, 1080p30, 720p25, 720p30 HDCVI Input 1080p25, 1080p30, 720p25, 720p30 CVBS Input Support HDMI Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz HDMI/VGA simultaneous output Audio Input 1-ch RCA (2.0 Vp-p, 1 K?) 8-ch via coaxial cable Audio Output 1-ch, RCA (Linear, 1 K?) Two-Way Audio Reuse the first audio input Synchronous Playback 8-ch |
| • | Network Remote Connection64 Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
| • | Auxiliary Interface SATA1 SATA interface Capacity Up to 4 TB capacity for each disk USB Interface Rear panel: 2 × USB 2.0 Alarm In/Out N/A |
| • | General Power Supply 12 VDC, 1.5 A Consumption? 17 W Working Temperature -10 °C to 55 °C (14 °F to +31 °F) Working Humidity 10% to 90% Dimension (W × D × H)260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) ? 1 kg (2.2 lb) |
