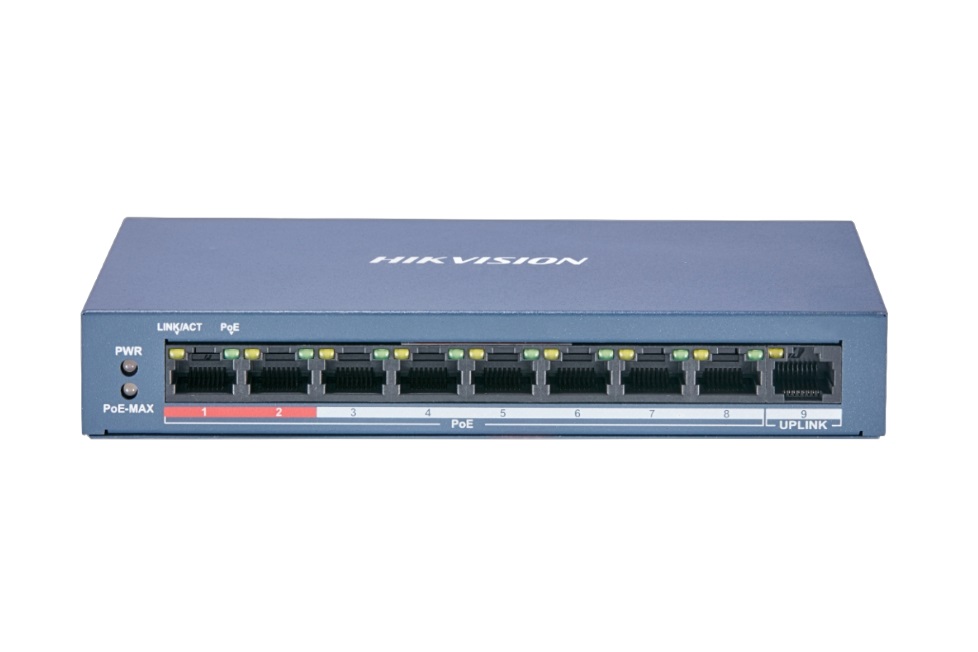

HIKVISION 8 PORT POE 10/100 NETWORK SWITCH DS-3E0109P-E/M(B)
Add to Wishlist- 100Mbps Long-Range PoE Switch
- Up to 250 m Long-Range PoE Transmission Distance
- IEEE802.3af/at Compliant, and 30W Max Output Power for Each Port
- PD Power Intelligent Detection with System-Level Overload Protection
- 6 KV Surge Protection
- High Priority Ports for Video Transmission
| • | PoE Power Supply PoE Standard IEEE 802.3af, IEEE 802.3at PoE Power Pin Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply PoE Port Ports 1 to 8 Max. Port Power 30 W PoE Power Pudget 60 W Max. Power Consumption 65 W |
|---|---|
| • | Network Parameters Port Number 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port Port Type RJ45 port, full duplex, MDI/MDI-X adaptive Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding Mode Store-and-forward switching Working Mode Standard mode (default); Extend mode High Priority Ports Ports 1 to 2 Ports For Long-Distance Transmission Ports 1 to 8 MAC Address Table 2 K Switching Capacity 1.8 Gbps Packet Forwarding Rate 1.339 Mpps Internal Cache 1 Mbits |
| • | General Shell Metal material, fan-free design Gross Weight 0.89 kg (1.96 lb) Net Weight 0.35 kg (0.77 lb) Dimension (L × H × D)170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”) Operating Temperature -10 °C to 55 °C (14 °F to 131 °F) Storage Temperature -40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity 5% to 95% (no condensation) Storage Humidity 5% to 95% (no condensation) Power Supply 48 VDC, 1.35 A Power Consumption In Idle 5 W |
| • | Approval EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
