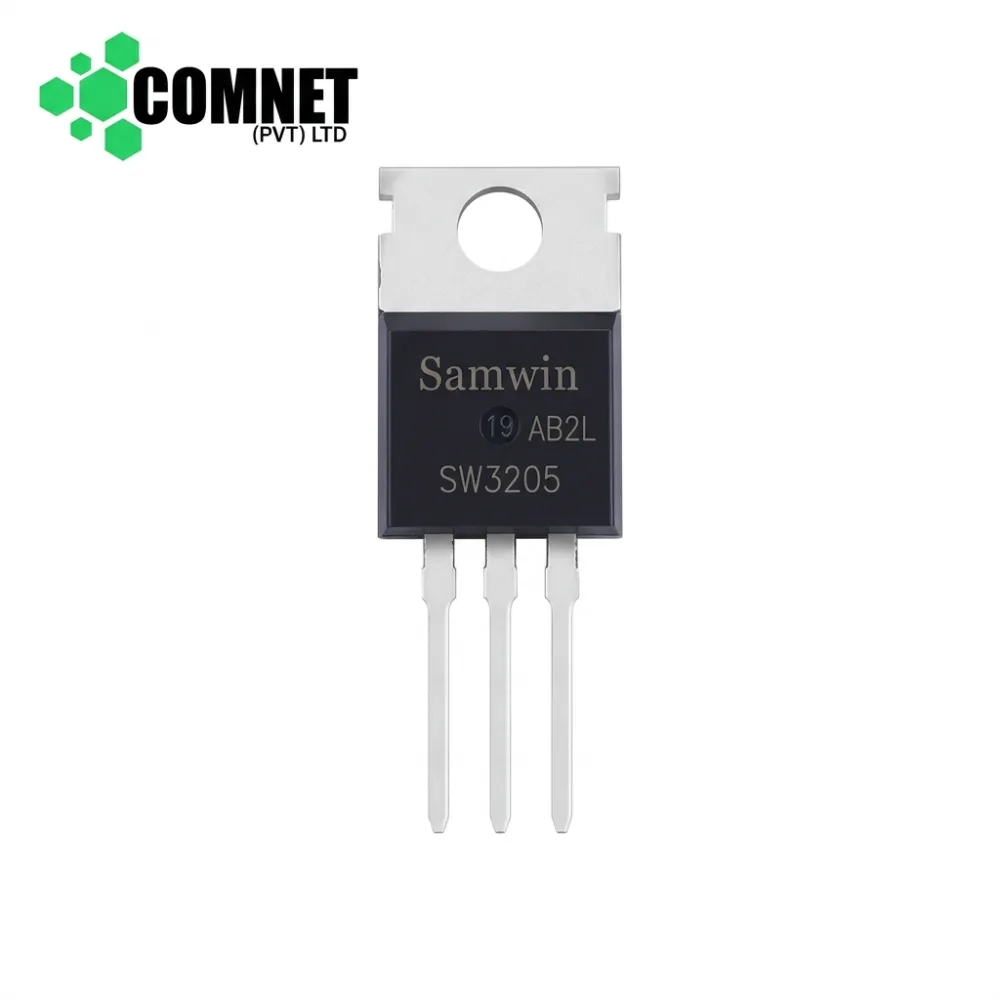

SW3205 SW3205B MOSFET
Product Title: Samwin SW3205 / SW3205B N-Channel 55V 110A Power MOSFET (Top Marking: SW3205, Lot Code: AB2L)
Product Specifications:
- Part Number / Marking: SW3205 / SW3205B (Top Package Line 1: SW3205, Line 2: AB2L or similar factory date, batch, and lot tracking codes)
- Manufacturer: Samwin Semiconductor
- Transistor Type / Polarity: N-Channel Enhancement Mode Power MOSFET
- Package / Case: TO-220 (Standard 3-pin through-hole power package with metal tab)
- Total Gate Charge ($Q_g$): $120\text{nC}$ typical
- Total Power Dissipation ($P_D$): $150\text{W}$ at $T_C = 25^\circ\text{C}$
- Operating Junction Temperature Range ($T_J$): $-55^\circ\text{C to }+175^\circ\text{C}$
Short Description: The Samwin SW3205 (marked with lot tracking code AB2L) is a high-power $55\text{V}$, $110\text{A}$ N-Channel enhancement-mode power MOSFET designed for high-efficiency power conversion and fast switching applications. Featuring an ultra-low on-resistance ($8.0\text{m}\Omega$) and robust avalanche ruggedness, it minimizes thermal loss under heavy current loads. An essential power switching component for repairing $12\text{V}$ to $24\text{V}$ DC power inverters, solar charge controllers, high-current DC motor speed drivers, automotive audio power amplifiers, and battery management protection boards.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
