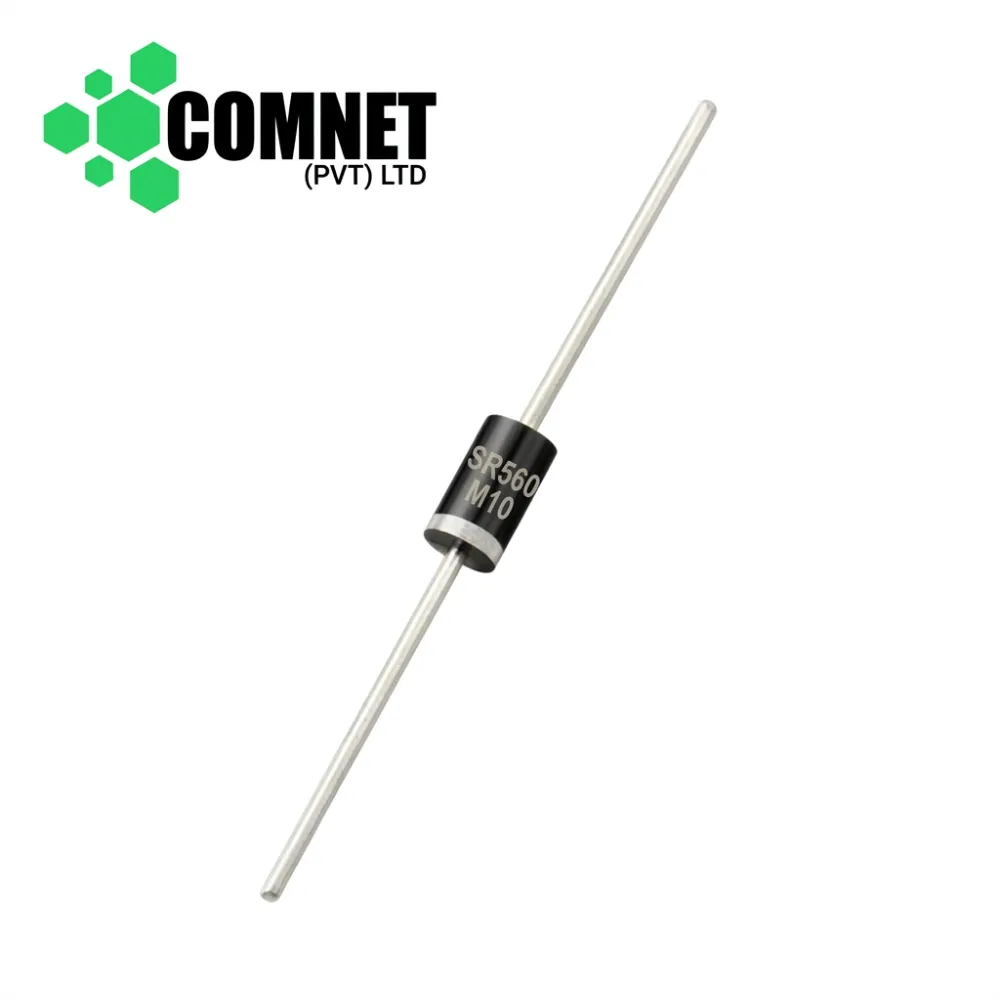

SR560 5A 60V DIODE
Product Title: SR560 (5A 60V) High-Efficiency Axial Schottky Barrier Rectifier Diode (DO-201AD)
Product Specifications:
- Part Number / Marking: SR560 (Top Band / Marking: SR560)
- Diode Type: Schottky Barrier Rectifier Diode
- Package / Case: DO-201AD (DO-27 Plastic Axial Leaded, Through-Hole)
- Maximum Repetitive Peak Reverse Voltage ($V_{RRM}$): $60\text{V}$
- Maximum RMS Voltage ($V_{RMS}$): $42\text{V}$
- Maximum DC Blocking Voltage ($V_{DC}$): $60\text{V}$
- Operating Junction Temperature Range ($T_J$): $-55^\circ\text{C}\text{ to }+150^\circ\text{C}$
- Features: Low forward voltage drop, high current capability, ultra-fast switching speed, guard-ring structure for transient protection, low power loss for high efficiency
Short Description: Industry-standard SR560 high-efficiency Schottky barrier diode in a durable DO-201AD (DO-27) axial through-hole package. Rated for $5\text{A}$ continuous forward current and $60\text{V}$ maximum reverse voltage. Designed for high-frequency rectification, low forward voltage drop ($0.70\text{V}$ max), and fast switching response to maximize power conversion efficiency. Widely used in low-voltage high-frequency switched-mode power supplies (SMPS), DC-DC converters, freewheeling diode stages, reverse polarity protection circuits, and solar panel junction boxes. Essential replacement diode for repairing secondary rectification stages in power adapters, solar charge controllers, and motor drives.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
