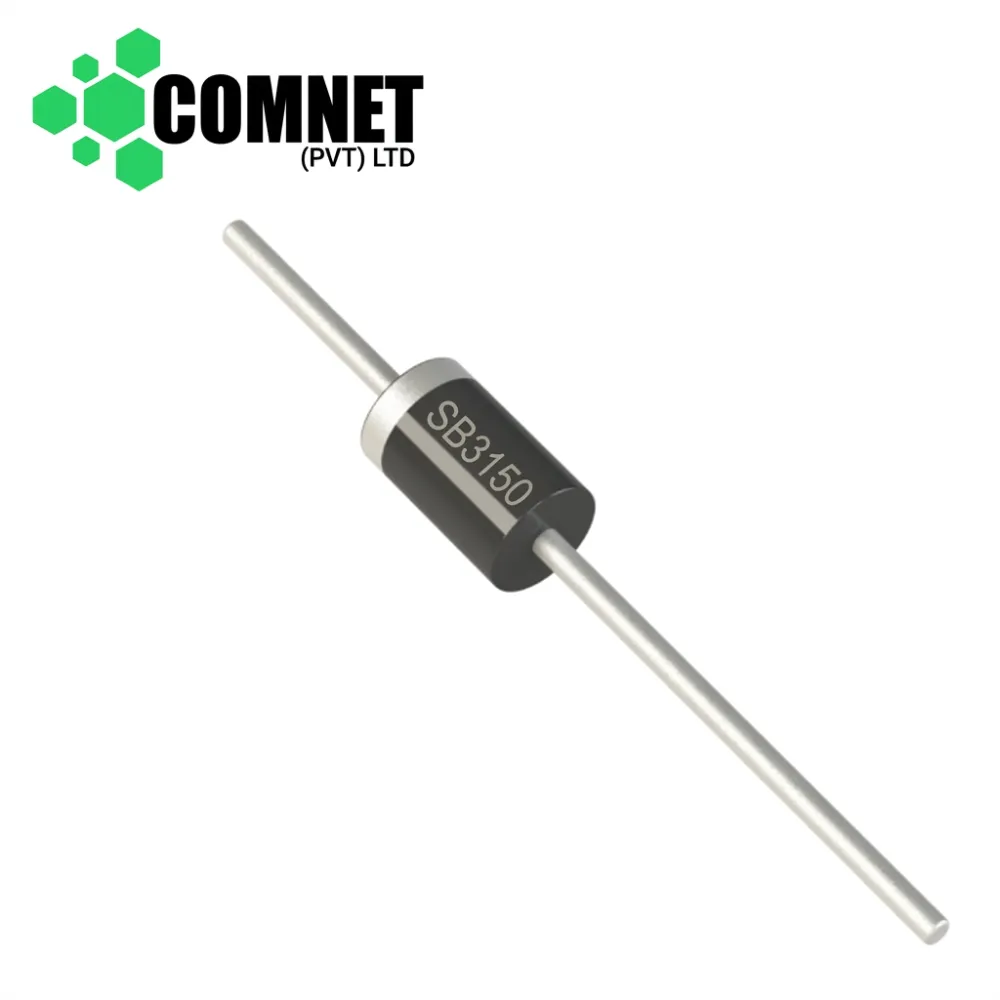

SB3150 DIODE
Product Title: SB3150 (3A 150V) High-Efficiency Axial Schottky Barrier Rectifier Diode (DO-201AD)
Product Specifications:
- Part Number / Marking: SB3150 (Top Band / Marking: SB3150)
- Diode Type: Schottky Barrier Rectifier Diode
- Package / Case: DO-201AD (DO-27 Plastic Axial Leaded, Through-Hole)
- Operating Junction Temperature Range ($T_J$): $-55^\circ\text{C}\text{ to }+150^\circ\text{C}$
- Features: Extremely low forward voltage drop, high surge current capability, ultra-fast switching speed, low power loss for high efficiency
Short Description: Industry-standard SB3150 high-efficiency Schottky barrier diode in a robust DO-201AD (DO-27) axial through-hole package. Rated for $3\text{A}$ continuous forward current and $150\text{V}$ maximum reverse voltage. Known for its ultra-fast switching characteristics and exceptionally low forward voltage drop ($0.85\text{V}$ max), significantly reducing power dissipation compared to standard silicon rectifiers. Ideal for high-frequency switch-mode power supplies (SMPS), DC-DC converters, freewheeling diodes, polarity protection circuits, and solar panel bypass arrays. Essential replacement diode for repairing switched-mode power supplies, inverter output stages, and battery charging circuits.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
