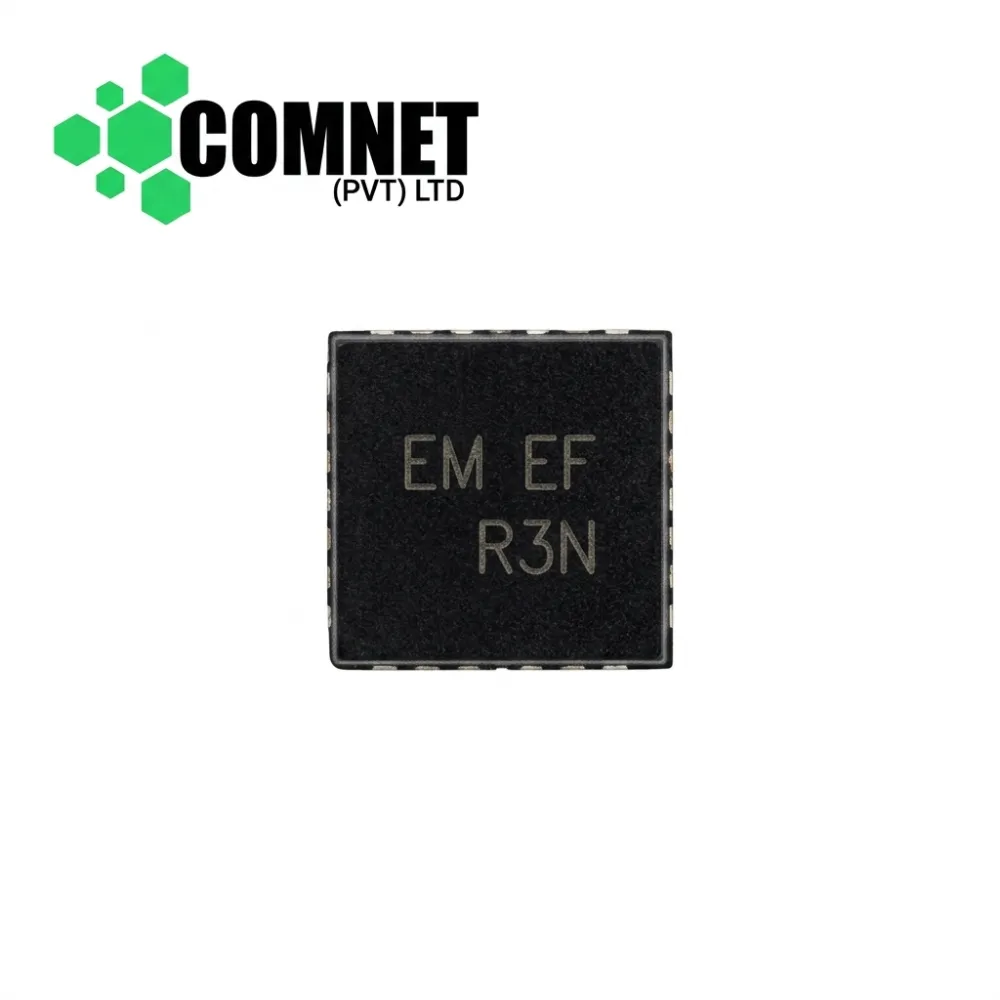

RT8205LZQW IC
Product Title: RT8205LZQW (Marking: EM= / EM EF / R3N) High-Efficiency Dual Step-Down Controller IC for 3.3V / 5V Standby Power (WQFN-24L 4x4)
Product Specifications:
- Part Number / Marking: RT8205LZQW (Top Marking Code: EM= / EM EF / R3N / EM=XX)
- Manufacturer: Richtek Technology
- Device Type: Dual Synchronous Step-Down (Buck) Power Controller IC with Dual LDOs
- Package / Case: WQFN-24L 4x4 (24-Pin Surface Mount with Exposed Thermal Pad)
- Input Voltage Range ($V_{IN}$): $6\text{V to }25\text{V DC}$ (Primary Adapter / Battery Power Rail
- Control Architecture: Quick-PWM Constant On-Time (COT) for Fast Dynamic Transient Response
- Operating Efficiency: Up to $97\%$ Efficiency with Out-of-Audio Operating Mode
- Operating Temperature Range:$-40^\circ\text{C}\text{ to }+85^\circ\text{C}$
Short Description: High-efficiency Richtek RT8205LZQW (top marking: EM=) dual synchronous step-down PWM controller IC in a 24-pin WQFN package. Specifically designed to generate the primary $3.3\text{V}$ and $5\text{V}$ system standby power rails (3VALW / 5VALW) on laptop motherboards and embedded logic boards. Includes dual integrated low-dropout linear regulators (LDOs) to power embedded controllers (EC) and auxiliary power monitoring stages. Essential replacement chip for resolving dead motherboard issues, missing $3.3\text{V}/5\text{V}$ standby rails, short-circuit trips, and power-on failures.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
