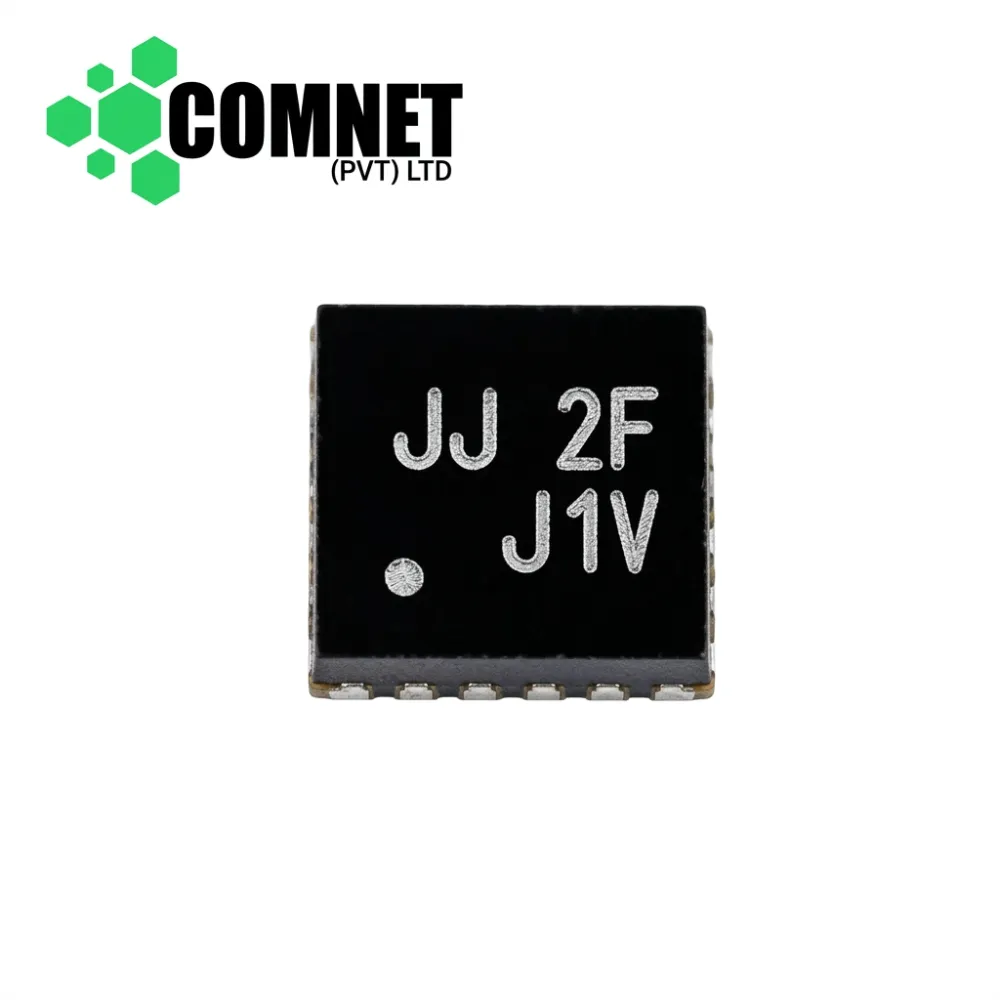

Product Title: RT8202MZQW / RT8202M (Marking: JJ= / JJ) Single Synchronous Step-Down (Buck) PWM Controller IC (WQFN-16 3x3)
Product Specifications:
- Part Number: RT8202MZQW / RT8202M / RT8202 (Top Marking Code: JJ / JJ= / Lot Tracking Code: e.g., 2F / J1V)
- Device Type: Single-Phase High-Efficiency Synchronous Step-Down (Buck) PWM Controller
- Package / Case: WQFN-16L 3x3 / WQFN-16 (3x3mm Surface Mount with Exposed Thermal Pad)
- Pin Count: 16 Pins
- Input Voltage Range ($V_{IN}$): 4.5V to 26V
- Bias Voltage ($V_{CC}$): 4.5V to 5.5V
- Output Voltage Range ($V_{OUT}$): Adjustable from 0.75V to 3.3V (Integrated 0.75V Precision Reference $\pm 1.5\%$)
- Operating Temperature Range:$-40^\circ\text{C}\text{ to }+85^\circ\text{C}$
Short Description: High-efficiency Richtek RT8202MZQW (top marking: JJ) single-phase synchronous step-down PWM controller IC in a compact 16-pin 3x3 WQFN package. Specifically designed to step down high-voltage primary power rails into low-voltage core power rails ($+1.05\text{V}$, $+1.5\text{V}$, $+1.8\text{V}$, or $+2.5\text{V}$) for RAM, GPU core, or PCH chipsets on laptop motherboards. Utilizes Richtek's Quick-PWM control topology to manage extreme load-step changes with fast 100ns response times. Essential replacement component for fixing missing chipset power supplies, repairing shorted memory power rails, and replacing damaged PWM controllers on laptop logic boards.
