OZ960G CCFL IC

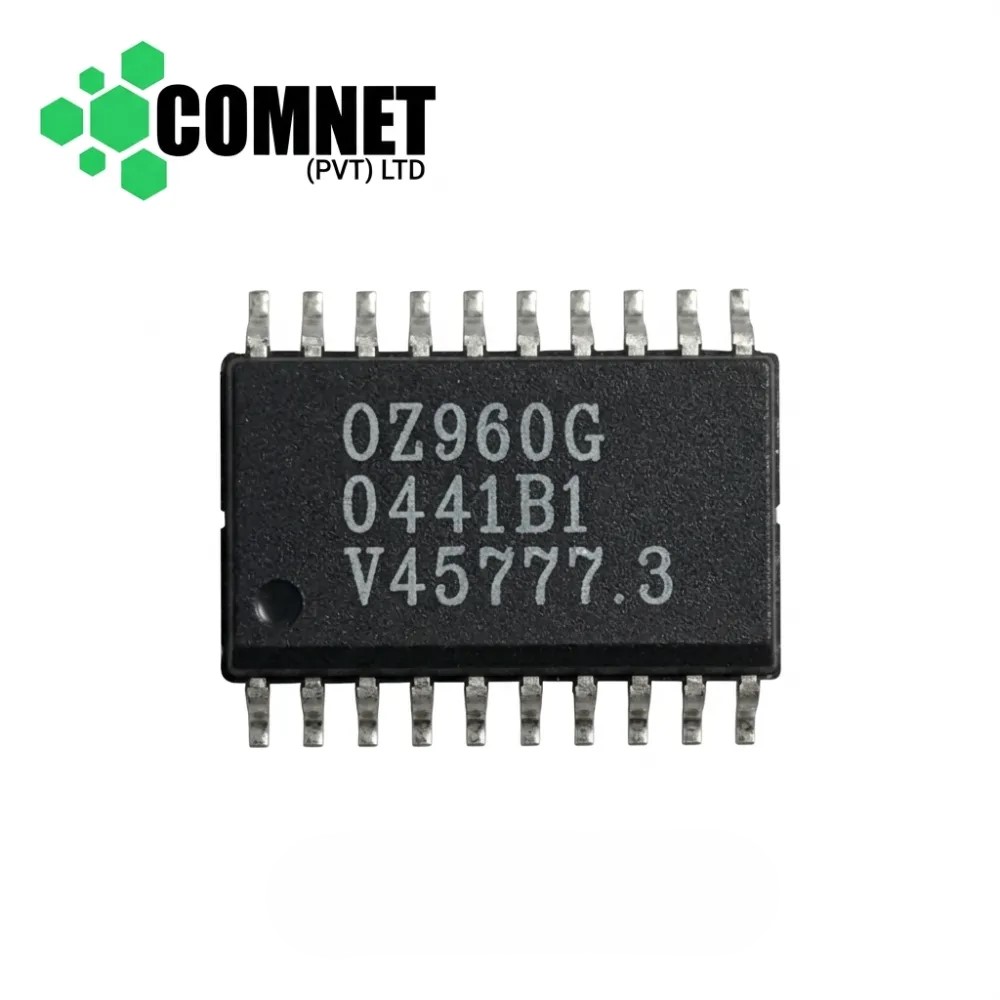

Product Title: O2Micro OZ960G CCFL Backlight Inverter Controller IC (SOP-20 Package)
Product Specifications:
- Part Number / Marking: OZ960G (Top Package Line 1: OZ960G, followed by date, lot, and manufacturing tracking codes)
- Device Type: High-Efficiency Cold Cathode Fluorescent Lamp (CCFL) Backlight Inverter Controller
- Package / Case: SOP-20 / SSOP-20 (20-pin Surface-Mount Package)
- Supply Voltage ($V_{IN}$): $5.0\text{V to } 20\text{V DC}$ (Typical operating voltage range: $8\text{V}$–$18\text{V}$)
- Operating Frequency Range: Adjustable up to $150\text{kHz}$ (Set by external RC components)
- Dimming Control: Supports both Analog and PWM (Pulse Width Modulation) dimming control signals
- Operating Temperature Range:$-20^\circ\text{C to }+85^\circ\text{C}$
Short Description: The O2Micro OZ960G is a highly integrated, high-efficiency CCFL (Cold Cathode Fluorescent Lamp) backlight inverter controller IC housed in a 20-pin SOP package. It drives full-bridge, half-bridge, or push-pull power stages to generate high-voltage AC waveforms required to strike and illuminate CCFL tubes in display panels. Featuring wide input voltage tolerance, smooth dimming control, and comprehensive over-voltage/open-lamp protection, it is widely used on LCD TV power/inverter combo boards, desktop LCD monitor power boards, and industrial display controllers.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
