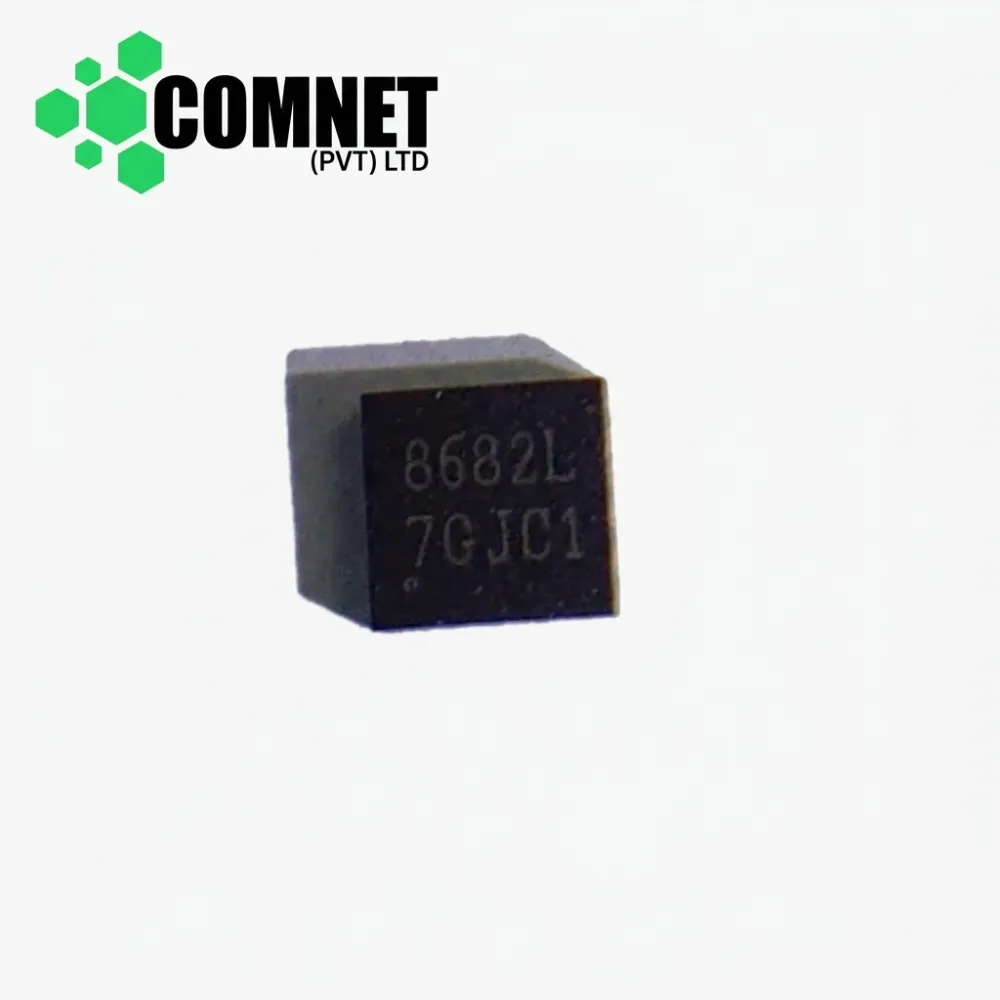

OZ8682LN OZ8682 IC
Product Title: OZ8682LN / OZ8682 (Marking: 8682L / OZ8682L) Synchronous Buck Battery Charger Controller IC (QFN)
Product Specifications:
- Part Number: OZ8682LN / OZ8682 (Top Marking Code: 8682L / OZ8682L / Lot Tracking Code: e.g., 7GJC1)
- Device Type: High-Efficiency Synchronous Buck Battery Charger Controller IC
- Package / Case: QFN / WQFN (Surface Mount with Exposed Thermal Pad)
- Input Voltage Range ($V_{IN}$): 4.5V to 25V
- Operating Temperature Range:$-40^\circ\text{C}\text{ to }+85^\circ\text{C}$
Short Description: High-efficiency O2Micro OZ8682LN (top marking: 8682L) synchronous buck battery charger controller IC in a compact QFN package. Designed for multi-cell Li-ion battery charging circuits in laptop motherboards, netbooks, and portable power management systems. Features precision current and voltage regulation alongside integrated AC adapter detection and dynamic power management to safeguard system power rails. Essential replacement component for repairing laptop power input stages, fixing "Plugged In, Not Charging" errors, resolving missing ACOK/adapter detection signals, and replacing burnt primary battery charger ICs.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
