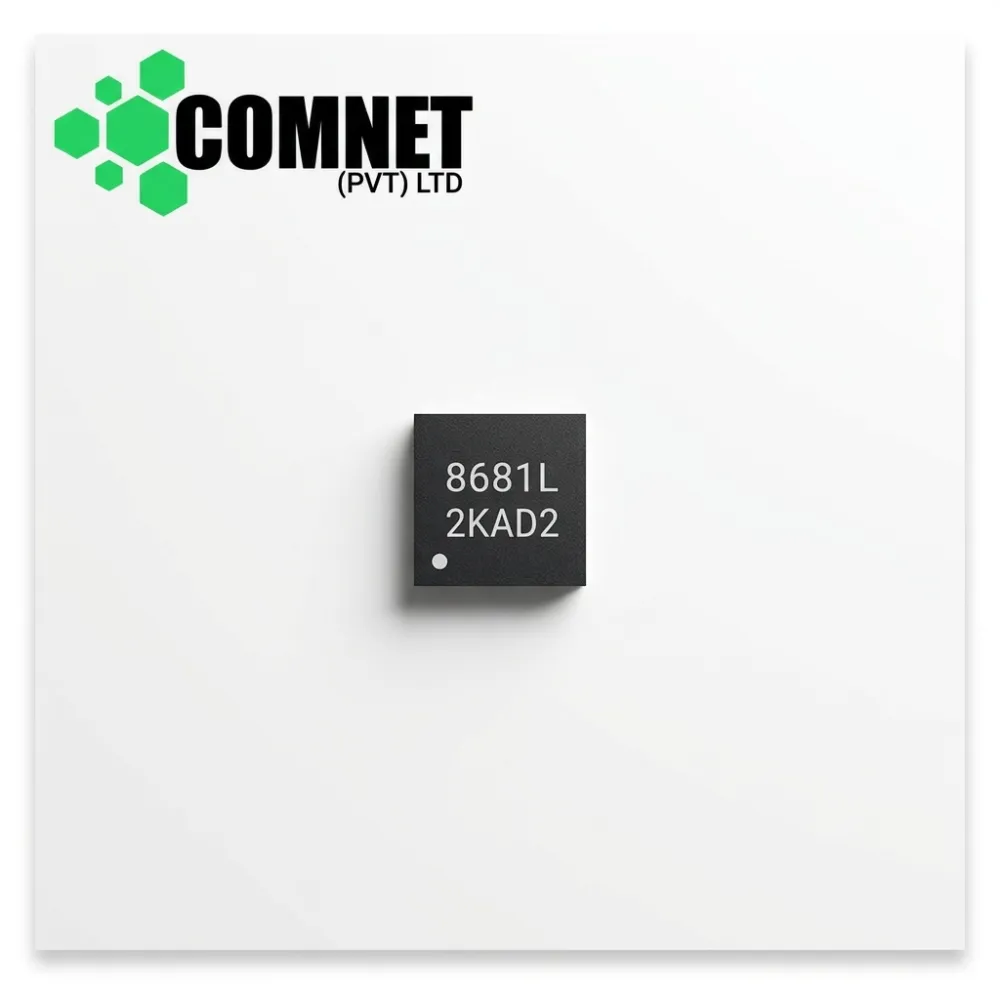

OZ8681L OZ8681 IC
Product Title: OZ8681L / OZ8681 (Marking: OZ8681L / 2KAD2) Synchronous Buck Battery Charger Controller IC (QFN-16)
Product Specifications:
- Part Number / Marking: OZ8681L / OZ8681 (Top Marking Code: OZ8681L / 2KAD2)
- Manufacturer: O2Micro Electronics
- Device Type: High-Efficiency Synchronous Buck Battery Charger & Power Selector Controller IC
- Package / Case: QFN-16 / WQFN-16 (16-Pin Quad Flat No-Lead Package)
- Input Voltage Range ($V_{IN}$): $4.5\text{V to }24\text{V DC}$ (Adapter Input Rail)
- Battery Chemistry Supported: $2\text{-S}$, $3\text{-S}$, and $4\text{-S}$ Series Lithium-Ion (Li-Ion) / Lithium-Polymer (Li-Po) Battery Packs
- Operating Temperature Range:$-40^\circ\text{C}\text{ to }+85^\circ\text{C}$
Short Description: High-efficiency O2Micro OZ8681L (top marking: OZ8681L) synchronous buck battery charger controller IC in a compact 16-pin QFN package. Designed as the main charging IC and power path manager on laptop motherboards, netbooks, and portable power systems to manage charging for 2-cell to 4-cell Lithium-Ion battery packs. Features Dynamic Power Management (DPM) and automatic system power path selection between AC adapter input and battery power. Essential replacement component for repairing laptop battery charging failure, unrecognised AC adapter errors, motherboard power switching faults, and shorted battery charger circuits.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
