NPCE985PB1DX IC

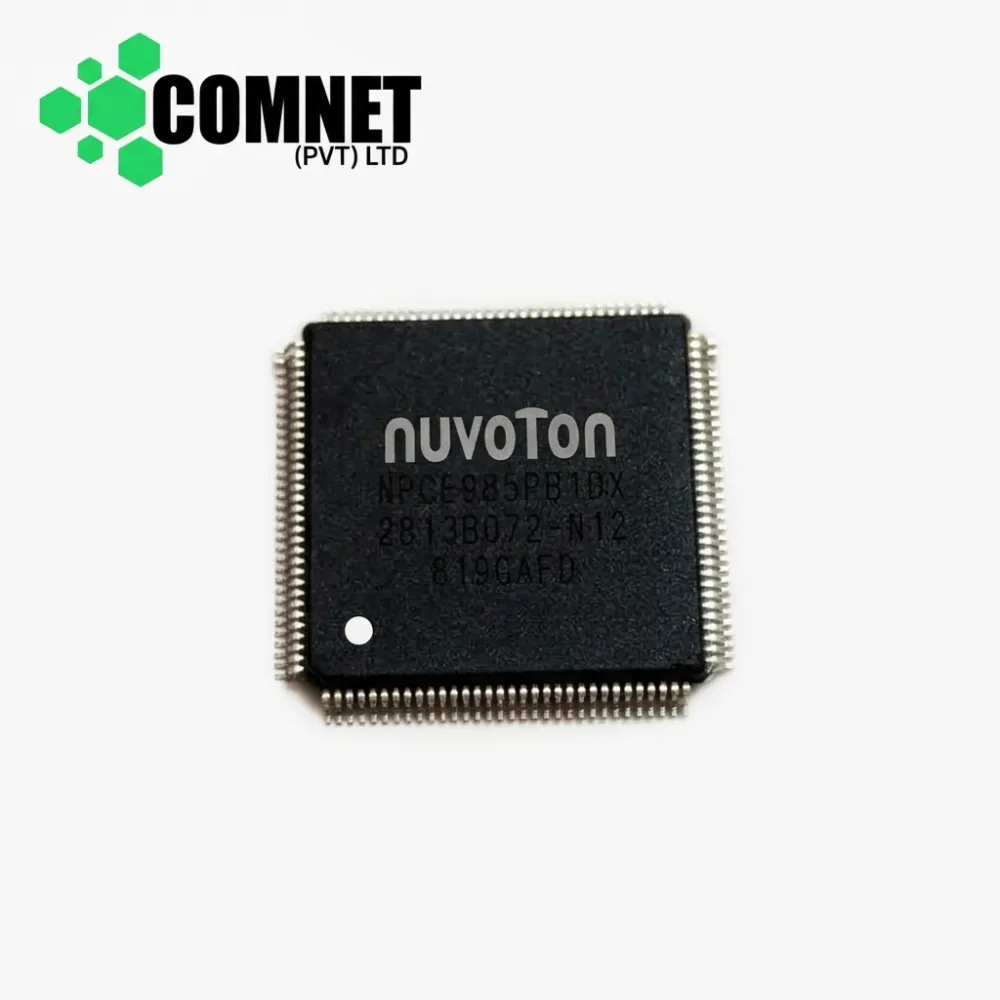

Product Title: Nuvoton NPCE985PB1DX (Marking: NPCE985PB1DX / 2813B072-N12 / 819GAFD) Programmable Embedded Controller (EC / KBC) IC (LQFP-128)
Product Specifications:
- Part Number / Marking: NPCE985PB1DX (Lot/Date Codes: 2813B072-N12 / 819GAFD / NPCE985PB1DX)
- Device Type: High-Performance Embedded Controller / Keyboard Controller (EC / KBC)
- Package / Case: LQFP-128 (128-Pin Low-Profile Quad Flat Package, Surface Mount)
- Bus Interface Support: eSPI (Enhanced Serial Peripheral Interface) & LPC (Low Pin Count) Bus
- Embedded Memory: Internal Programmable Flash Memory / ROM
- Core Architecture: Compact RISC / Embedded Microcontroller Core
- Operating Supply Voltage ($V_{CC}$): $3.3\text{V DC}$ Standby / Auxiliary Rail ($+3VALW$)
- Operating Temperature Range:$-40^\circ\text{C}\text{ to }+85^\circ\text{C}$
Short Description: Highly integrated Nuvoton NPCE985PB1DX programmable embedded controller (EC / KBC) IC in a 128-pin LQFP package. Functions as the master system management chip on modern laptop motherboards, managing standby power-on sequencing, thermal logic, battery management, and keyboard/touchpad decoding. Essential replacement component for repairing dead laptop motherboards, power-on failures, keyboard/fan malfunctions, and corrupted EC firmware states.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
