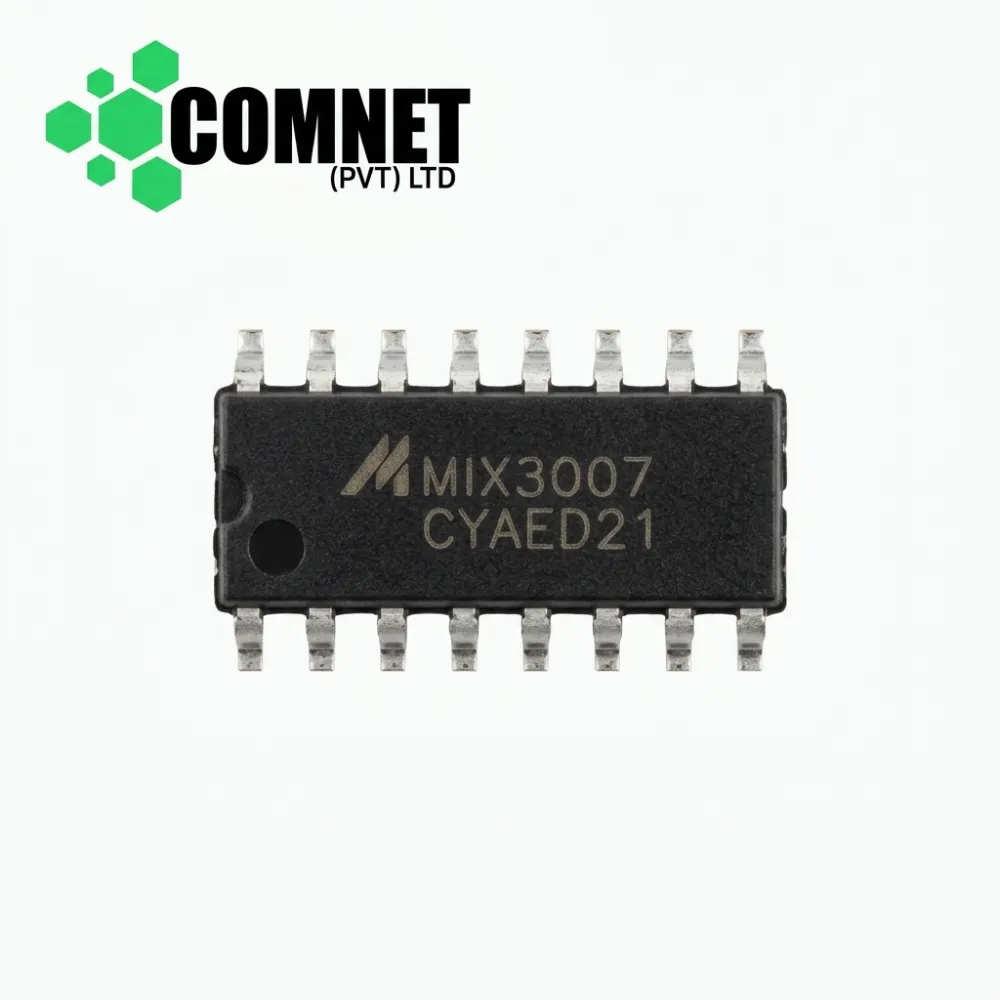

MIX3007 MIX3007S IC

• Part Number: MIX3007 / MIX3007S (Top Marking Code: MIX3007 / Lot Tracking Code: e.g., CYAED21)
• Device Type: Filterless Dual-Channel Stereo Class F Audio Power Amplifier (Selectable Class D / Class AB Mode)
• Package / Case: SOP-16 / ESOP-16 (16-Pin Surface Mount Body with Thermal Pad)
• Pin Count: 16 Pins
• Output Power ($P_{OUT}$):

• $2 \times 3.0\text{W}$ into $4\Omega$ Speaker Load @ $V_{DD} = 5.0\text{V}$ ($\text{THD+N} = 10\%$)

• $2 \times 1.7\text{W}$ into $8\Omega$ Speaker Load @ $V_{DD} = 5.0\text{V}$ ($\text{THD+N} = 10\%$)

• Operating Supply Voltage Range ($V_{DD}$): 2.5V to 5.5V

• Operating Temperature Range:$-40^\circ\text{C}\text{ to }+85^\circ\text{C}$

Short Description: High-efficiency Mixchip MIX3007 (top marking: MIX3007) dual-channel $2 \times 3\text{W}$ Class F stereo audio power amplifier IC in a 16-pin SOP package. Features flexible dual-mode architecture allowing dynamic switching between high-efficiency Class D mode and low-EMI Class AB mode. Operates over a $2.5\text{V}$ to $5.5\text{V}$ range, making it ideal for 5V USB-powered speakers, portable laptops, Bluetooth audio modules, flat-panel TVs, and portable electronics. Essential component replacement for fixing distorted audio output, repairing dead speaker channels, and restoring missing sound on laptop mainboards and audio driver boards.
