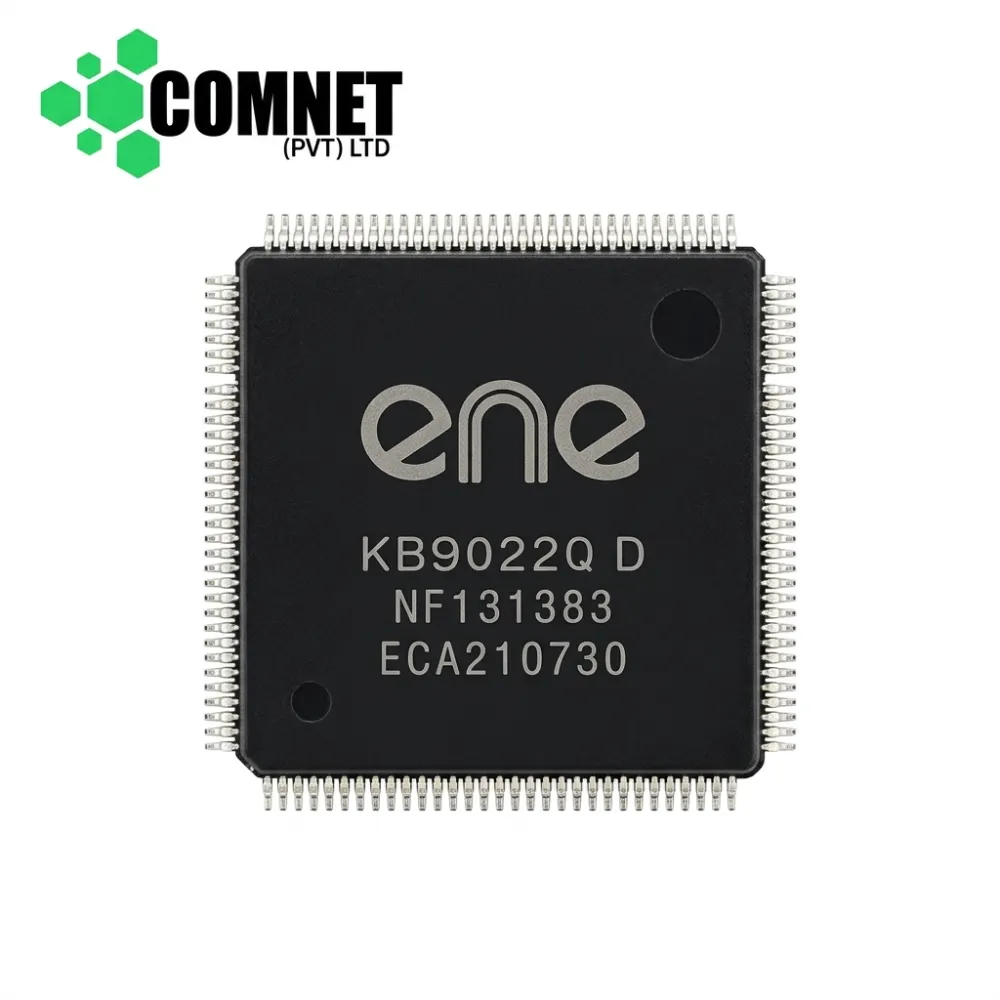

KB9022Q D IC
Product Title: KB9022Q D (Marking: KB9022Q D / NF131383 / ECA210730) Programmable Embedded Controller (EC / KBC) IC (LQFP-128)
Product Specifications:
- Part Number / Marking: KB9022Q D (Lot/Date Codes: NF131383 / ECA210730 / KB9022Q D)
- Manufacturer: ENE Technology Inc.
- Device Type: Programmable Embedded Controller / Keyboard Controller (EC / KBC)
- Package / Case: LQFP-128 (128-Pin Low-Profile Quad Flat Package, Surface Mount)
- Embedded Memory: Internal 128KB Flash Memory / eSPI & LPC Bus Interface Support
- Core Architecture: 8051-Based Embedded Microcontroller Core
- Operating Temperature Range:$-40^\circ\text{C}\text{ to }+85^\circ\text{C}$
Short Description: Highly integrated ENE KB9022Q D programmable embedded controller (EC / KBC) IC in a 128-pin LQFP package. Serves as the main system control microcontroller on laptop motherboards, overseeing crucial standby power-on sequencing, thermal management, keyboard matrix decoding, and battery charge status communication. Essential replacement component for fixing dead laptop motherboards, no power-on response, non-working keyboard/fan controls, and failed EC firmware conditions
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
