ISL95831HRTZ ISL95831 IC
Product Title: ISL95831HRTZ / ISL95831 (Marking: 95831 HRTZ / HRTZ) Dual 3+1 Phase IMVP-7 PWM Controller IC for CPU Core Power Supply (QFN-48)
Product Specifications:

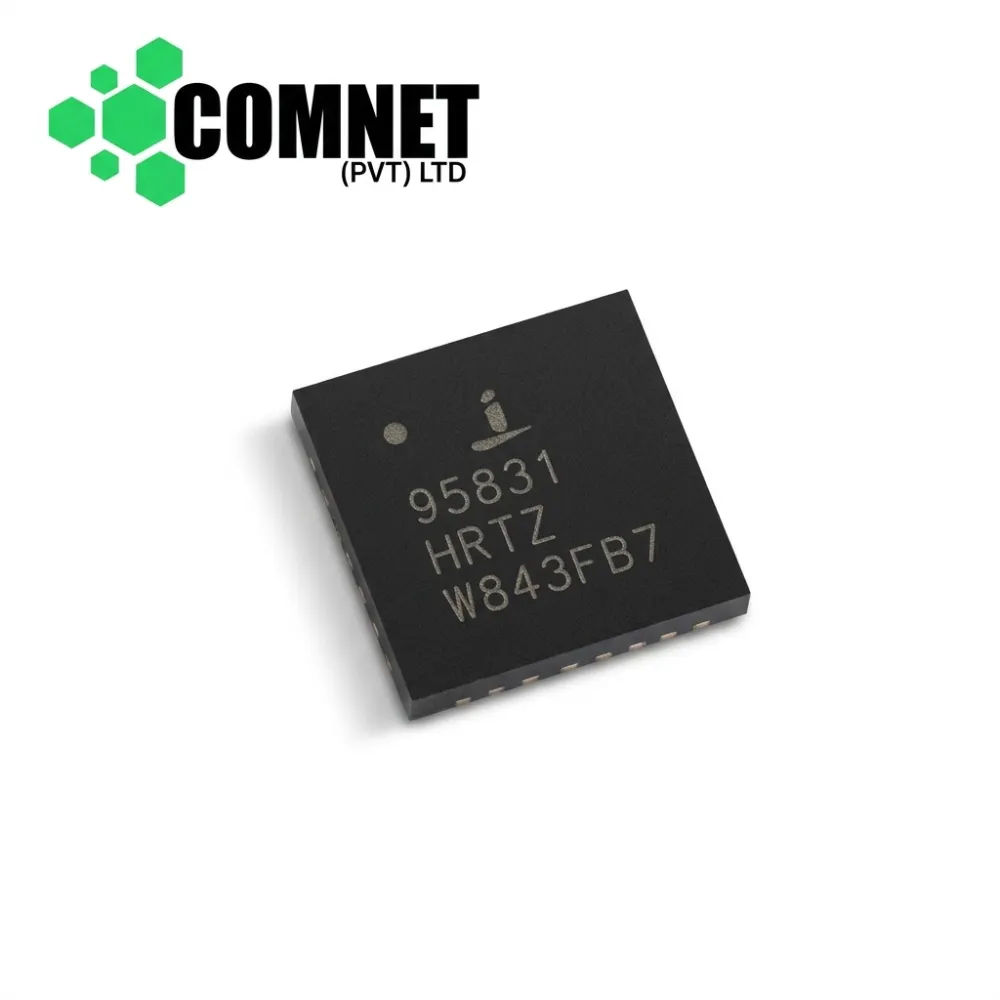

- Part Number: ISL95831HRTZ / ISL95831 (Top Marking Code: 95831 HRTZ / HRTZ / Lot Tracking Code: e.g., W843FB7)
- Device Type: Multiphase PWM Controller for IMVP-7 / VR12 CPU Core and Graphics Power Supplies
- Package / Case: QFN-48 / TQFN-48 (6x6mm Surface Mount with Exposed Thermal Pad)
- Pin Count: 48 Pins
- Input Supply Voltage ($V_{DD}$): 4.75V to 5.25V
- Operating Temperature Range:$-10^\circ\text{C}\text{ to }+100^\circ\text{C}$
Short Description: High-performance Intersil/Renesas ISL95831HRTZ (top marking: 95831 HRTZ) dual 3+1 phase PWM controller IC in a 48-pin QFN package. Specially designed to supply power to Intel IMVP-7 / VR12 compliant processors in laptop motherboards. Controls up to 3 phases for the CPU core ($V_{CORE}$) and 1 phase for integrated graphics ($V_{AXG}$) using Intersil's proprietary $R^3$ control engine. Essential replacement part for repairing dead CPU core power rails, fixing "No CPU VCORE" motherboard faults, resolving Intel SVID communication errors, and replacing damaged or shorted CPU power PWM controllers.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
