ISL95522AHRZ ISL95522A ISL95522 IC

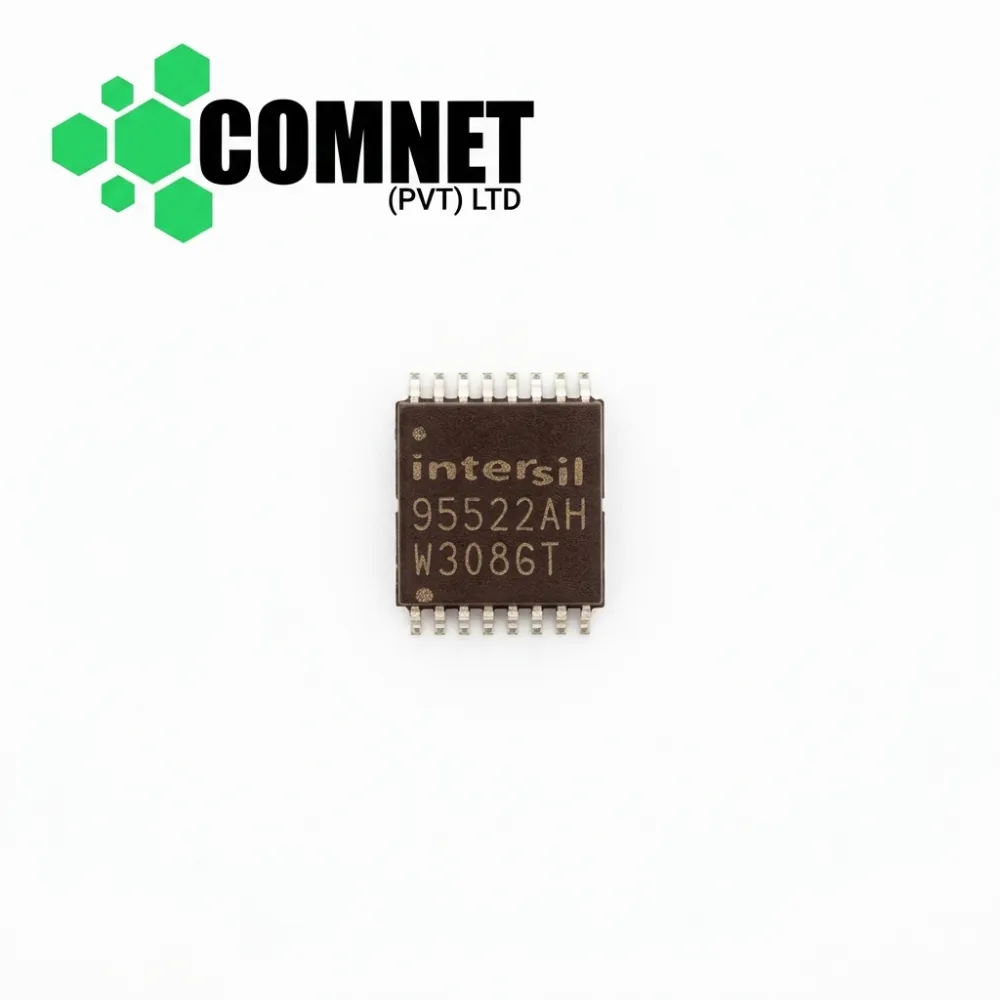

Product Title: ISL95522AHRZ / ISL95522A (Marking: 95522AH / ISL95522AHRZ) Hybrid Power Boost (HPB) SMBus Battery Charger IC (QFN-32)
Product Specifications:
- Part Number: ISL95522AHRZ / ISL95522A / ISL95522 (Top Marking Code: 95522AH / Lot Tracking Code: e.g., W308GT)
- Device Type: Hybrid Power Boost (HPB) / Narrow VDC (NVDC) Combo Battery Charger Controller
- Package / Case: QFN-32 / TQFN-32 (4x4mm Surface Mount with Exposed Pad)
- Pin Count: 32 Pins
- Input Voltage Range ($V_{IN}$): 3.8V to 24V
- Operating Temperature Range:$-10^\circ\text{C}\text{ to }+100^\circ\text{C}$
Short Description: High-performance Intersil/Renesas ISL95522AHRZ (top marking: 95522AH) Hybrid Power Boost (HPB) SMBus battery charger IC in a 32-pin QFN package. Designed for 2 to 4 cell Li-ion battery charging circuits on modern laptop motherboards and portable computers. Features support for both NVDC and HPB power architectures, allowing the battery to supplement the AC adapter during peak power loads. Communicates via SMBus with the Embedded Controller (EC) for precise voltage and current control. Essential replacement component for resolving laptop power input failures, fixing "Plugged In, Not Charging" faults, restoring broken PROCHOT# logic, and replacing burnt primary charging controllers.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
