ISL6266AHRZ IC

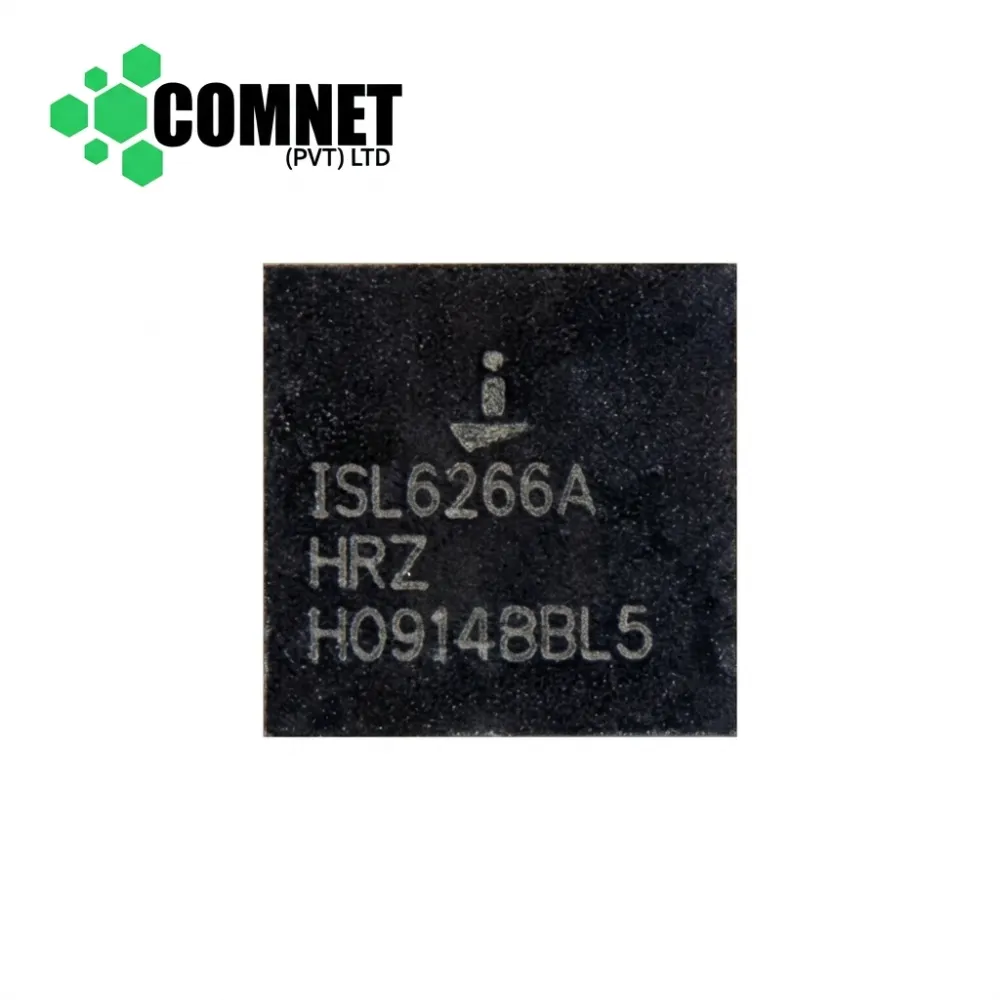

Product Title: ISL6266AHRZ (Marking: ISL6266A HRZ / H0914BBL5) Multiphase Core Voltage Regulator PWM Controller IC (QFN-48 / 7x7mm)
Product Specifications:
- Part Number / Marking: ISL6266AHRZ (Top Marking Code: ISL6266A HRZ / H0914BBL5)
- Device Type: Multiphase Core Voltage (CPU VCORE) PWM Controller for IMVP-6/6+
- Package / Case: QFN-48 / TQFN-48 (48-Pin Surface Mount, 7x7mm Package with Exposed Thermal Pad)
- Input Voltage Range ($V_{IN}$): $5\text{V to }25\text{V DC}$ (Primary Battery / Adapter Bus)
- Logic Supply Voltage ($V_{CC}$): $5\text{V DC}$
- Supported CPU Standard: Intel Mobile Voltage Positioning (IMVP-6 / IMVP-6+)
- Output Channels: 2-Phase Interleaved Synchronous Buck Controller
- Control Architecture: Robust Ripple Regulator ($R^3$™) Technology for Fast Dynamic Transient Response
- Operating Temperature Range:$-10^\circ\text{C}\text{ to }+100^\circ\text{C}$
Short Description: Renesas / Intersil ISL6266AHRZ (top marking: ISL6266A HRZ) 2-phase synchronous buck PWM controller IC in a 48-pin QFN package. Powered by Intersil’s proprietary $R^3$™ technology, it delivers fast transient response, high efficiency, and precise power management for CPU VCORE rails adhering to Intel IMVP-6/6+ specifications. Widely utilized in laptop motherboards and industrial embedded computing boards. Essential replacement component for repairing missing CPU core voltage ($V_{CORE}$), CPU power rail short circuits, system boot loops, and power-on failures.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
