HGTG11N120CND 11N120CND TRANSISTOR

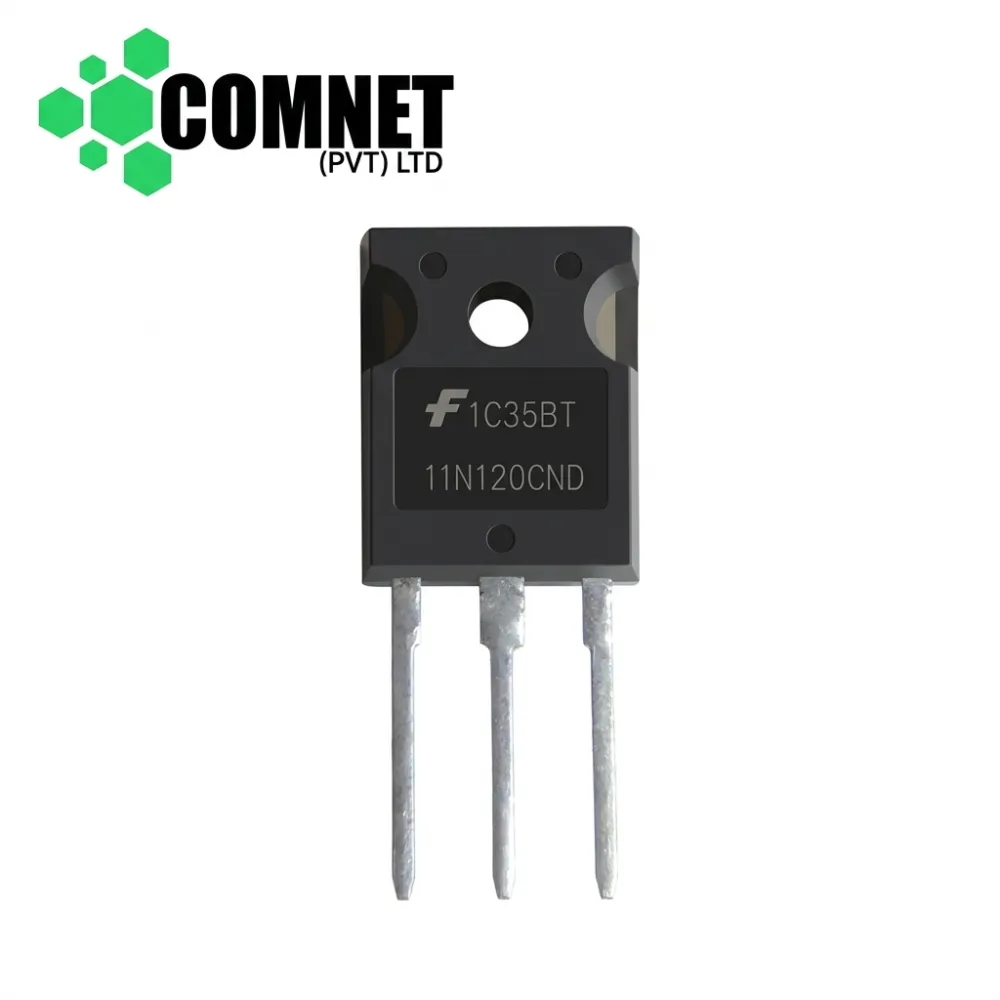

Product Title: onsemi / Fairchild HGTG11N120CND 1200V 43A N-Channel NPT Power IGBT with Anti-Parallel Hyperfast Diode (Top Marking: 1C35BT / 11N120CND, TO-247 Package)
Product Specifications:
- Part Number / Marking: HGTG11N120CND / 11N120CND (Top Package Line 1: 11N120CND or HGTG11N120CND, Line 2/3: 1C35BT representing wafer batch, assembly origin, and production tracking date codes)
- Manufacturer:onsemi / Fairchild Semiconductor
- Device Type:Non-Punch Through (NPT) Series N-Channel Insulated Gate Bipolar Transistor (IGBT) with Integrated Anti-Parallel Hyperfast Free-Wheeling Diode
- Package / Case: TO-247-3LD (High-power 3-pin through-hole package)
- Short Circuit Withstand Time ($t_{SC}$): $15\,\mu\text{s}$ at $V_{GE} = 12\text{V}$
- Operating Junction Temperature Range ($T_J$): $-55^\circ\text{C to }+150^\circ\text{C}$
- Total Power Dissipation ($P_D$):$298\text{W}$ at $T_C = 25^\circ\text{C}$
Short Description: The HGTG11N120CND (marked with batch tracking code 1C35BT) is an industrial-grade $1200\text{V}$, $43\text{A}$ Non-Punch Through (NPT) N-Channel IGBT co-packaged with a hyperfast soft-recovery anti-parallel diode in a TO-247 package. Combining high input impedance with low conduction losses, short-circuit withstand rating, and robust switching capability, it is engineered for high-voltage industrial applications operating at moderate frequencies. An essential replacement transistor for repairing induction heating units, inverter welding power sources, high-voltage solar inverters, motor drives, solenoids, and uninterruptible power supplies (UPS).
