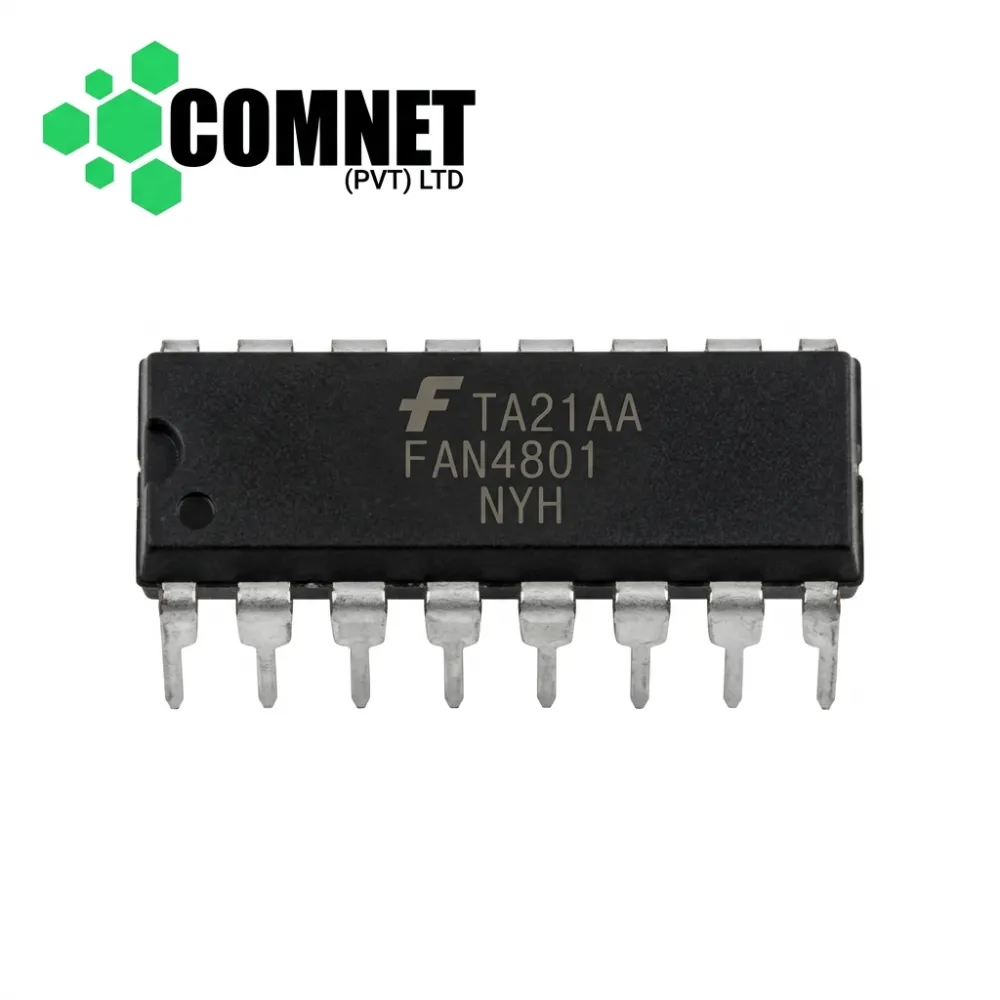

FAN4801NYH PFC/PWM CONTROLLER IC
Product Title: Fairchild / onsemi FAN4801NYH PFC & PWM Combo Controller IC (16-Pin DIP Through-Hole Package)
Product Specifications:
- Part Number / Marking: FAN4801NYH (Package Marking Code: FAN4801NYH or FAN4801NY, line 2 date/lot code)
- Manufacturer: Fairchild Semiconductor / onsemi
- Device Type: Power Factor Correction (PFC) & Pulse Width Modulation (PWM) Combination Controller IC
- Package / Case: DIP-16 / PDIP-16 (16-Pin Dual In-line Plastic Package)
- Supply Voltage ($V_{DD}$ Operating Range): $11\text{V to } 26\text{V DC}$ (Absolute Maximum: $30\text{V}$)
- Operating Junction Temperature Range ($T_J$):$-40^\circ\text{C to }+105^\circ\text{C}$
Short Description: The Fairchild / onsemi FAN4801NYH is an advanced 16-pin DIP PFC/PWM combination controller IC engineered for high-efficiency offline switch-mode power supplies. Combining leading-edge Average Current Mode PFC control with trailing-edge PWM logic into a single integrated circuit, it achieves power factor correction near unity while minimizing primary filter capacitance requirements. Widely used in desktop PC ATX power supplies, server power modules, high-wattage LED power supplies, and industrial AC-DC converters.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
