UC3843BN IC

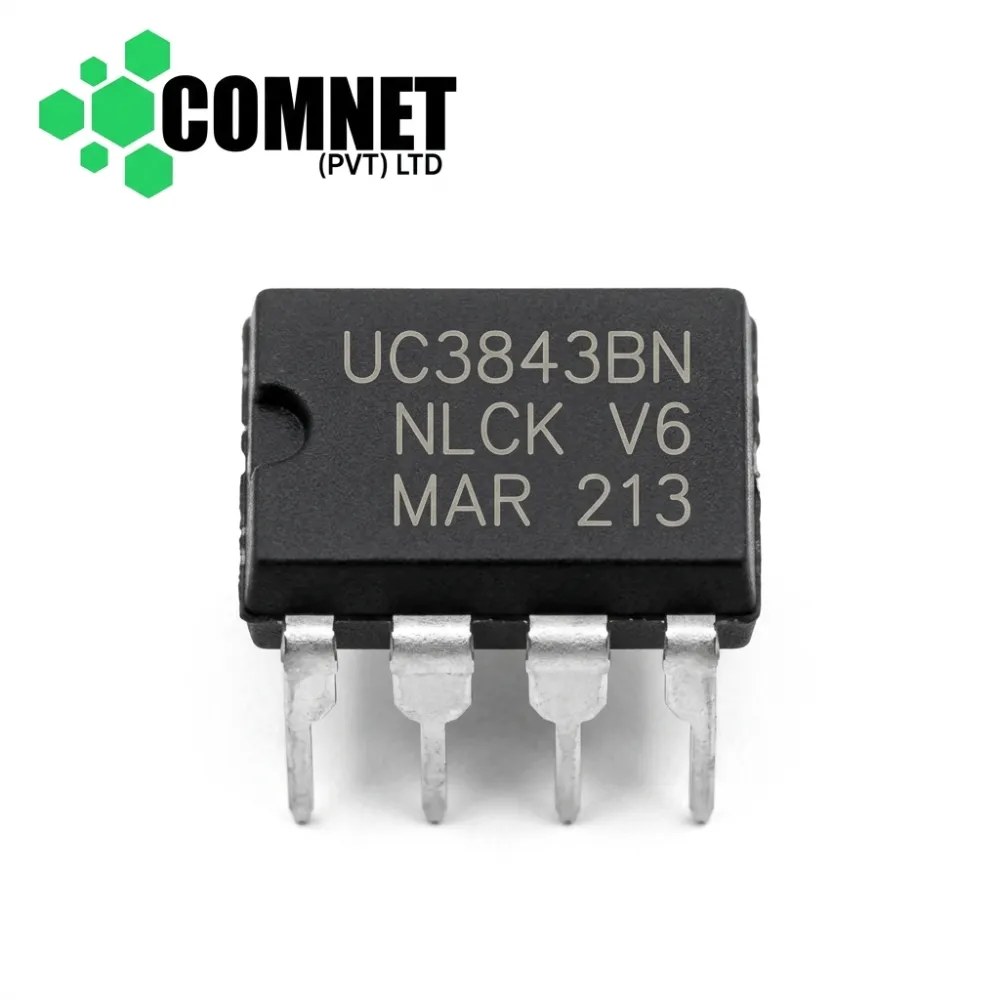

Product Title: UC3843BN (Marking: UC3843BN / NLCK V6 / MAR 213) High-Performance Current-Mode PWM Controller IC (DIP-8)
Product Specifications:
- Part Number / Marking: UC3843BN (Top Marking Code: UC3843BN / NLCK V6 / MAR 213)
- Manufacturer: STMicroelectronics / Texas Instruments / ON Semiconductor
- IC Type: Fixed-Frequency Current-Mode PWM Switch-Mode Power Supply (SMPS) Controller
- Package / Case: DIP-8 / PDIP-8 (8-Pin Dual In-line Plastic Package, Through-Hole)
- Operating Supply Voltage ($V_{CC}$): Up to $30\text{V}$ Max
- Operating Ambient Temperature Range ($T_A$):$0^\circ\text{C}\text{ to }+70^\circ\text{C}$
Short Description: Industry-standard STMicroelectronics / Texas Instruments UC3843BN (top marking code: UC3843BN) current-mode pulse width modulation (PWM) controller IC in a standard 8-pin DIP package. Specially designed for off-line flyback, boost, and DC-DC converter applications requiring minimal external components. Features a low UVLO threshold ($8.4\text{V}$ Turn-On / $7.6\text{V}$ Turn-Off) with up to $100\%$ duty cycle capability and a high-current totem-pole output stage capable of directly driving power MOSFET gates. Widely used in power supply adapters, desktop PC PSUs, battery charger controllers, industrial DC-DC converters, and auxiliary SMPS circuits. Essential replacement component for repairing blown power adapter boards, ATX power supply primary control stages, and DC-DC boost modules.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
