SY8286CRAC SY8286C IC

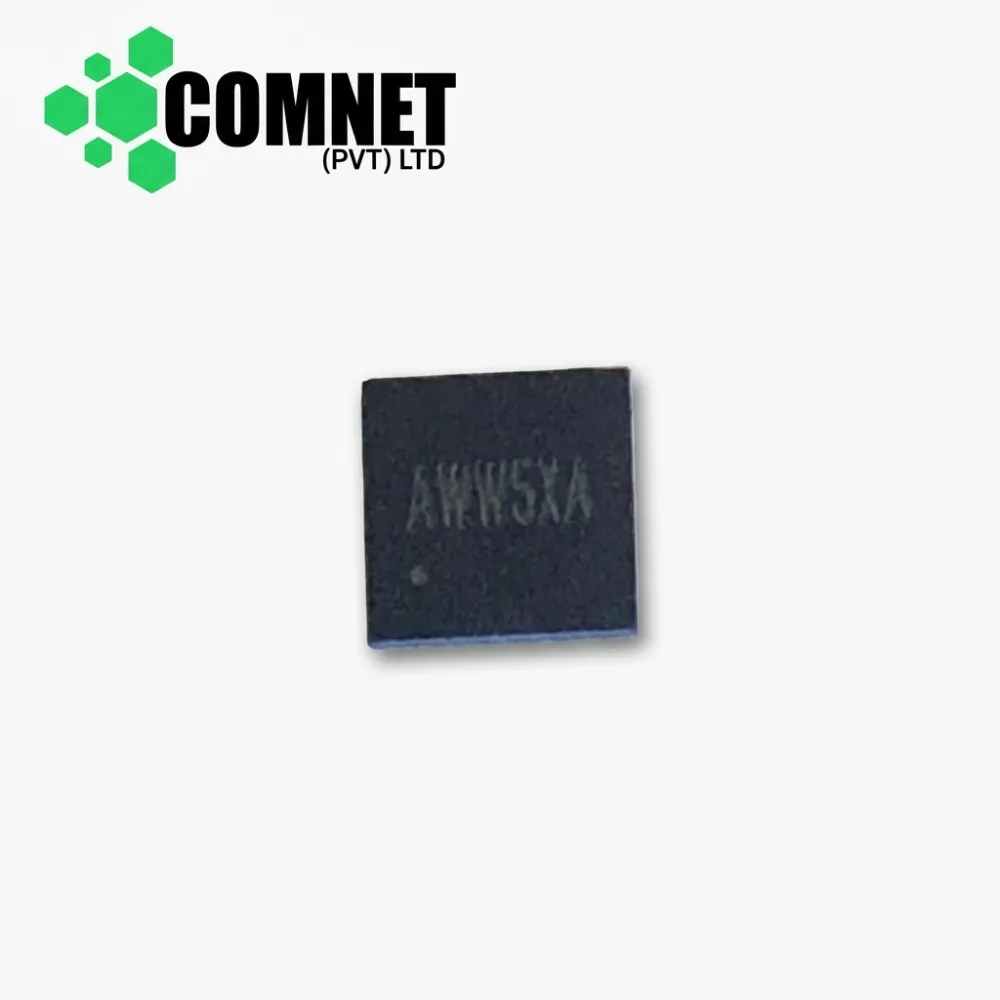

Product Title: SY8286CRAC (Marking: AWW / AWWxxx) High-Efficiency 8A Synchronous Step-Down Regulator IC (QFN-20 3x3)
Product Specifications:
- Part Number: SY8286CRAC / SY8286C (Top Marking Code: AWW / AWWxxx - e.g., AWW5XA)
- Device Type: High-Efficiency Synchronous Step-Down (Buck) DC-DC Converter / PWM Controller
- Package / Case: QFN3x3-20 (Surface Mount)
- Pin Count: 20 Pins
- Input Voltage Range: 4V to 23V
- Output Voltage Range: Adjustable / Fixed (Typically configured for 3.3V or 5V System Standby Power Rails)
- Continuous Output Current: 8A
- Switching Frequency: 600 kHz
- Control Architecture: Instant-PWM™ Control for Fast Transient Response
- Integrated Regulators: Internal Low-$R_{DS(on)}$ Power MOSFETs and Always-On LDO Regulator
Short Description: High-performance Silergy SY8286CRAC (top marking: AWW) integrated synchronous step-down converter IC in a compact 20-pin 3x3 QFN package. Delivering up to 8A continuous output current, this IC is designed to power main system rails on high-performance laptop motherboards (including Asus, Lenovo, HP, Acer, and MSI). Features high power density with integrated low-resistance switches and an always-on internal LDO regulator. Essential for component-level laptop motherboard repairs to replace shorted 3.3V/5V standby PWM controllers, restore missing primary power rails, and fix dead or no-power motherboard issues.
IC උපාන්ග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය
පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ්
අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත
පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ.
1.00 Rs
1.00 Rs
-
