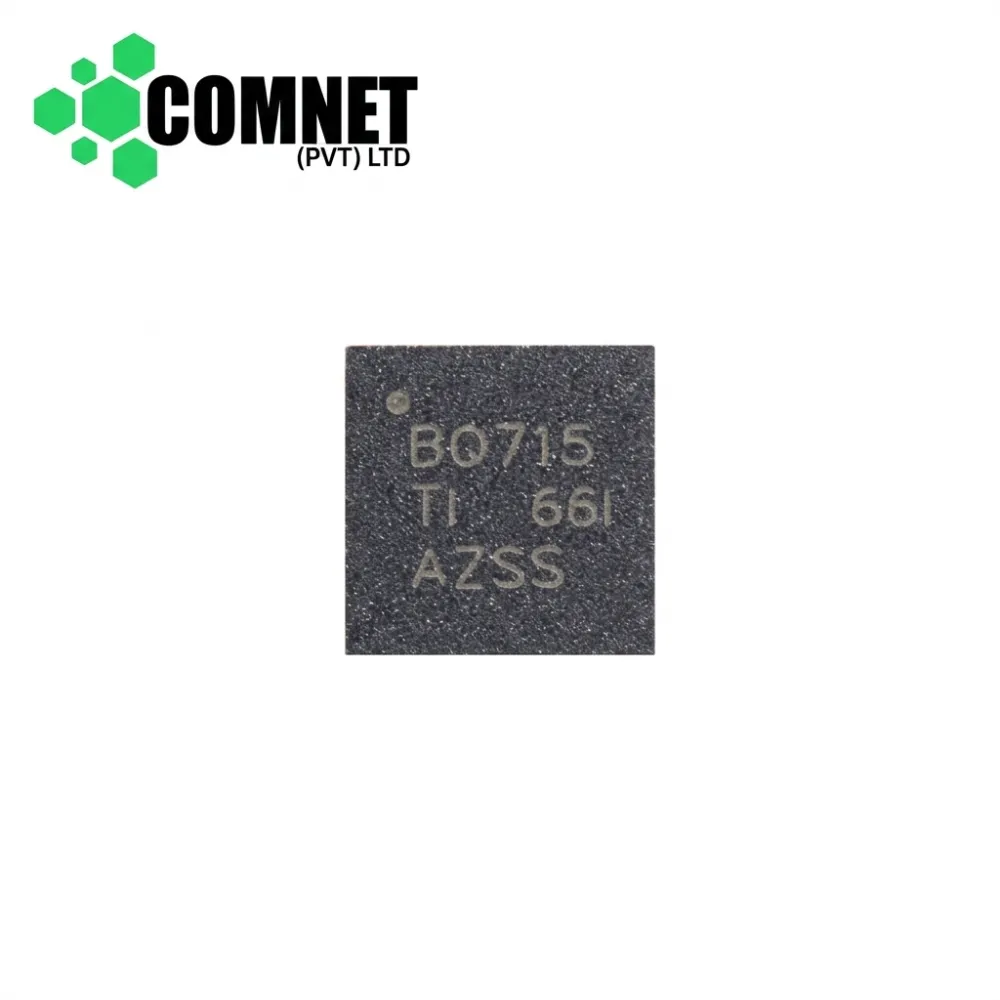

BQ24715 BQ24715RGRR BQ24715RGRT IC
Product Title: BQ24715RGRR (Marking: BQ715 / 24715) 1-4 Cell Li+ NVDC SMBus Battery Charge Controller IC (VQFN-20)
Product Specifications:
- Part Number: BQ24715RGRR / BQ24715 / BQ24715RGRT (Top Marking Code: BQ715 / 24715)
- Device Type: Synchronous Switch-Mode NVDC-1 SMBus Battery Charge Controller & System Power-Path Management IC
- Package / Case: VQFN-20 / QFN-20 3.5x3.5 (Surface Mount)
- Pin Count: 20 Pins
- Input Voltage Range: 4.5V to 24V
- Battery Chemistry: 1-Cell, 2-Cell, 3-Cell, or 4-Cell Li-Ion / Li-Polymer Batteries
- Power Path Architecture: Narrow Voltage DC (NVDC-1) management, integrated N-channel MOSFET gate drivers for ACFET, RBFET, and BATFET
- Control Protocol: SMBus Programmable Charge Voltage, Charge Current, and Input Current Limit
- Features: Dynamic Power Management (DPM), PROCHOT# monitoring output, adapter current readout
Short Description: High-efficiency Texas Instruments BQ24715RGRR (top marking: BQ715) synchronous NVDC SMBus battery charge controller IC in a compact 20-pin VQFN package. Designed for 1 to 4 cell Li-Ion battery charging and advanced system power path management in laptops, ultrabooks, and portable devices. Utilizes NVDC-1 architecture to keep the system voltage regulated slightly above the battery voltage, allowing lower voltage system components and instant system turn-on even with a fully discharged battery. Essential for component-level laptop motherboard repairs to fix "Plugged in, Not Charging" errors, restore dead charging/system rails, and replace damaged charging controller chips.
IC උපාන්ග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය
පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ්
අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත
පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ.
1.00 Rs
1.00 Rs
-
