BQ24707RGRR BQ24707 BQ24707RGRT IC

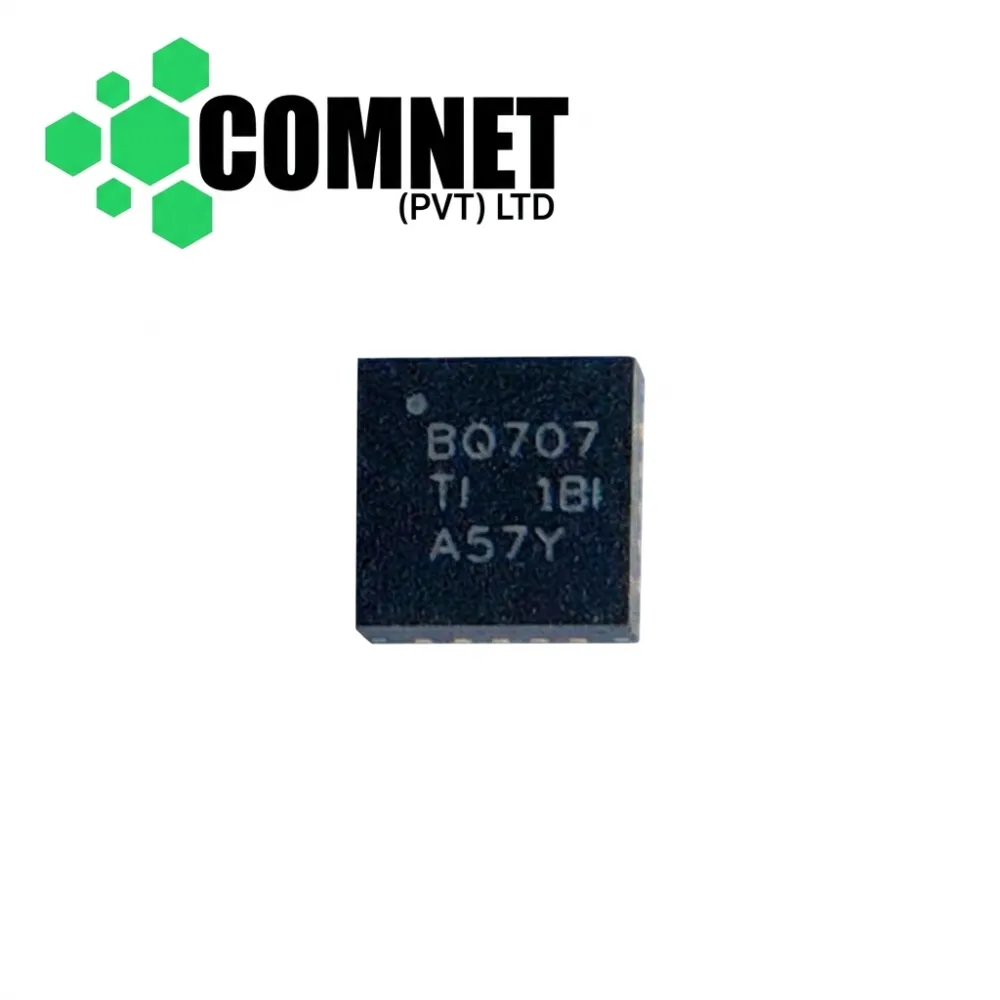

Product Title: BQ24707RGRR (Marking: BQ707 / 24707) 1-4 Cell Li+ SMBus Battery Charge Controller IC (VQFN-20)
Product Specifications:
- Part Number: BQ24707RGRR / BQ24707 / BQ24707RGRT (Top Marking Code: BQ707 / 24707)
- Device Type: Synchronous Switch-Mode SMBus Battery Charge Controller & System Power-Path Management IC
- Package / Case: VQFN-20 / QFN-20 3.5x3.5 (Surface Mount)
- Pin Count: 20 Pins
- Input Voltage Range: 4.5V to 24V
- Battery Chemistry: 1-Cell, 2-Cell, 3-Cell, or 4-Cell Li-Ion / Li-Polymer Batteries
- System Power Selector: Integrated drivers for N-channel MOSFET ACFET, RBFET, and BATFET power path switching
- Control Protocol: SMBus Programmable Voltage and Current Regulation
Short Description: High-efficiency Texas Instruments BQ24707RGRR (top marking: BQ707) synchronous SMBus battery charge controller IC housed in a 20-pin VQFN package. Designed for 1 to 4 cell Li-Ion battery charging and dynamic power path management in laptops, ultrabooks, and portable electronics. Features integrated gate drivers for automatic switching between AC adapter and battery power sources, high-accuracy charge voltage and current regulation via SMBus, and real-time adapter current monitoring. Essential for component-level laptop motherboard repairs, fixing battery charging failures, resolving "Plugged in, Not Charging" errors, and replacing damaged charging ICs.
IC උපාන්ග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය
පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ්
අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත
පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ.
1.00 Rs
1.00 Rs
-
