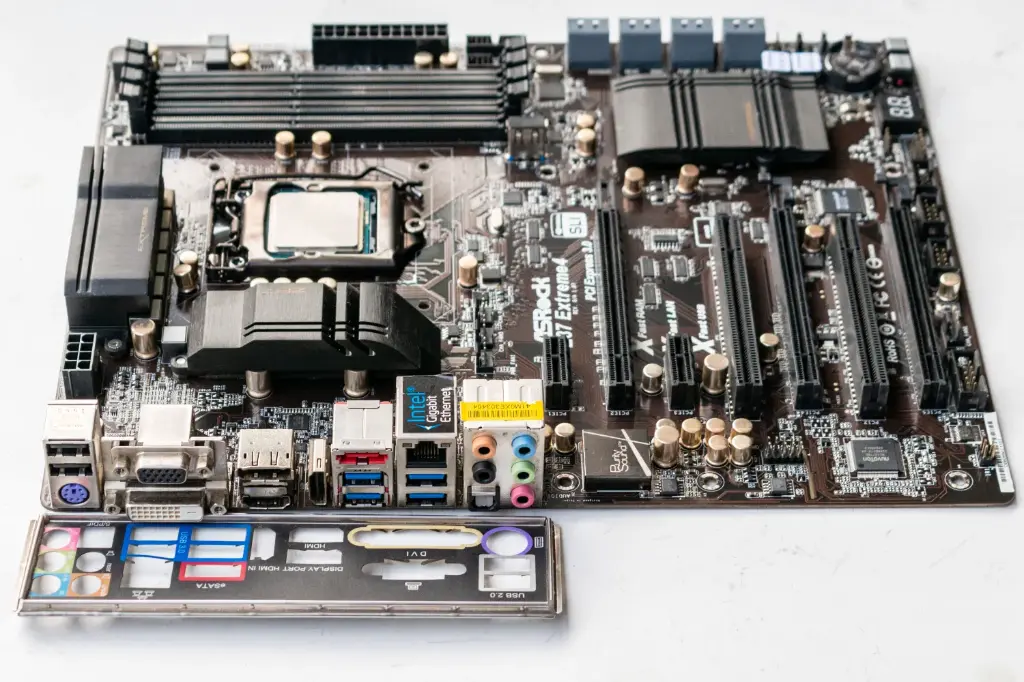

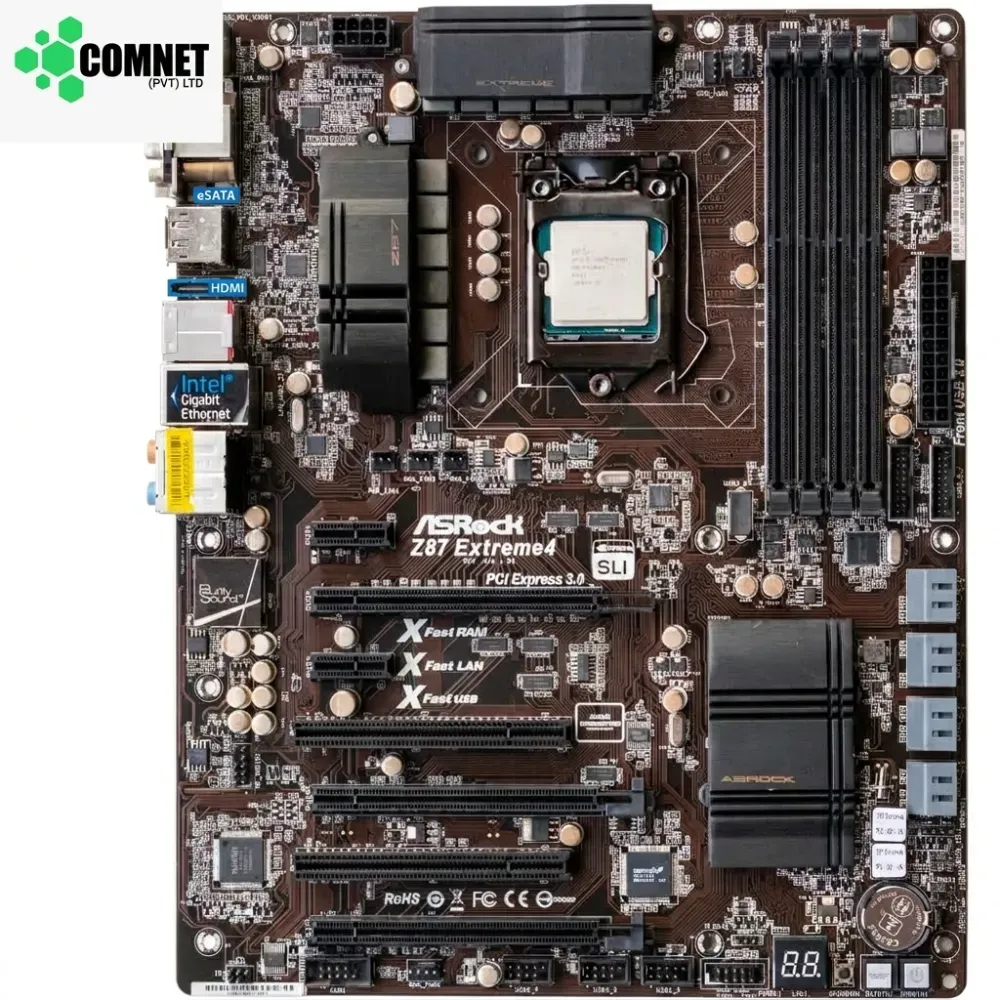

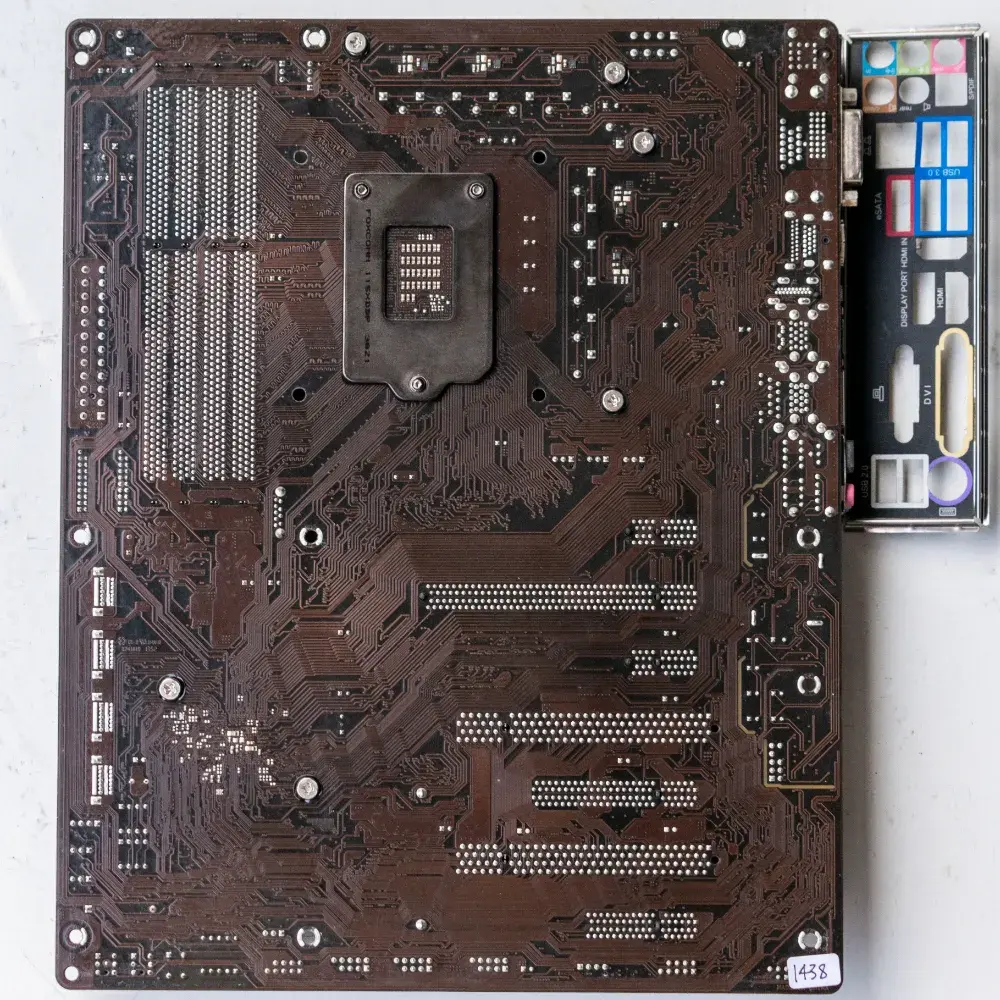

ASROCK Z87 EXTREME4 PCI EXPRESS 3.0 USED MOTHERBOARD

• Model / Board Name: ASRock Z87 Extreme4
• Form Factor: ATX Form Factor ($30.5\text{ cm} \times 24.4\text{ cm}$)
• CPU Socket: Intel Socket LGA 1150
• Supported Processors: Intel 4th Gen Core i7 / i5 / i3 / Xeon / Pentium / Celeron Processors (Haswell Architecture)
• Chipset: Intel Z87 Express Chipset
• Memory Support: 4 x DDR3 DIMM Slots, Max. 32GB, Dual-Channel, Supports DDR3 2933+(OC) / 1600 / 1333 / 1066 MHz Non-ECC Un-buffered Memory
• Expansion Slots:

• 3 x PCI Express 3.0 x16 Slots (Supports AMD Quad CrossFireX & NVIDIA Quad SLI)

• 1 x PCI Express 2.0 x1 Slot

• 2 x PCI Slots

• Storage Options:

  • 8 x SATA3 6.0 Gb/s Connectors (6 x Intel Z87 supporting RAID 0, 1, 5, 10; 2 x ASMedia ASM1061)

  • 1 x eSATA3 Connector

Short Description: Tested working used ASRock Z87 Extreme4 LGA 1150 ATX motherboard featuring Intel Z87 chipset support for 4th Generation Intel Core processors. Equipped with 3 x PCIe 3.0 x16 slots, Quad SLI/CrossFireX capability, 8 x SATA3 ports, and high-fidelity Purity Sound technology. Ideal for budget gaming builds, desktop PC repairs, custom workstations, and direct motherboard replacement.
