2200µF 25V CAPACITOR

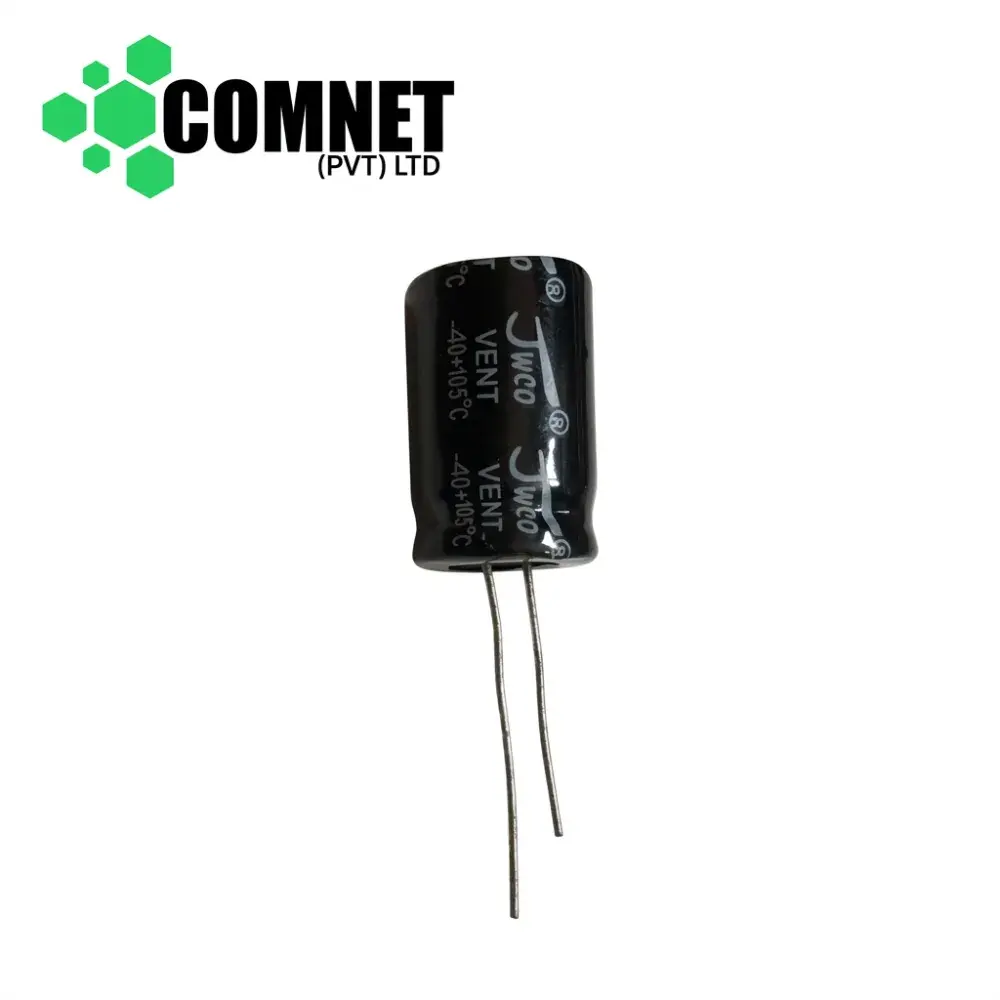

Product Title: 2200µF 25V High-Capacity Radial Lead Aluminum Electrolytic Capacitor (105°C Heavy Duty)
Product Specifications:
- Capacitance Value:$2200\,\mu\text{F}$ (2200 Microfarads)
- Working Voltage Rating ($V_{DC}$): $25\text{V DC}$ (Surge voltage up to $32\text{V DC}$)
- Capacitance Tolerance: $\pm 20\%$ (M Tolerance Code at $120\text{Hz}, 20^\circ\text{C}$)
- Capacitor Type: Polarized Aluminum Electrolytic Capacitor
- Mounting Style / Package: Radial Leaded Through-Hole DIP
- Temperature Rating: $-40^\circ\text{C to }+105^\circ\text{C}$ (High-temperature endurance rating)
- Lifetime / Endurance: $2000\text{ to } 3000\text{ hours}$ at $105^\circ\text{C}$
- Dissipation Factor ($\tan \delta$): $\le 0.16$ at $120\text{Hz}, 20^\circ\text{C}$
- Lead Pitch / Spacing: $5.0\text{mm}$ to $7.5\text{mm}$ standard radial lead pitch
- Dimensions (Approx.): $12.5\text{mm} \times 20\text{mm}$ or $13\text{mm} \times 25\text{mm}$ (Outer diameter $\times$ height)
Short Description: High-capacity $2200\,\mu\text{F}$$25\text{V}$ radial lead aluminum electrolytic capacitor rated for heavy-duty operation up to $105^\circ\text{C}$. Engineered for low-voltage secondary output filtering, low ESR ripple current suppression, and DC smoothing in switch-mode power supplies (SMPS). An essential replacement capacitor for repairing $12\text{V}$ and $19\text{V}$ secondary power rails in LCD/LED TV mainboards, audio power amplifiers, desktop ATX power supplies, set-top boxes, and automotive electronics showing signs of bulging or high ESR failure.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
