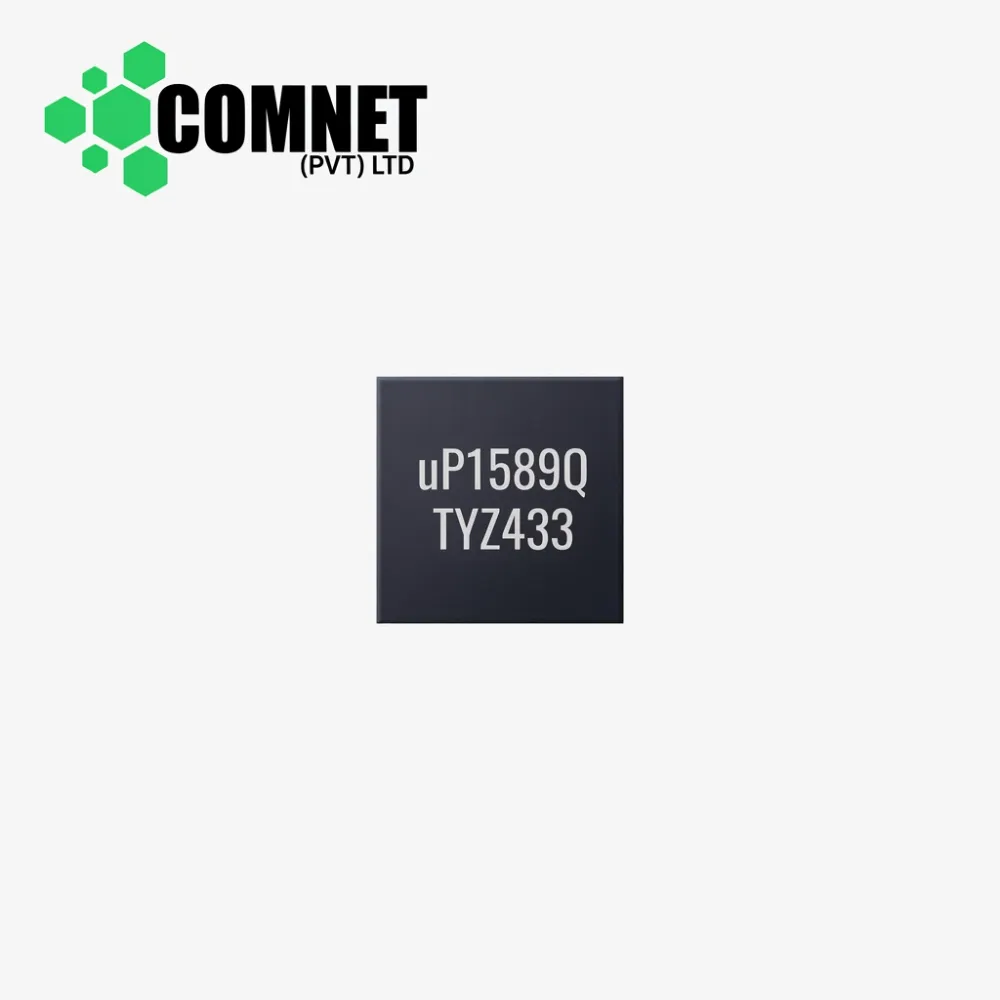

uP1589Q IC
Product Title: uP1589Q (Marking: TYZ / TYZ433) Dual Synchronous Step-Down Controller IC for 3.3V / 5V Laptop Standby Power (WQFN-20L 3x3)
Product Specifications:
- Part Number / Marking: uP1589Q (Top Marking Code: TYZ / TYZ433)
- Device Type: Dual Synchronous Step-Down (Buck) PWM Controller IC with Integrated LDOs
- Package / Case: WQFN-20L 3x3 (20-Pin Surface Mount with Exposed Thermal Pad)
- Input Voltage Range ($V_{IN}$): $5.5\text{V to }26\text{V DC}$ (Primary Adapter / Battery Power Rail)
- Operating Temperature Range:$-40^\circ\text{C}\text{ to }+85^\circ\text{C}$
Short Description: High-efficiency uPI Semiconductor uP1589Q (top marking: TYZ) dual synchronous step-down PWM controller IC in a 20-pin WQFN package. Specifically designed to control the $3.3\text{V}$ and $5\text{V}$ primary standby power rails (3VALW / 5VALW) on laptop motherboards and embedded logic systems. Integrates dual linear regulators (3.3V and 5V LDOs) to supply low-power system management and Embedded Controllers (EC) prior to main board startup. Essential replacement component for repairing dead laptop motherboards, missing $3.3\text{V}/5\text{V}$ standby rails, short-circuit power cuts, and power-on failure conditions.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
