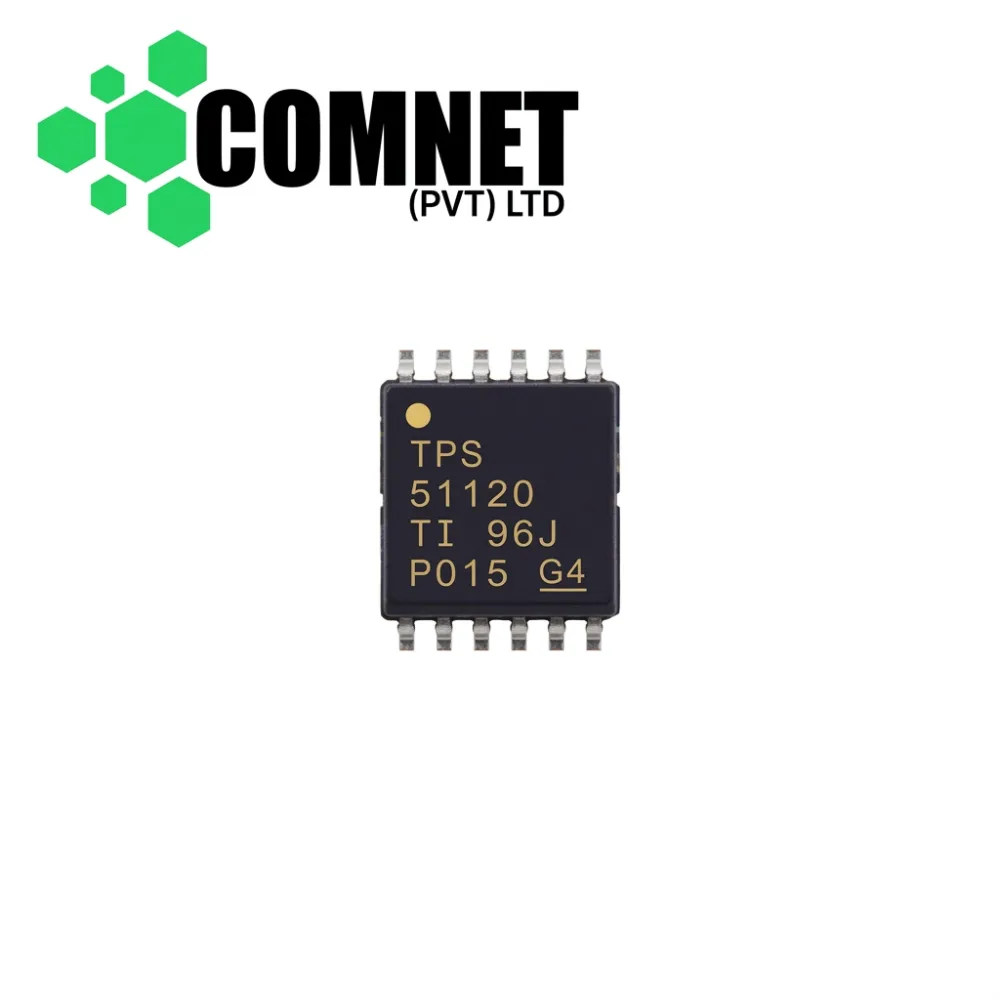

TPS51120PW TPS51120PWR TPS51120 IC
Product Title: TPS51120 (Marking: TPS51120) Dual Synchronous Step-Down Controller IC for 3.3V/5V Standby Power (TSSOP-32)
Product Specifications:
- Part Number: TPS51120PW / TPS51120PWR / TPS51120 (Top Marking Code: TPS51120)
- Device Type: Dual Synchronous Step-Down (Buck) Controller IC for Main System Power
- Package / Case: TSSOP-32 / PW-32 (Surface Mount)
- Pin Count: 32 Pins
- Input Voltage Range: 4.5V to 28V
- Dual Power Outputs: Adjustable 3.3V and 5V Switching Regulators ($V_{OUT1}$ / $V_{OUT2}$)
- Auxiliary Regulators: Dual 100mA Always-On Linear Regulators (5V LDO / 3.3V LDO)
- Control Architecture: Out-of-Audio™ Mode Operation for High Efficiency at Light Loads
Short Description: High-efficiency Texas Instruments TPS51120 (top marking: TPS51120) dual synchronous step-down PWM controller IC housed in a 32-pin TSSOP package. Engineered to generate the primary 3.3V and 5V system power rails in laptop motherboards, notebooks, and mobile workstations. Features integrated 100mA always-on LDO linear regulators, out-of-audio pulse-skipping mode for noise-free light load operation, power-good monitoring, and full protection circuitry (OVP, UVP, OCP, OTP). Essential for component-level laptop motherboard repairs, resolving missing 3.3V/5V standby power rails, fixing no-power/dead motherboard faults, and replacing damaged main power controller chips.
IC උපාන්ග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය
පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ්
අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත
පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ.
1.00 Rs
1.00 Rs
-
