TNY274PN TNY274P IC

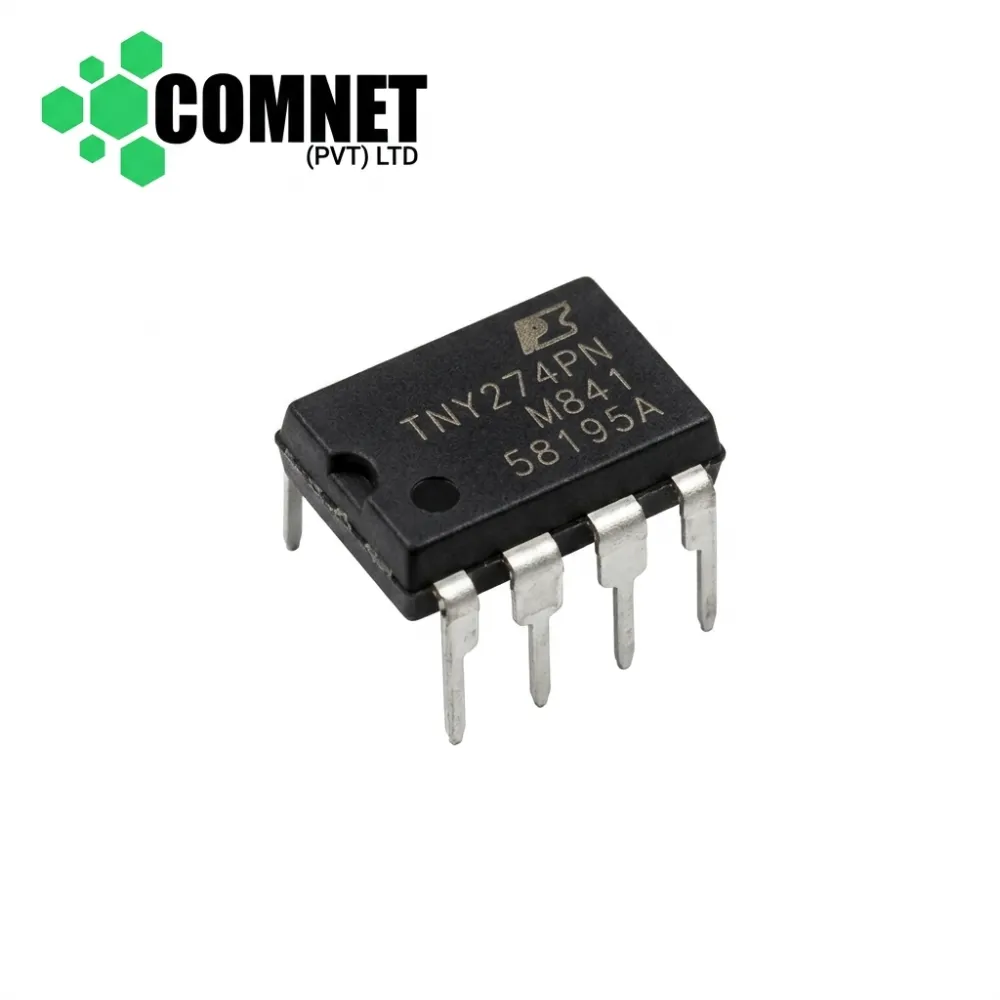

Product Title: Power Integrations TNY274PN / TNY274P TinySwitch-III Off-Line Switcher IC (DIP-8C Package)
Product Specifications:
- Part Number / Marking: TNY274PN / TNY274P (Top Package Marking Line 1: TNY274PN, Line 2: M841 or 58195A representing factory lot, assembly code, and date tracking codes)
- Manufacturer: Power Integrations
- Function: High-Voltage Off-Line Switcher / AC-DC PWM Controller with Integrated 700V Power MOSFET
- Package / Case: DIP-8C (Through-Hole 8-Pin Enhanced DIP Package with Extended Creepage Pins)
- Operating Junction Temperature Range:$-40^\circ\text{C to }+150^\circ\text{C}$
Short Description: The Power Integrations TNY274PN (marked with lot codes like M841 or 58195A) is an energy-efficient, off-line switch-mode power supply (SMPS) controller integrating a $700\text{V}$ high-voltage power MOSFET, oscillator, high-voltage switched current source, current limit, and thermal protection functions into a single DIP-8 package. Designed for low-power AC-DC flyback power supplies, it delivers high efficiency with minimal external components. An essential replacement IC for repairing auxiliary power supplies in LCD/LED monitors, set-top boxes, smart chargers, appliance control boards, and small router adapters.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
