TK2R9E10PL MOSFET

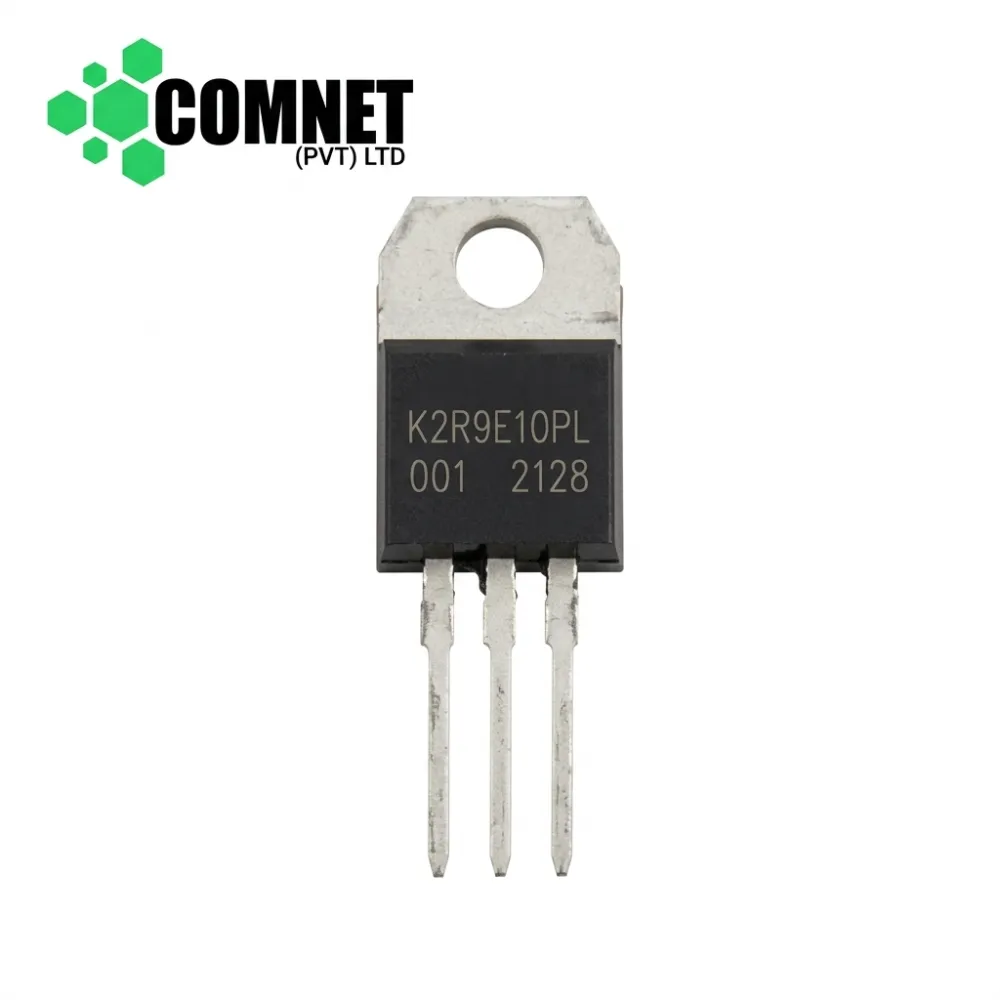

Product Title: TK2R9E10PL (Marking: TK2R9E10PL / 001 / 2128) 100V 100A Ultra-Low RDS(on) N-Channel Logic-Level Power MOSFET (TO-220)
Product Specifications:
- Part Number / Marking: TK2R9E10PL (Top Marking Code: TK2R9E10PL / 001 / 2128)
- Manufacturer: Toshiba Electronic Devices & Storage
- Transistor Type: N-Channel Power MOSFET (U-MOS IX-H Logic-Level Trench Process)
- Package / Case: TO-220 (3-Pin Through-Hole High-Power Package)
- Drain-Source Voltage ($V_{DSS}$): $100\text{V}$
- Total Power Dissipation ($P_D$): $180\text{W}$ at $T_C = 25^\circ\text{C}$
- Single-Pulse Avalanche Energy ($E_{AS}$): $121\text{ mJ}$
- Operating Junction Temperature Range ($T_J$): $-55^\circ\text{C}\text{ to }+175^\circ\text{C}$
Short Description: High-efficiency Toshiba TK2R9E10PL (top marking code: TK2R9E10PL) $100\text{V}$, $100\text{A}$ logic-level N-channel power MOSFET in a 3-pin TO-220 package. Built using Toshiba's advanced U-MOS IX-H trench technology to achieve an exceptionally low on-state resistance ($2.9\text{m}\Omega$ max) and low gate charge ($Q_g$), enabling logic-level $4.5\text{V}$ gate drive operation. Widely used in high-efficiency switching power supplies (SMPS), synchronous rectification stages, high-current DC-DC converters, motor speed controllers, and solar inverters. Essential replacement component for repairing blown high-power inverter output stages, DC motor controller boards, and industrial switching circuits.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
