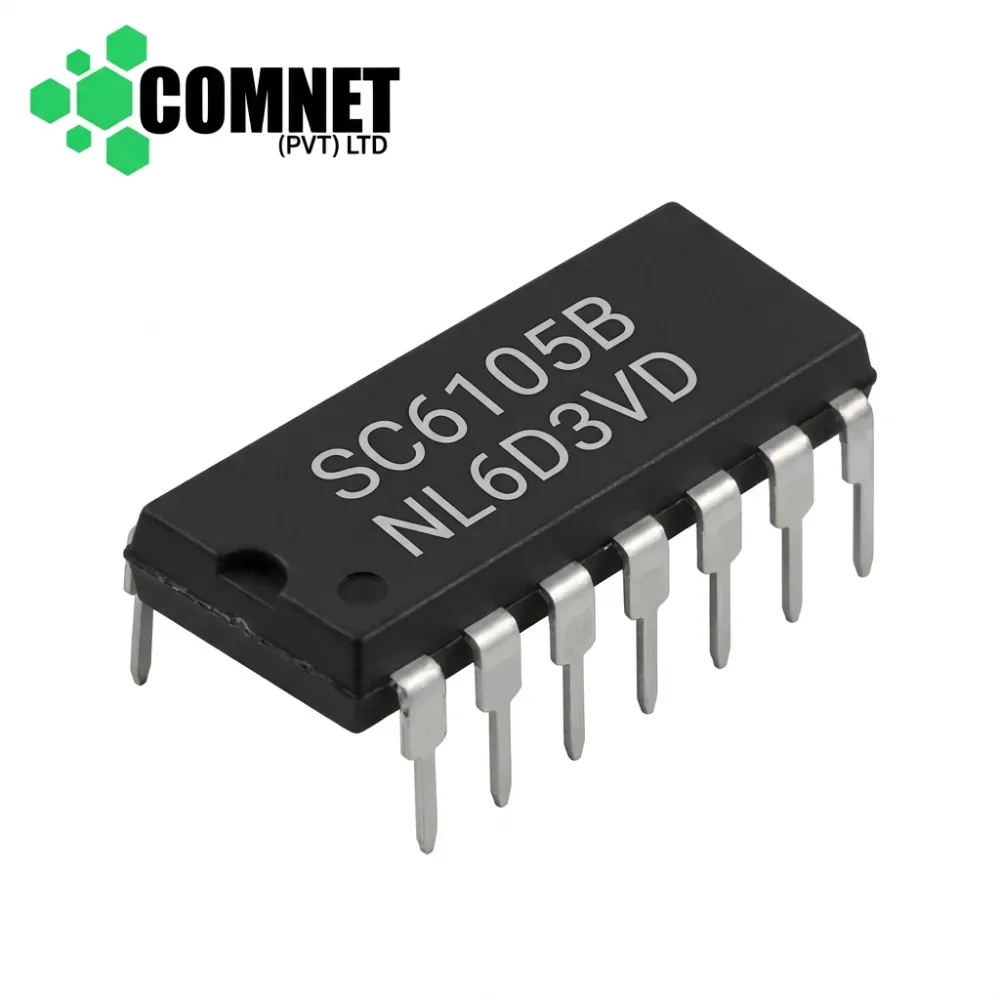

SC6105B IC
Product Title: SC6105B (Marking: SC6105B / NL6D3VD) PC Switched-Mode Power Supply PWM Controller IC (DIP-20 Through-Hole)
Product Specifications:
- Part Number / Marking: SC6105B (Top Marking: SC6105B / NL6D3VD / NL 3H6MD)
- Manufacturer:Silan Microelectronics
- Device Type:Voltage-Mode PWM Power Supply Controller with Built-in Supervisor & Protection
- Package / Case: DIP-20 (20-Pin Dual In-line Package, Through-Hole)
- Oscillator Switching Frequency:$65\text{ kHz}$ (Nominal, set via external resistor)
Short Description: High-integration Silan Microelectronics SC6105B (top marking: NL6D3VD) PWM switching power supply controller IC in a DIP-20 through-hole package. Specially designed for PC ATX switched-mode power supplies (SMPS) and industrial power adapters. Combines dual PWM push-pull output drivers, internal precision $2.5\text{V}$ shunt regulators, and a complete supervisory circuit for over-voltage, under-voltage, and short-circuit protection. Essential replacement chip for fixing PC power supplies with missing Power Good (PG) signals, auto-shutdown issues, dead 12V/5V rails, and boot failure
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
