S60N15R S60N15R-B S60N15 TRANSISTOR

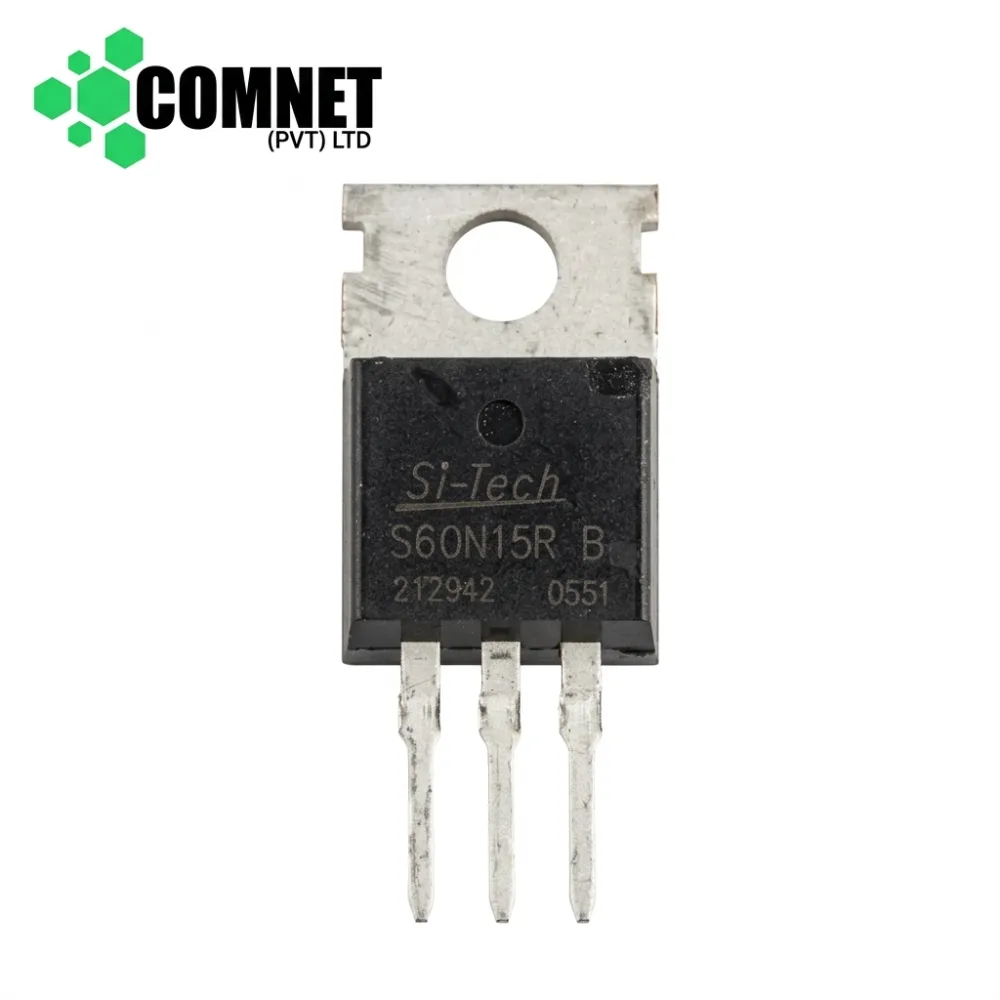

Product Title: S60N15R / S60N15R B (Marking: S60N15R B) 150V 60A N-Channel Power MOSFET Transistor (TO-220)
Product Specifications:
- Part Number: S60N15R / S60N15R-B / S60N15 (Top Marking Code: S60N15R B / Lot Tracking: e.g., 3Y2542 0551)
- Device Type: N-Channel Trench Power MOSFET
- Package / Case: TO-220 / TO-220AB (Through-Hole High Power Package)
- Pin Count: 3 Pins (Gate, Drain, Source)
- Drain-Source Voltage ($V_{DS}$): 150V
- Continuous Drain Current ($I_D$): 60A (at $T_C = 25^\circ\text{C}$)
- Pulsed Drain Current ($I_{DM}$): 240A
- Drain-Source On-State Resistance ($R_{DS(on)}$):$< 25\text{ m}\Omega$ (Typical) @ $V_{GS} = 10\text{V}$
- Gate-Source Voltage ($V_{GS}$):$\pm 20\text{V}$
- Gate Threshold Voltage ($V_{GS(th)}$): 2.0V to 4.0V
- Total Power Dissipation ($P_D$): 180W
- Operating Junction Temperature ($T_j$):$-55^\circ\text{C}\text{ to }+175^\circ\text{C}$
Short Description: High-power N-Channel Trench MOSFET S60N15R (top marking: S60N15R B) rated at 150V 60A in a heavy-duty TO-220 package. Characterized by low on-resistance ($R_{DS(on)}$), high switching speed, and superior ruggedness under heavy inductive loads. Extensively utilized in high-power DC-DC converters, motor controllers, electric bike/scooter controllers, solar charge controllers, UPS inverter output stages, and power supply switching circuits. Essential replacement component for repairing blown DC power switching rails, shorted motor driver output legs, and inverter main switching stages.
