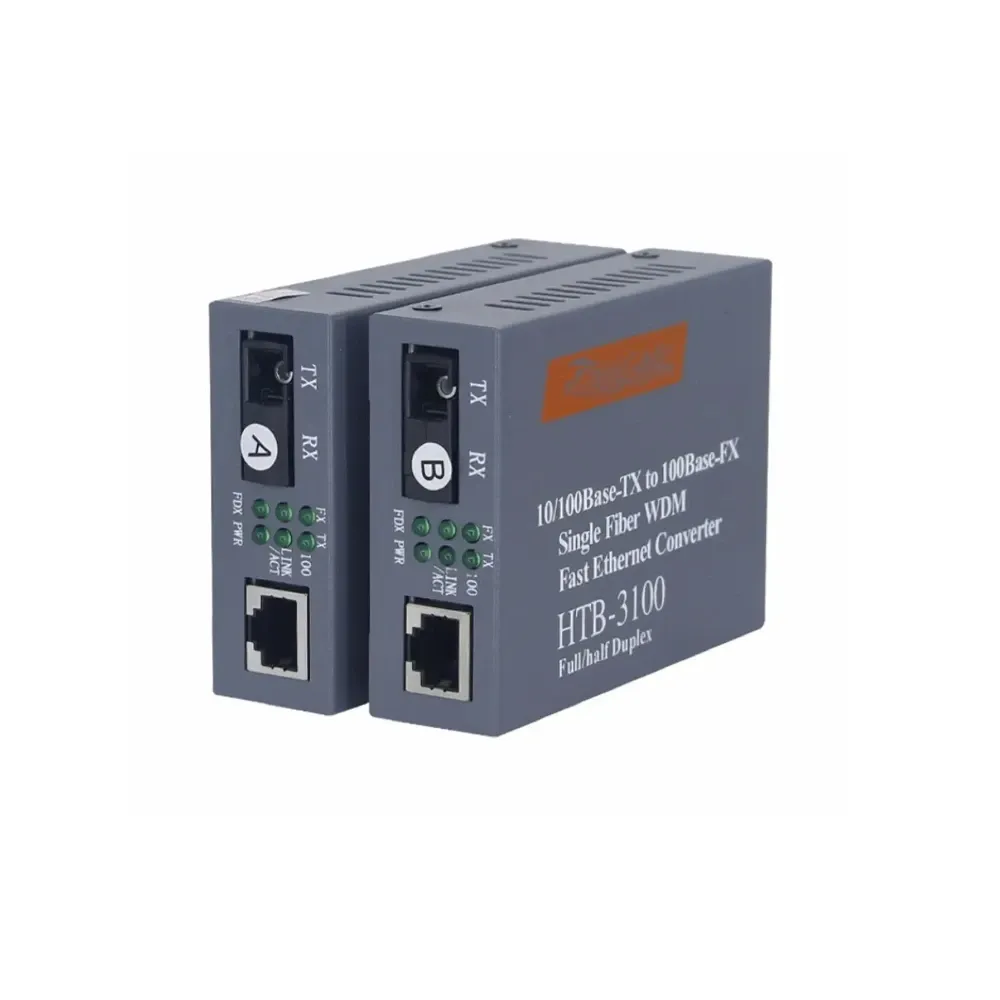

ETHERNET TO FIBER OPTIC DATA TRANSFER UNIT (HTB-3100) - 10/100M SINGLE-MODE SINGLE-FIBER WDM FIBER MEDIA CONVERTER
- Operating standards: IEEE802.3u, 10/100Base-TX and 100Base-FX
- UTP port supports MDI / MDI-X auto crossover
- Supporting flow control
- Supporting 1552 Byte packet
- Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex
- MAC address table: 1K
Connector:
- UTP: RJ-45 10/100Mbps;
- Fiber: SC 100Mbps
Cable:
- UTP: Cat. 5 UTP (the max distance up to 100m)
- Fiber(Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
Flow Control
- Full Duplex: IEEE802.3x
- Half Duplex: Backpressure
- LED: Power, FX 100, FX Link/Act, TX 100, TX FDX, TX Link/Act.
- Power: AC 110V - 220V to DC 5V; DC48V to DC 5V
- Ambient temperature:0 ~ 50℃
- Storage temperature:-20 ~ +70℃
- Humidity: 5% ~ 90%
Dimensions:
- Internal power: 30x110x140mm
- External power: 26x70x93mm
12,500.00 Rs
12,500.00 Rs
-
Hardware Warranty
