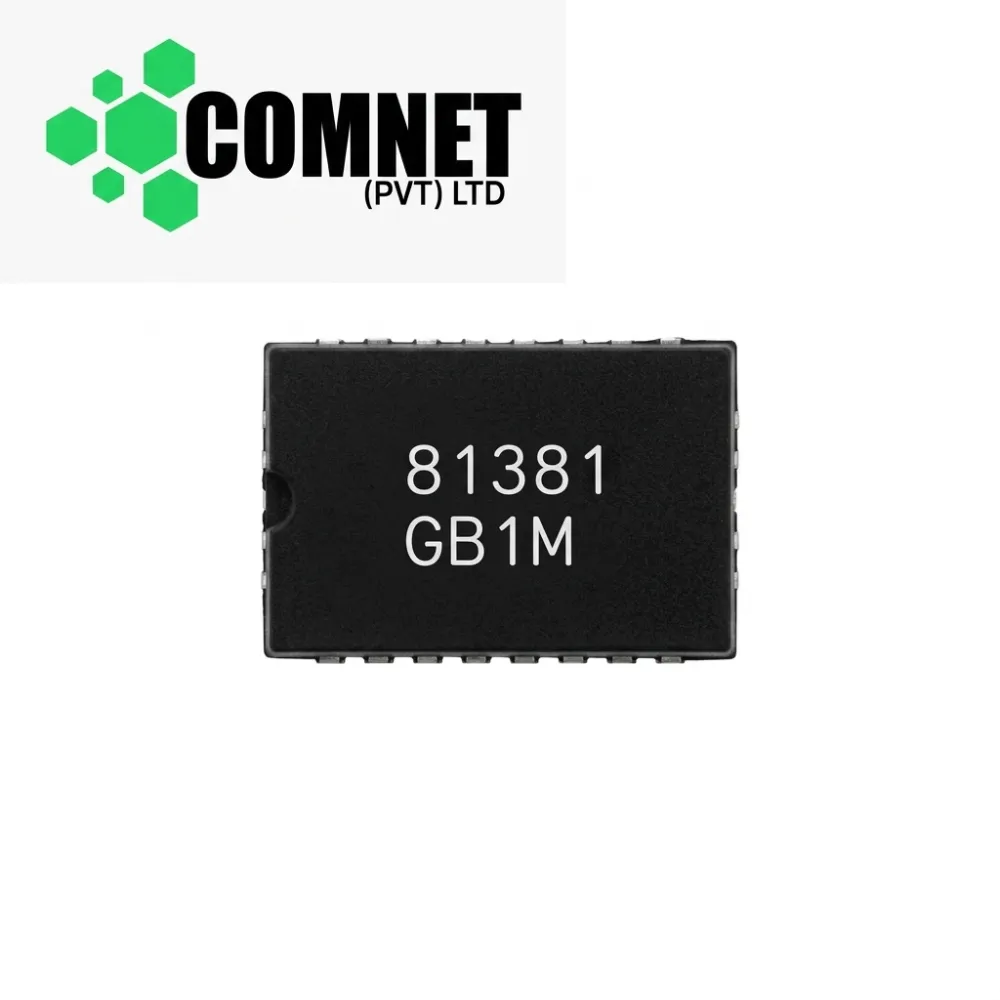

NCP81381 NCP81381MNTXG IC
Product Title: NCP81381 / NCP81381MNTXG (Marking: NCP81381) 50A High-Efficiency Integrated Driver and MOSFET (DrMOS) Power Stage IC (QFN-36 / QFN 5x5)
Product Specifications:
- Part Number: NCP81381 / NCP81381MNTXG (Top Marking Code: NCP81381 / Lot Tracking Code: e.g., GB1M)
- Device Type: High-Efficiency Integrated Driver and MOSFET (DrMOS) Power Stage Module
- Package / Case: QFN-36 / QFN 5x5mm (36-Pin Surface Mount with Exposed Thermal Pad)
- Pin Count: 36 Pins
- Input Supply Voltage ($V_{IN}$): 4.5V to 25V
- Driver Supply Voltage ($V_{DRV} / V_{CC}$): 4.5V to 5.5V
- Operating Temperature Range:$-40^\circ\text{C}\text{ to }+125^\circ\text{C}$
Short Description: High-performance ON Semiconductor NCP81381 (top marking: NCP81381) 50A integrated DrMOS power stage IC in a 36-pin 5x5mm QFN package. Optimized for multi-phase CPU core voltage supplies ($V_{CORE}$, $V_{CCGT}$, $V_{CCSA}$) and GPU power rails on modern gaming laptops, desktop motherboards, and server boards. Integrates driver circuitry, high-side, and low-side power MOSFETs into a single thermal-enhanced module, delivering exceptional thermal performance and power efficiency. Essential replacement component for repairing laptop CPU/GPU power supply short circuits, fixing missing core voltage rails, and replacing burnt DrMOS power modules.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
