MAX17435ETG MAX17435 MAX17435ETG+T IC
Product Title: MAX17435ETG / MAX17435 (Marking: 17435E) High-Frequency SMBus Battery Charger IC (TQFN-24)
Product Specifications:

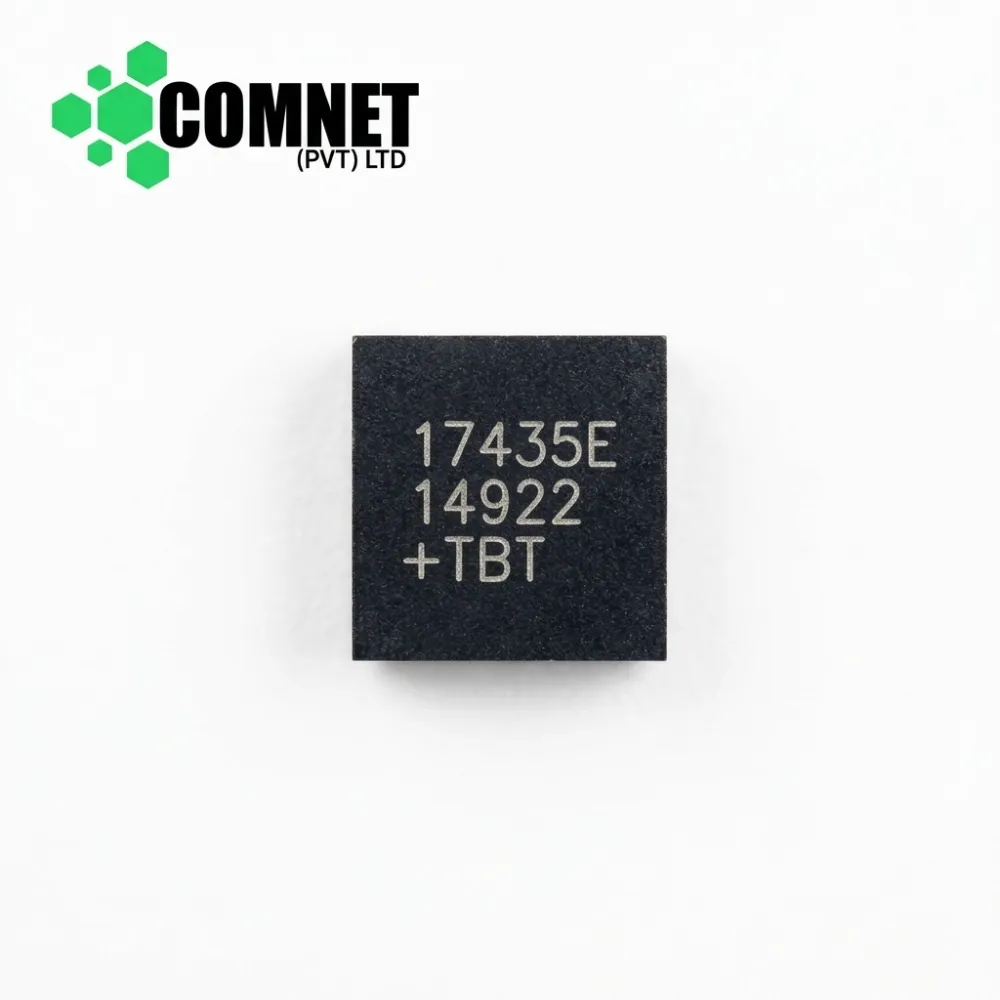

- Part Number: MAX17435ETG / MAX17435ETG+T (Top Marking Code: 17435E / Lot Tracking Code: e.g., 14922 +TBT)
- Device Type: High-Frequency Multi-Chemistry SMBus Battery Charger Controller
- Package / Case: TQFN-24 / QFN-24 (4x4mm Surface Mount with Exposed Pad)
- Pin Count: 24 Pins
- Battery Cell Count: 2-Cell, 3-Cell, or 4-Cell Li-Ion / Li-Polymer Batteries
- Input Voltage Range ($V_{IN}$): 4.75V to 26V
- Switching Frequency: High-Frequency $850\text{ kHz}$ Switching Frequency (Allows smaller inductors)
- Operating Temperature Range:$-40^\circ\text{C}\text{ to }+85^\circ\text{C}$
Short Description: High-performance Maxim Integrated MAX17435ETG (top marking: 17435E) high-frequency SMBus battery charger controller IC in a 24-pin TQFN package. Designed for 2 to 4 cell Li-ion battery charging circuits in laptops, netbooks, and portable electronic systems. Features an integrated $850\text{ kHz}$ high-speed synchronous buck controller to deliver up to $97\%$ efficiency with minimal thermal footprint. Communicates directly with the system Embedded Controller (EC) via SMBus. Essential replacement part for component-level repair of laptop battery charging circuits, fixing "Plugged In, Not Charging" errors, resolving missing ACOK signals, and replacing damaged charger ICs.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
