LM358P LM358 IC

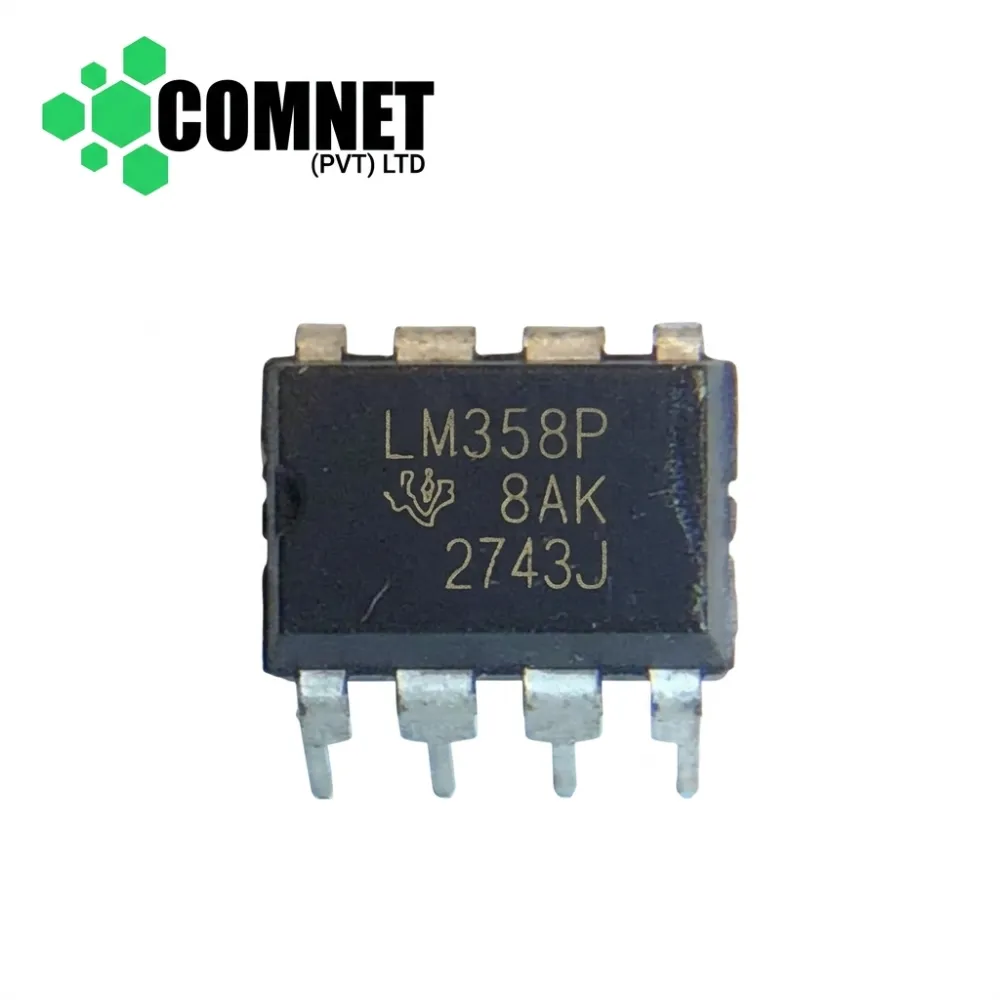

Product Title: LM358P (Marking: LM358P) Dual Low-Power Operational Amplifier IC (DIP-8)
Product Specifications:
- Part Number: LM358P / LM358 (Top Marking Code: LM358P / Lot Tracking Code: e.g., 8AK 2743J)
- Device Type: Low-Power Dual Operational Amplifier
- Package / Case: DIP-8 / PDIP-8 (Through-Hole High Reliability Package)
- Pin Count: 8 Pins
- Channels: Dual Channel (2 Independent Op-Amps in one package)
- Supply Voltage Range ($V_{CC}$): Single Supply: $3\text{V}$ to $32\text{V}$ / Dual Supply: $\pm 1.5\text{V}$ to $\pm 16\text{V}$
- Low Supply Current Drain:$500\:\mu\text{A}$ (Typical, independent of supply voltage)
- Gain Bandwidth Product (GBP): 1 MHz
- Input Offset Voltage:$2\text{ mV}$ (Typical)
- Common-Mode Input Voltage Range: Includes Ground ($0\text{V}$)
- Output Voltage Swing:$0\text{V}$ to $V_{CC} - 1.5\text{V}$
- Operating Junction Temperature ($T_j$):$0^\circ\text{C}\text{ to }+70^\circ\text{C}$
Short Description: Industry-standard Texas Instruments LM358P (top marking: LM358P) dual low-power operational amplifier IC in an 8-pin DIP through-hole package. Consists of two independent, high-gain, internally frequency-compensated operational amplifiers designed to operate from a single power supply over a wide voltage range. Widely used in sensor interfaces, DC gain blocks, active filters, transducer amplifiers, power supply control circuits, and general analog signal processing. Essential replacement part for component-level repair of power supplies, audio pre-amplifiers, battery management boards, and industrial control electronics.
IC උපාන්ග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය
පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ්
අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත
පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ.
1.00 Rs
1.00 Rs
-
