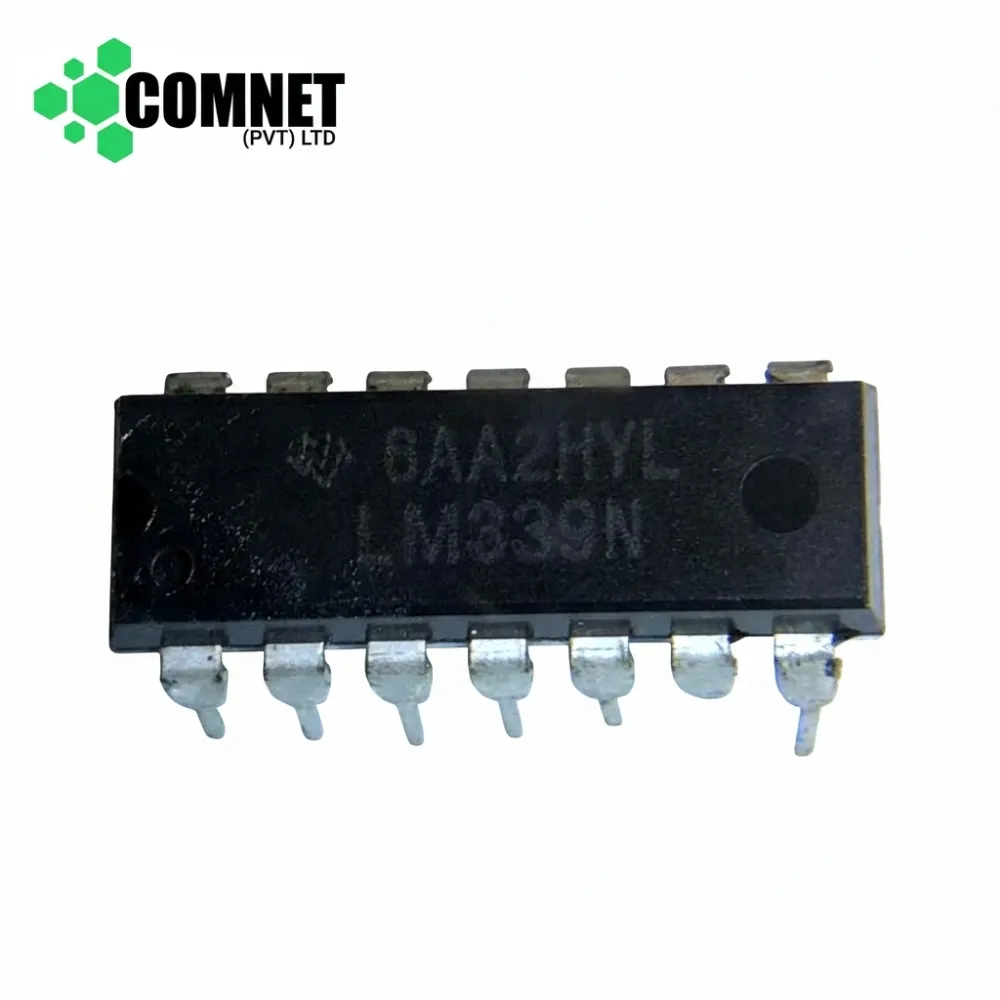

LM339N LM339 IC
Product Title: LM339N (Marking: LM339N) Low-Power Quad Voltage Comparator IC (DIP-14)
Product Specifications:
- Part Number: LM339N / LM339 (Top Marking Code: LM339N / Lot Tracking Code: e.g., 6AA2HYL)
- Device Type: Low-Power Quad Independent Voltage Comparator
- Package / Case: DIP-14 (Through-Hole High Reliability Package)
- Pin Count: 14 Pins
- Channels: 4 Independent Voltage Comparators
- Supply Voltage Range ($V_{CC}$): Single Supply: $2\text{V}$ to $36\text{V}$ / Dual Supply: $\pm 1\text{V}$ to $\pm 18\text{V}$
- Low Supply Current Drain:$0.8\text{ mA}$ (Typical, independent of supply voltage)
- Input Offset Voltage:$2\text{ mV}$ (Typical)
- Output Type: Open-Collector (Allows wired-OR connections)
- Response Time:$1.3\:\mu\text{s}$
- Common-Mode Input Voltage Range: Includes Ground ($0\text{V}$)
Short Description: Industry-standard LM339N (top marking: LM339N) quad voltage comparator IC in a 14-pin DIP through-hole package. Integrates four independent voltage comparators designed specifically to operate from a single power supply over a wide range of voltages, with low power consumption. Features open-collector outputs for easy level translation and logic interfacing. Extensively used in power supply monitoring, over-voltage/under-voltage protection circuits, industrial control systems, analog-to-digital sensor interfaces, and automotive electronics. Essential replacement part for repairing power supply sensing stages, charger control boards, and industrial power equipment.
IC උපාන්ග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය
පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ්
අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත
පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ.
1.00 Rs
1.00 Rs
-
