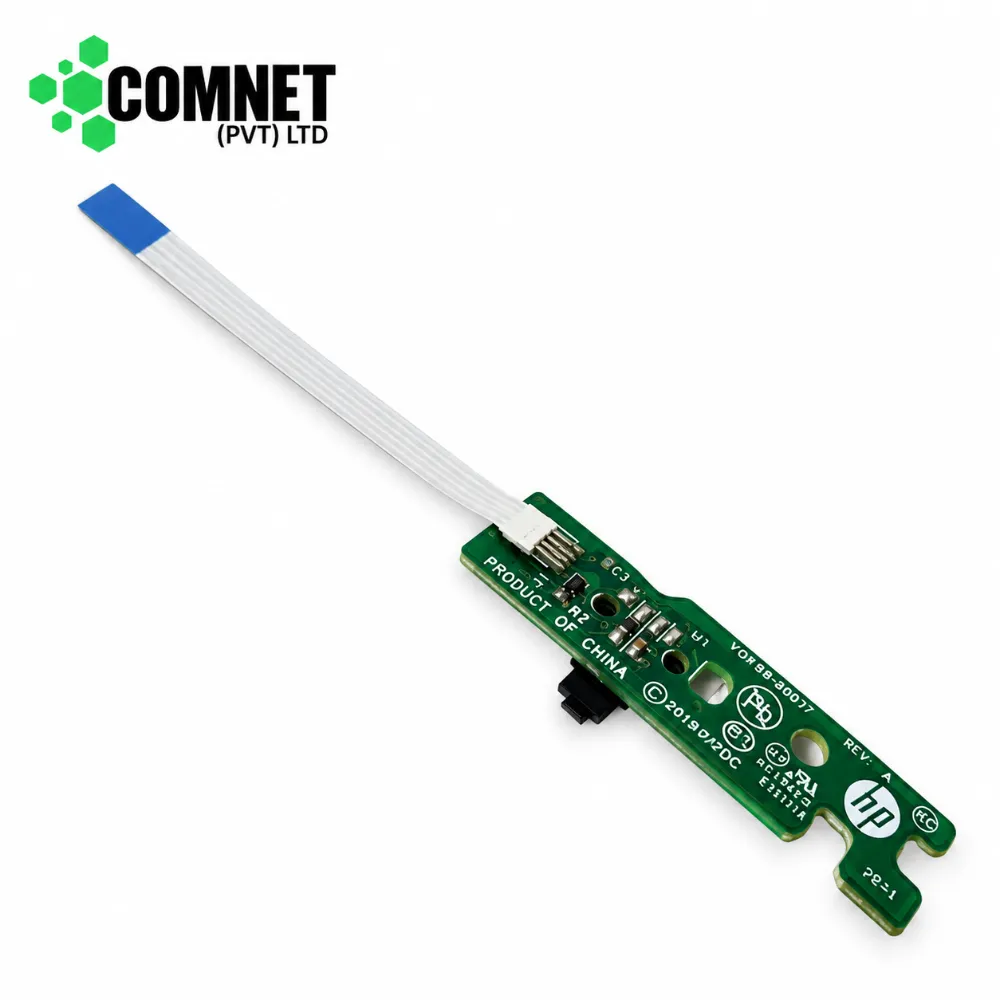

HP INKTANK 511 518 516 ENCODER DISK SENSOR
Product Title: Paper Feed Disc Encoder Sensor Reader Board for HP Smart Tank / Ink Tank 511, 515, 516, 518, 519, 530, 615 Series (Part No: Y0F68-80037)
Product Specifications:
- Part Number / OEM MPN: Y0F68-80037, Y0F68-60001, Y0F68-80001
- Device Type: Rotary Disc Encoder Optical Sensor Reader Board / Paper Feed Timing Sensor
- Sensor Mechanism: Dual-Channel Optical Transmissive Photo-Interrupter Sensor
- Connection Interface: Integrated Flexible Flat Cable (FFC Ribbon Cable)
- Operating Voltage ($V_{CC}$):$+3.3\text{V DC}$ to $+5.0\text{V DC}$ Signal Voltage
- Primary Function: Reads the transparent timing wheel/encoder disk (circular encoder) to detect paper feed shaft rotation speed, paper position tracking, and main motor timing synchronization
- Operating Temperature Range:$5^\circ\text{C}\text{ to }45^\circ\text{C}$
Short Description: Replacement paper feed disc encoder optical sensor reader board (OEM Part No: Y0F68-80037) with integrated ribbon cable for HP Smart Tank / Ink Tank 511, 515, 516, 518, 519, 530, and 615 series printers. Reads the fine lines printed on the circular transparent encoder disc mounted on the main paper feed roller shaft. Essential replacement part for resolving paper feed jams, "Paper Jam / E3 Error" codes, paper alignment shifting, misaligned horizontal print lines, and optical sensor read failures caused by ink splash or dust accumulation.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
1.00 Rs
1.00 Rs
-
