G5016KD1U G5016 IC

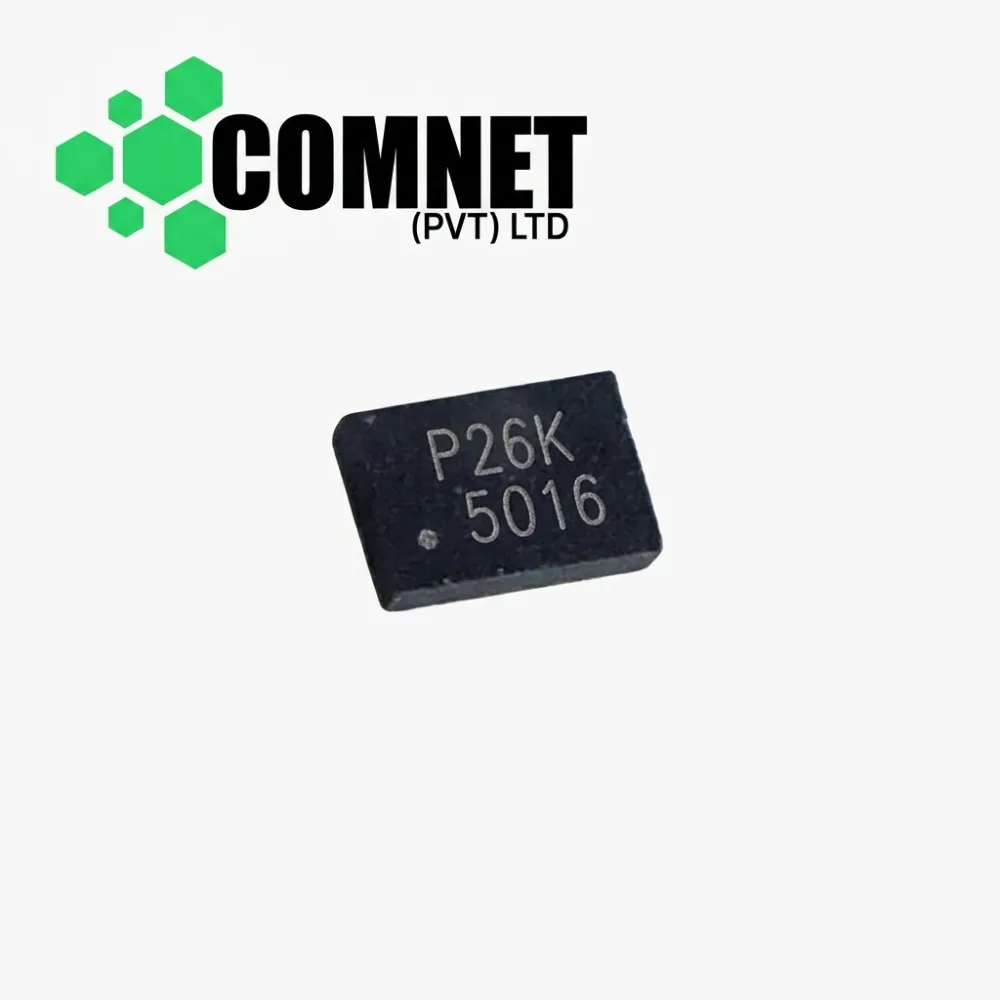

Product Title: G5016KD1U / 5016 (Marking: 5016 / P26K) Single Channel Load Switch IC with Controlled Slew Rate (DFN10 / TDFN-10 3x3)
Product Specifications:
- Part Number: G5016KD1U / G5016 (Top Marking Code: 5016 / Lot Tracking Code: e.g., P26K)
- Device Type: Ultra-Low $R_{DS(on)}$ N-Channel MOSFET Power Distribution Load Switch IC
- Package / Case: DFN-10 / TDFN-10 (3x3mm Surface Mount)
- Pin Count: 10 Pins (with Thermal Pad)
- Input Voltage Range ($V_{IN}$): 0.8V to 5.5V
- Bias Voltage Range ($V_{BIAS}$): 2.5V to 5.5V
- Continuous Current Rating ($I_{OUT}$): Up to 6A
- On-Resistance ($R_{DS(on)}$): Extremely low $R_{DS(on)}$ (~12mΩ Typical at $V_{BIAS} = 5\text{V}$)
- Control Features: Enable (EN) Input pin, Controlled Slew Rate to eliminate inrush current, Quick Output Discharge (QOD) function
Short Description: High-efficiency GMT G5016KD1U (top marking: 5016) integrated single-channel 6A power load switch IC in a 10-pin 3x3 DFN package. Designed for modern laptop motherboards, tablet power rails, and solid-state drives (SSDs) to manage power distribution rails ($V_{CC}$ / $V_{DD}$ power gating) with ultra-low voltage drops. Features controlled turn-on soft-start logic to prevent power rail voltage dips caused by high inrush currents. Essential component replacement for repairing laptop motherboard power distribution faults, fixing secondary power rail failure (missing +3V/+5V switched rails), and restoring power to dead motherboard power stages.
IC උපාන්ග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය
පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ්
අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත
පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ.
1.00 Rs
1.00 Rs
-
