FAN7390 FAN7390M FAN7390MX IC

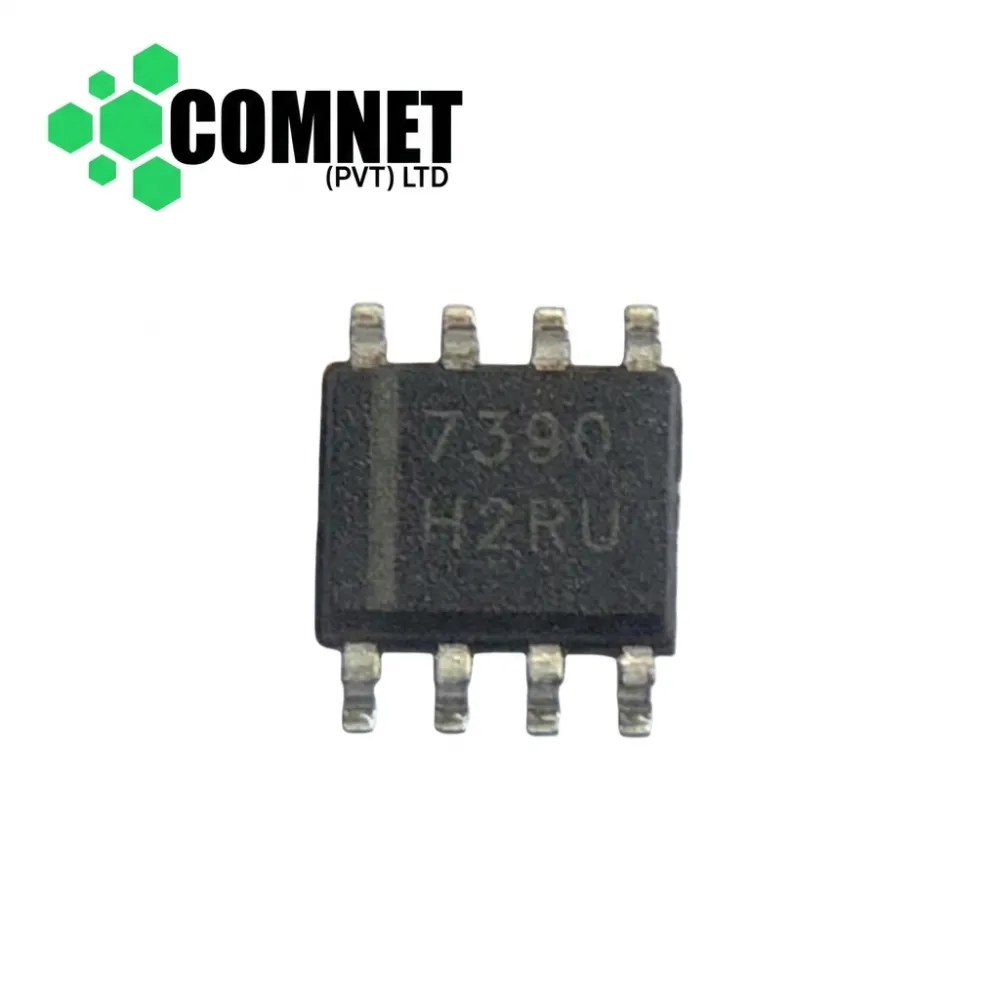

Product Title: FAN7390 / FAN7390M (Marking: FAN7390) High-Current High and Low-Side Gate Driver IC (SOP-8)
Product Specifications:
- Part Number: FAN7390 / FAN7390M / FAN7390MX (Top Marking Code: FAN7390 / Lot Tracking: e.g., H2RU)
- Device Type: High-Speed, High-Voltage High and Low-Side Gate Driver IC
- Package / Case: SOP-8 / SOIC-8 (Surface Mount)
- Pin Count: 8 Pins
- High-Side Floating Supply Voltage ($V_B$): Up to $600\text{V}$
- Output Current Capability:$4.5\text{A}$ Source / $4.5\text{A}$ Sink (Peak Output Current)
- Gate Drive Supply Voltage ($V_{DD} / V_{BS}$):$10\text{V}$ to $20\text{V}$
- Logic Input Voltage Range:$3.3\text{V}$ to $15\text{V}$ (3.3V / 5V Logic Compatible)
- Matched Propagation Delay:$< 50\text{ ns}$ Max
- Built-in Protection: Under-Voltage Lockout (UVLO) for both High-Side and Low-Side Channels
- Propagation Delay Matching:$< 15\text{ ns}$
- Operating Junction Temperature ($T_j$):$-40^\circ\text{C}\text{ to }+125^\circ\text{C}$
Short Description: High-performance ON Semiconductor/Fairchild FAN7390 (top marking: FAN7390) high-voltage, high-speed MOSFET and IGBT gate driver IC in an 8-pin SOP package. Features floating high-side channel operation capable of driving power devices up to 600V with a powerful 4.5A peak sourcing and sinking capability. Advanced noise immunity ($dV/dt$) and matched propagation delays ensure highly efficient, reliable power switching. Widely used in motor control inverters, induction heaters, solar inverters, high-power SMPS, and class-D audio amplifiers. Essential component replacement for repairing blown gate drive stages, shorted inverter output boards, and motor controller mainboards.
