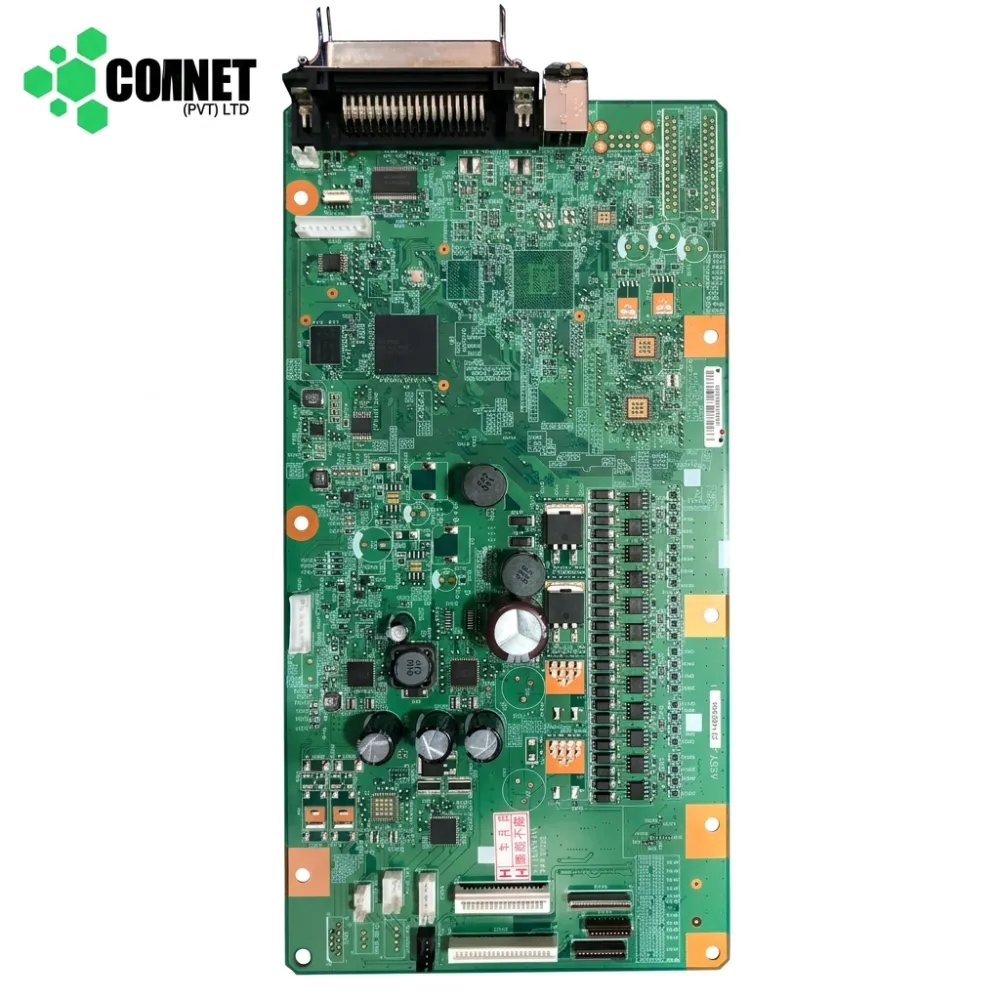

EPSON PLQ35 FORMATTER BOARD

• Part Number / OEM MPN: 2182065, 2182065-01, 2182065-02
• Device Type: Passbook Printer Main Logic Board / Formatter PCA Assembly
• Compatible Printer Model: Epson PLQ-35 / PLQ-35M 24-Pin Passbook Dot Matrix Printer
• Built-in Memory (Data Buffer): 128 KB Integrated Input Data Buffer
• Supported I/O Interfaces (Built-in Ports):

• USB 2.0 High-Speed

• Bi-directional Parallel Interface (IEEE-1284)

• Serial Interface (RS-232C)

• Logic Voltage Supply ($V_{CC}$):$+5\text{V DC}$ Logic Line

• Motor & Drive Voltage ($V_{M}$):$+42\text{V DC}$ Head Drive / Stepper Motor Line

• Board Functions: Passbook Alignment & Optical Sensor Processing, 24-Pin Print Head Firing Logic, Carriage & Paper Feed Motor Drive Controls, USB/Serial/Parallel Communication Management, Status LED Logic & Firmware Execution

• Operating Temperature Range:$5^\circ\text{C}\text{ to }35^\circ\text{C}$

Short Description: Genuine Epson PLQ-35 passbook printer main logic board / formatter board (OEM Part No: 2182065). Engineered to control 24-pin print head actuation, high-precision passbook alignment sensors, and dual stepper motor drivers. Direct OEM replacement board for resolving "Power-On Boot Freeze", USB/Serial communication loss, damaged print head channels, sensor reading faults, and dead motherboard failures in bank passbook printing equipment.

IC  උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
