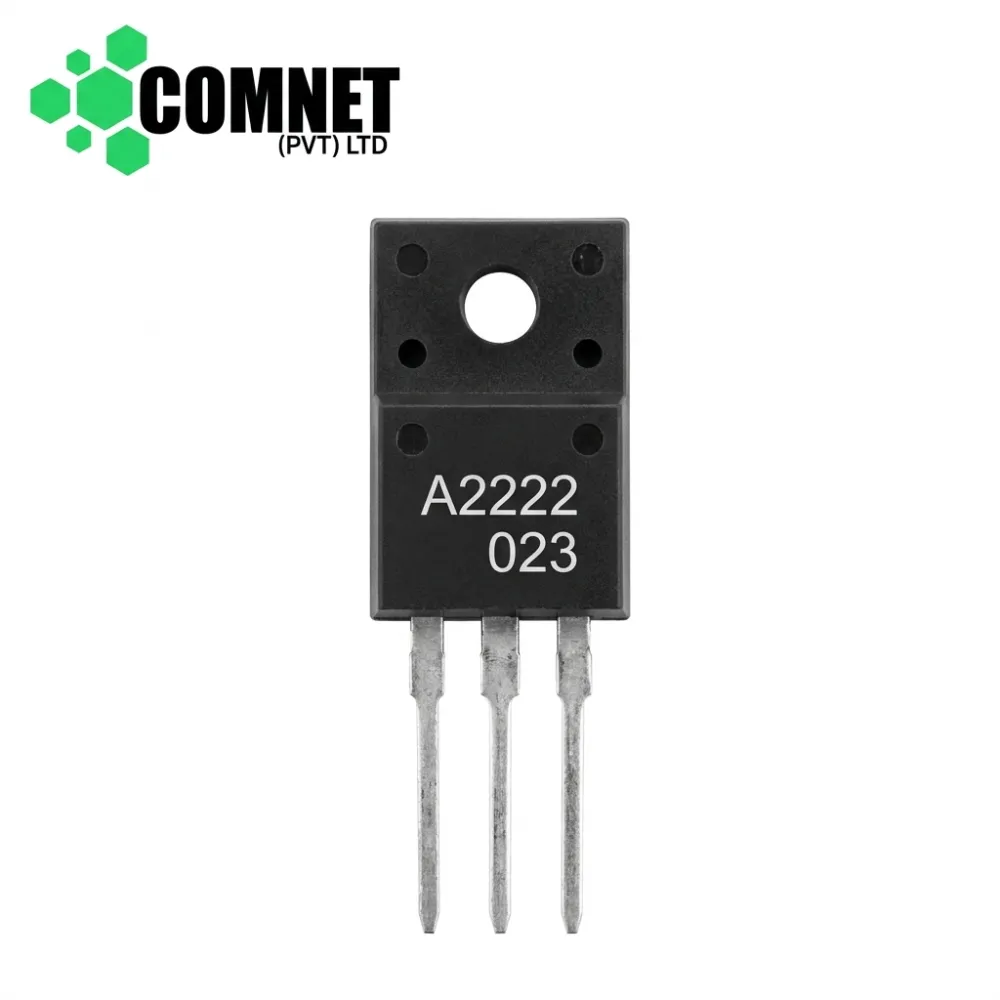

2SA2222 TRANSISTOR
- Part Number / Top Marking: 2SA2222 (Top Marking: A2222 / 023)
- Manufacturer: Sanken Electric / Independent Semiconductor
- Device Type: High-Speed PNP Silicon Epitaxial Planar Switching Power Transistor
- Package / Case: TO-220F / TO-220FP (Fully Isolated Plastic Package, 3-Pin Through-Hole)
- Pin Configuration: 1-Base, 2-Collector, 3-Emitter (BCE)
- Base Current ($I_B$):$-2\text{A}$
Primary Applications: Epson Inkjet Printer Main Board Printhead Drivers (Complementary NPN pair: 2SC6144 / C6144), High-Current DC-DC Converters, Motor Drivers, High-Speed Power Switches
Operating Junction Temperature Range: $-55^\circ\text{C}\text{ to }+150^\circ\text{C}$
Short Description: High-speed 2SA2222 / A2222 PNP power transistor in an isolated TO-220F through-hole package. Designed for high-current switching applications and printer mainboard drive circuits. Frequently paired with the 2SC6144 (C6144) NPN transistor on Epson printer motherboards to drive printhead nozzle arrays. Critical replacement component for fixing blown mainboard printhead driver circuits, fatal printer power errors, blank page output, and shorted power transistors.
IC උපාංග සහ Parts නැවත බර ගනු නොලැබේ | හුවමාරුවක් නැත | වගකීමක් නැත | මුදල් ආපසු ගෙවීමක් නැත කරුණාකර ඔබගේ අංකය පරීක්ෂා කර එය ඔබගේ පවතින නිෂ්පාදනය සමඟ ගලපන්න. ඔබ මෙම නිෂ්පාදනය අපගේ වෙබ් අඩවියෙන් මිලදී ගෙන එය මවු පුවරුවේ සවි කළ විට, එය ඔබේම අවදානම මත පවතිනු ඇත. කිසිදු දෝෂයකට අප වග කියනු නොලැබේ
-
